JBL Control 426LP 6.5" Enhanced Low-Profile Ceiling Speaker – Set of 2, Sold Individually
JBL Control 426LP 6.5" Enhanced Low-Profile Ceiling Speaker – Set of 2, Sold Individually is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
JBL Control 426LP 6.5" Enhanced Low-Profile Ceiling Speaker – ...

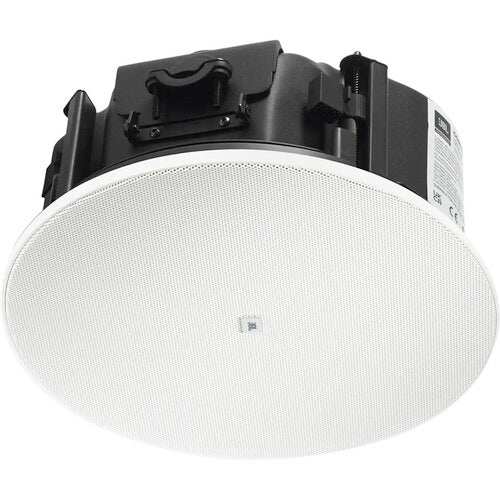

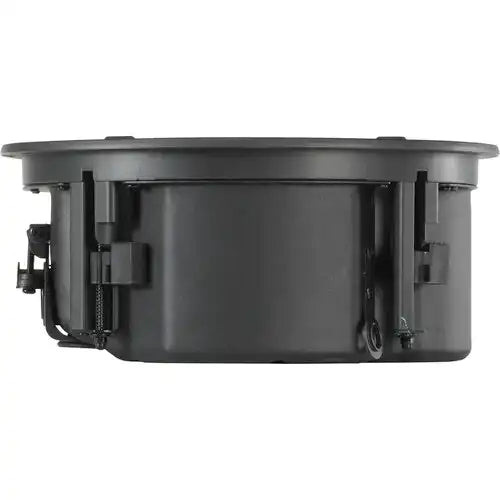

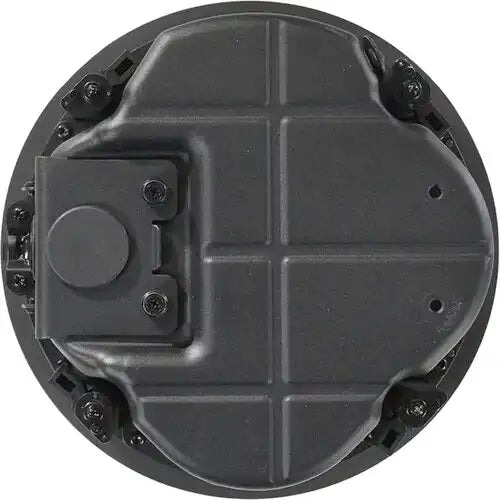

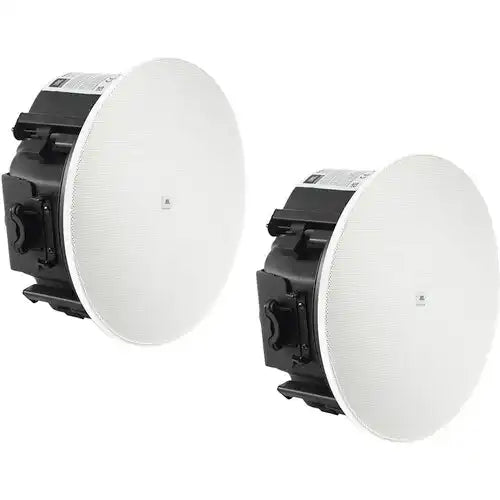

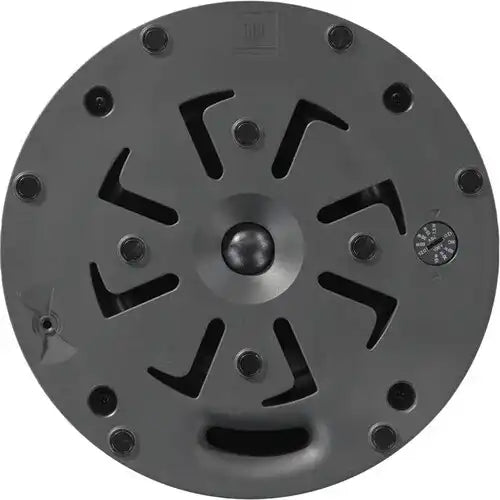

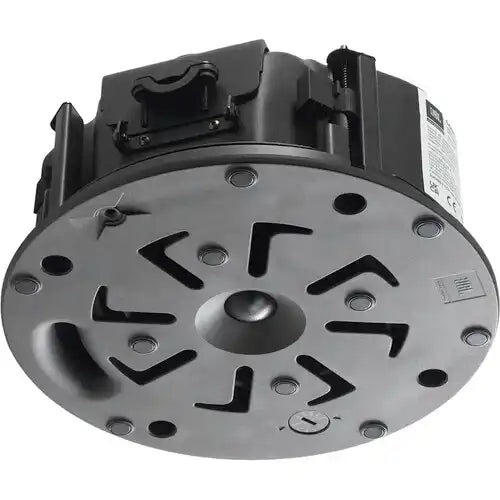

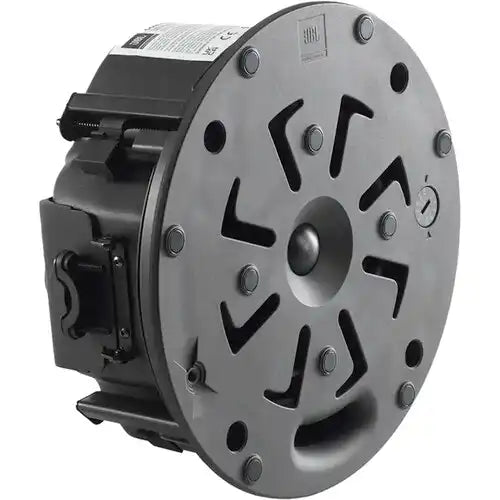

The JBL Control 426LP delivers high-performance, two-way sound in a low-profile ceiling-mounted design, ideal for commercial spaces with restricted plenum heights. Featuring a 6.5” woofer and coaxial 1” soft-dome tweeter, the 426LP provides rich, full-range audio coverage with JBL’s proprietary Coplanar Radiation Boundary Integrator™ (CRBI™) technology for uniform 110° sound dispersion. Its sleek full-face magnetic grille blends seamlessly with modern interiors, while optional black and square grilles offer additional design flexibility.
Key Features
-
Low-profile enclosure (<100 mm deep) ideal for restricted plenum spaces
-
Coaxial 6.5” woofer and 1” textile soft-dome tweeter
-
CRBI™ technology ensures consistent, full, and rich sound across wide coverage areas
-
Built-in 70V/100V multi-tap transformer plus 12-ohm low-impedance direct input
-
Full-face, paintable magnetic grille; optional black and square grilles available
-
Redesigned terminal covers with top and side cable entry for flexible installation
-
Robust, adaptable dogear design accommodates a wide range of ceiling thicknesses
-
IP33-rated for dust and moisture resistance
Specifications
| Specification | Detail |
|---|---|
| Frequency Range (-10 dB) | 95 Hz – 19 kHz |
| Power Capacity | 110 W RMS (440 W Peak), 2 hr Continuous Pink Noise |
| Sensitivity (1m/1W) | 89 dB |
| Coverage Angle | 110° conical |
| Maximum SPL (1m) | 109 dB continuous, 115 dB peak |
| Nominal Impedance | 12Ω |
| Transformer Taps | 70V: 60 W, 30 W, 15 W, 7.5 W / 100V: 60 W, 30 W, 15 W |
| Drivers | LF: 165 mm (6.5 in) treated paper cone, HF: 25 mm (1 in) textile soft-dome |
| Ceiling Cutout Size | 223 mm (8.8 in) |
| Dimensions | 107 mm H x 253 mm dia. |
| Depth from Tile Bottom | 98 mm |
| Environmental | IP33 per EN/IEC 60529 |
| Operating Temperature | 0°C – 45°C |
| Net Weight (ea) | 3.9 kg (8.6 lbs) |
| Shipping Weight (pair) | 12.58 kg (27.73 lbs) |
Optional Accessories
-
JBL-MTC-426BG Black Round Grille
-
JBL-MTC-426SG White Square Grille
-
JBL-MTC-426NC New Construction Bracket
-
JBL-MTC-426MR Mud-Ring Construction Bracket
-
JBL-MTC-48TRX4 Tile Rail for 4' x 4' Ceiling Tiles
