JBL Control 426C/T-LS 6.5" CRBI™ Two-Way Ceiling Loudspeaker – Life Safety Rated
JBL Control 426C/T-LS 6.5" CRBI™ Two-Way Ceiling Loudspeaker – Life Safety Rated is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
JBL Control 426C/T-LS 6.5" CRBI™ Two-Way Ceiling Loudspeaker –...

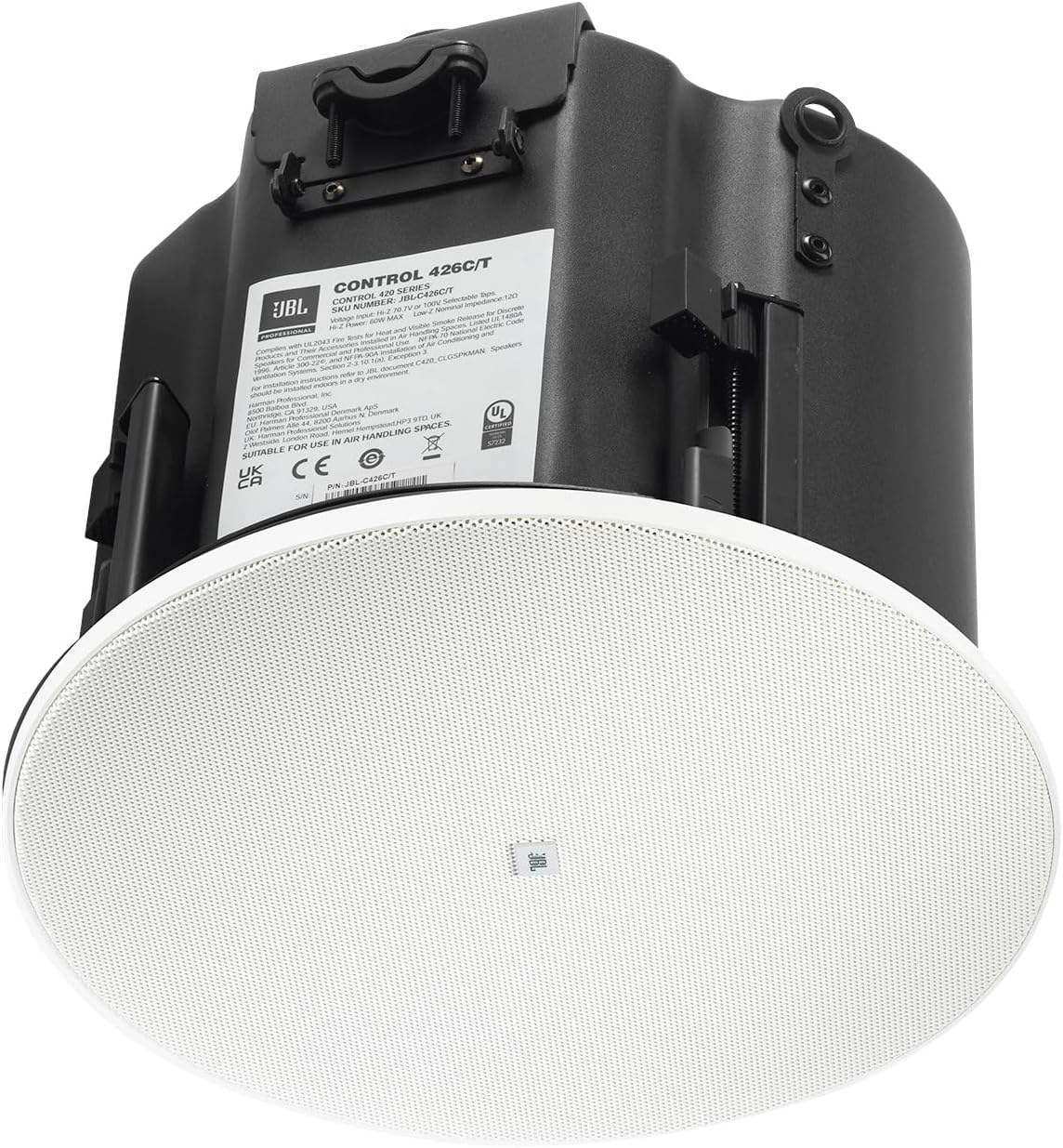

The JBL Control 426C/T-LS is a high-performance, two-way coaxial ceiling loudspeaker engineered for commercial spaces requiring life-safety compliance. Featuring a 6.5” woofer and coaxial 1” soft-dome tweeter, this loudspeaker delivers full, consistent 110° coverage with JBL’s proprietary Coplanar Radiation Boundary Integrator™ (CRBI™) technology. Certified to the UL1480 Standard, the Control 426C/T-LS is ideal for fire alarm and emergency signaling systems while maintaining sleek, modern aesthetics. Its integrated enclosure fits most ceiling plenums, and full-face magnetic grilles, along with optional black and square grilles, ensure seamless integration with contemporary interiors.
Key Features
-
UL1480 Standard certified for fire alarm and life-safety applications
-
Integrated 6.5” woofer and 1” soft-dome tweeter for full-range sound
-
CRBI™ technology ensures consistent 110° coverage across the listening area
-
Built-in 70V/100V multi-tap transformer plus 12-ohm low-impedance direct input
-
Full-face magnetic grille with optional black or square grille accessories
-

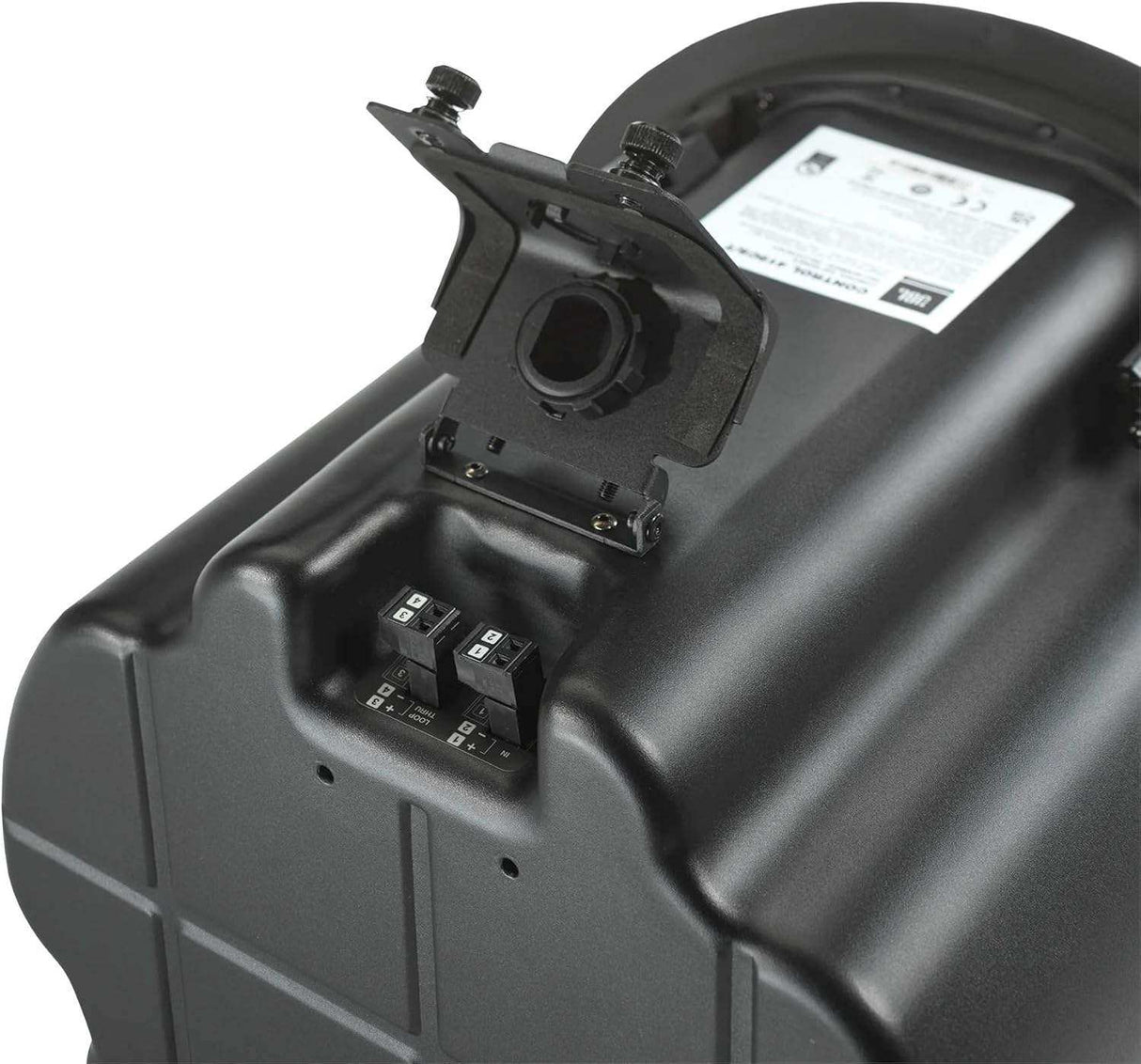

Top and side cable entry options for flexible installation
-

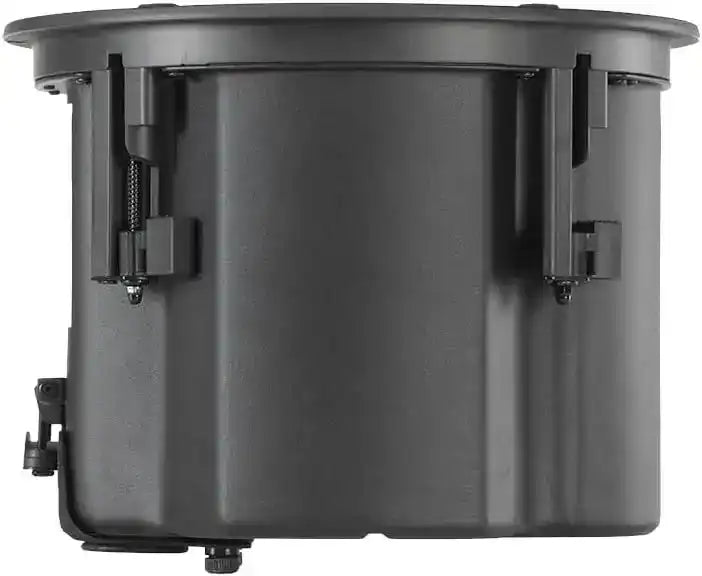

Robust dogear mounting design accommodates various ceiling thicknesses
-
IP33-rated for moisture and dust resistance
-
Includes grille, C-ring, and tile rails
Specifications
| Specification | Detail |
|---|---|
| Frequency Range (-10 dB) | 72 Hz – 19 kHz |
| Power Capacity | 110 W RMS (440 W Peak), 2 hr Continuous Pink Noise |
| Sensitivity (1m/1W) | 89 dB |
| Coverage Angle | 110° conical |
| Maximum SPL (1m) | 109 dB continuous, 115 dB peak |
| Nominal Impedance | 12Ω |
| Transformer Taps | 70V: 60 W, 30 W, 15 W, 7.5 W / 100V: 60 W, 30 W, 15 W |
| Drivers | LF: 165 mm (6.5 in) treated paper cone, HF: 25 mm (1 in) textile soft-dome |
| Ceiling Cutout Size | 223 mm (8.8 in) |
| Dimensions | 190 mm H x 253 mm dia. |
| Depth from Tile Bottom | 181 mm |
| Safety Agency Rating | UL1480, UL1480A, CAN/ULC-S541; suitable for air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 |
| Environmental | IP33 per EN/IEC 60529 |
| Operating Temperature | 0°C – 45°C |
| Net Weight (ea) | 4.2 kg (9.3 lbs) |
| Shipping Weight (pair) | 13.48 kg (29.73 lbs) |
Optional Accessories
-
JBL-MTC-426BG-LS Black Round Grille
-
JBL-MTC-426SG-LS White Square Grille
-
JBL-MTC-426NC New Construction Bracket
-
JBL-MTC-426MR Mud-Ring Construction Bracket
-
JBL-MTC-48TRX4 Tile Rail for 4' x 4' Ceiling Tiles
