JBL Control 412C/T-VA – 3" Full-Range Ceiling Loudspeaker, EN5...

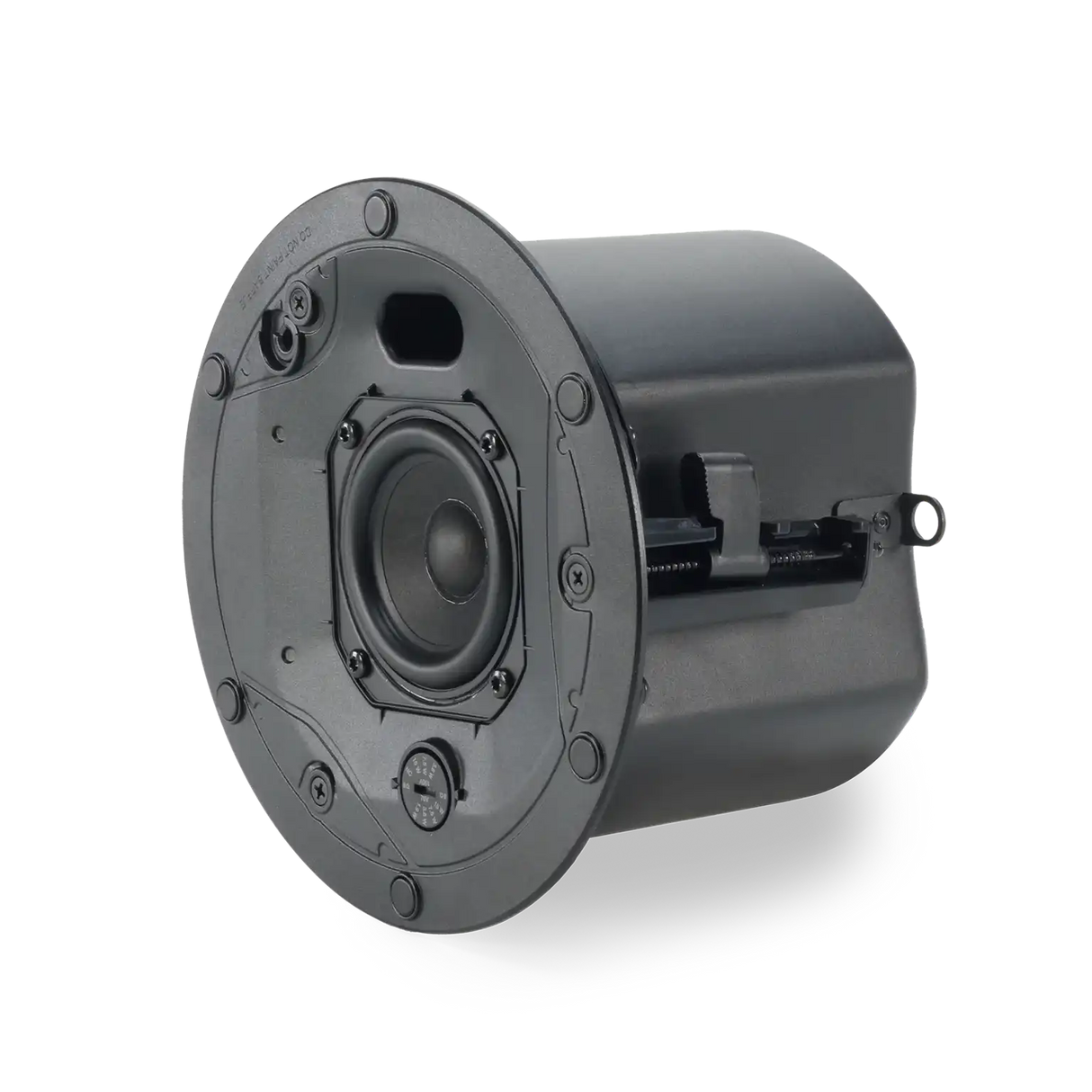

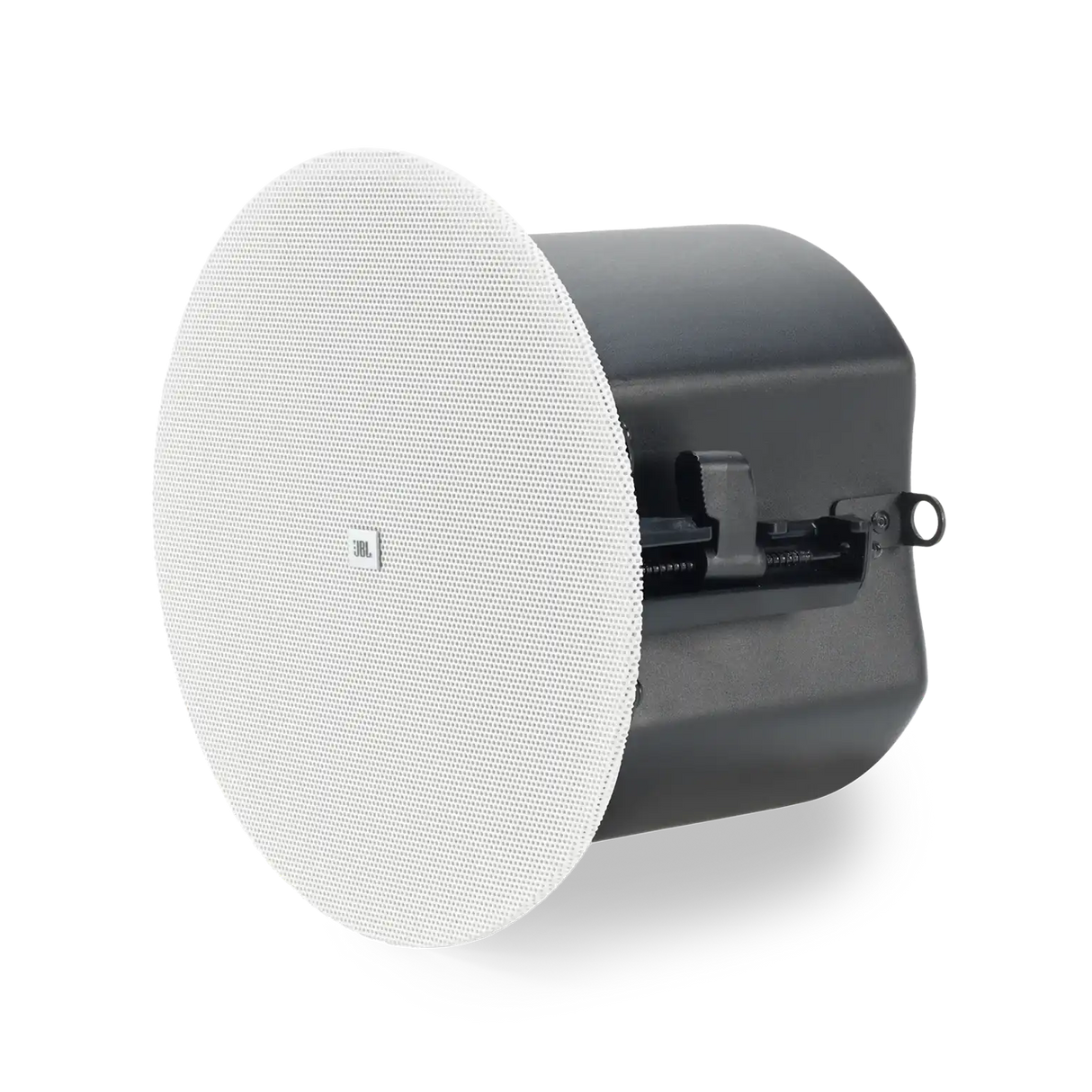

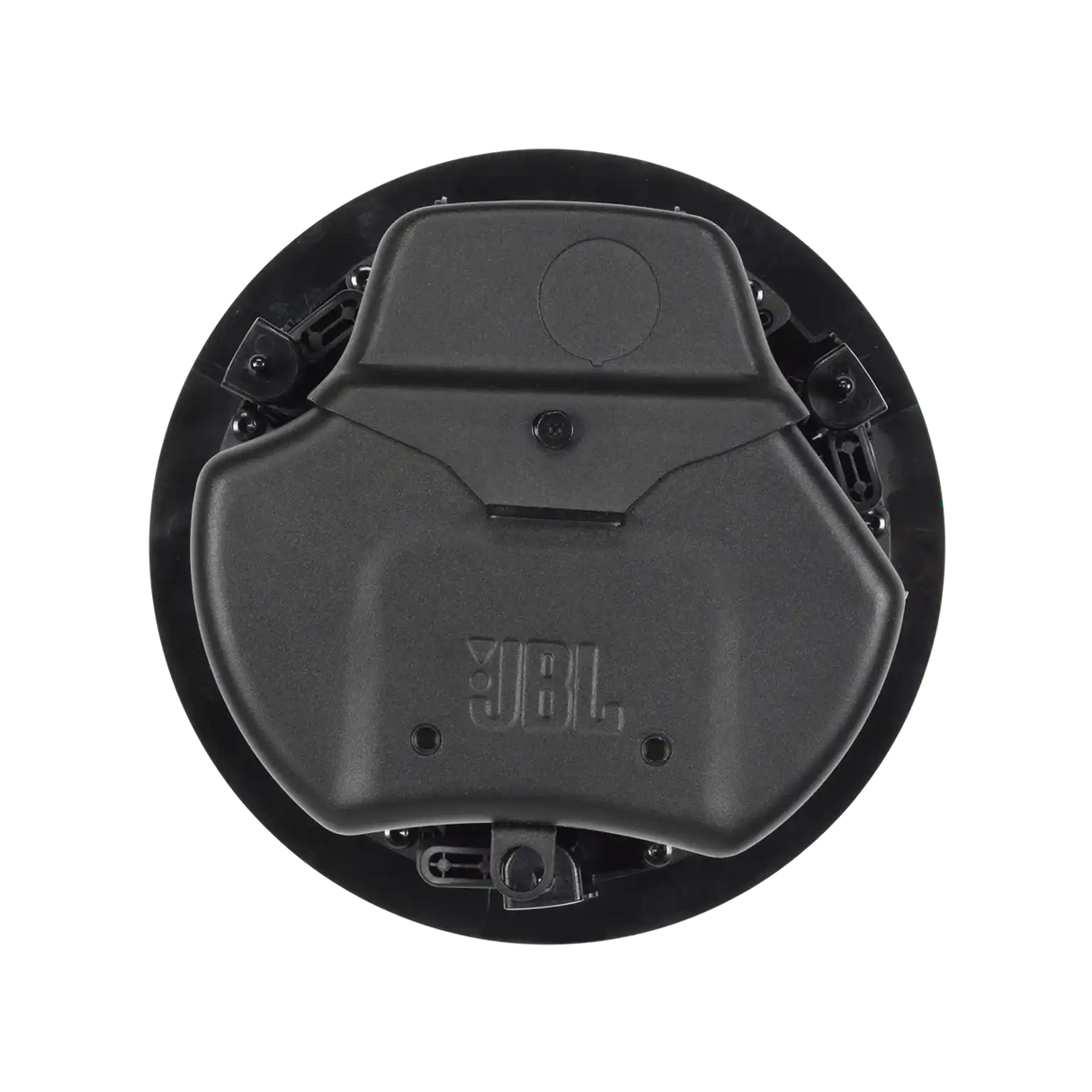

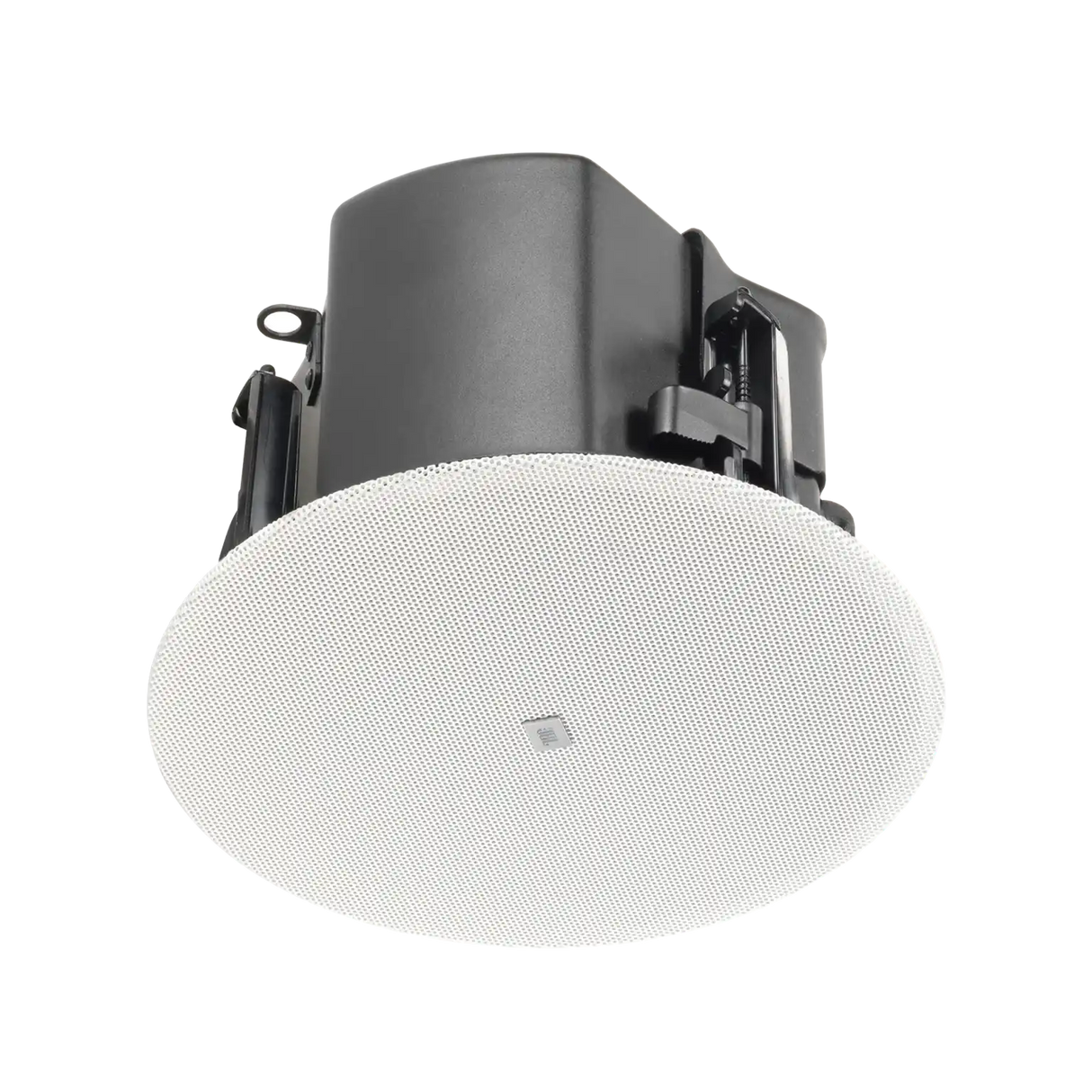

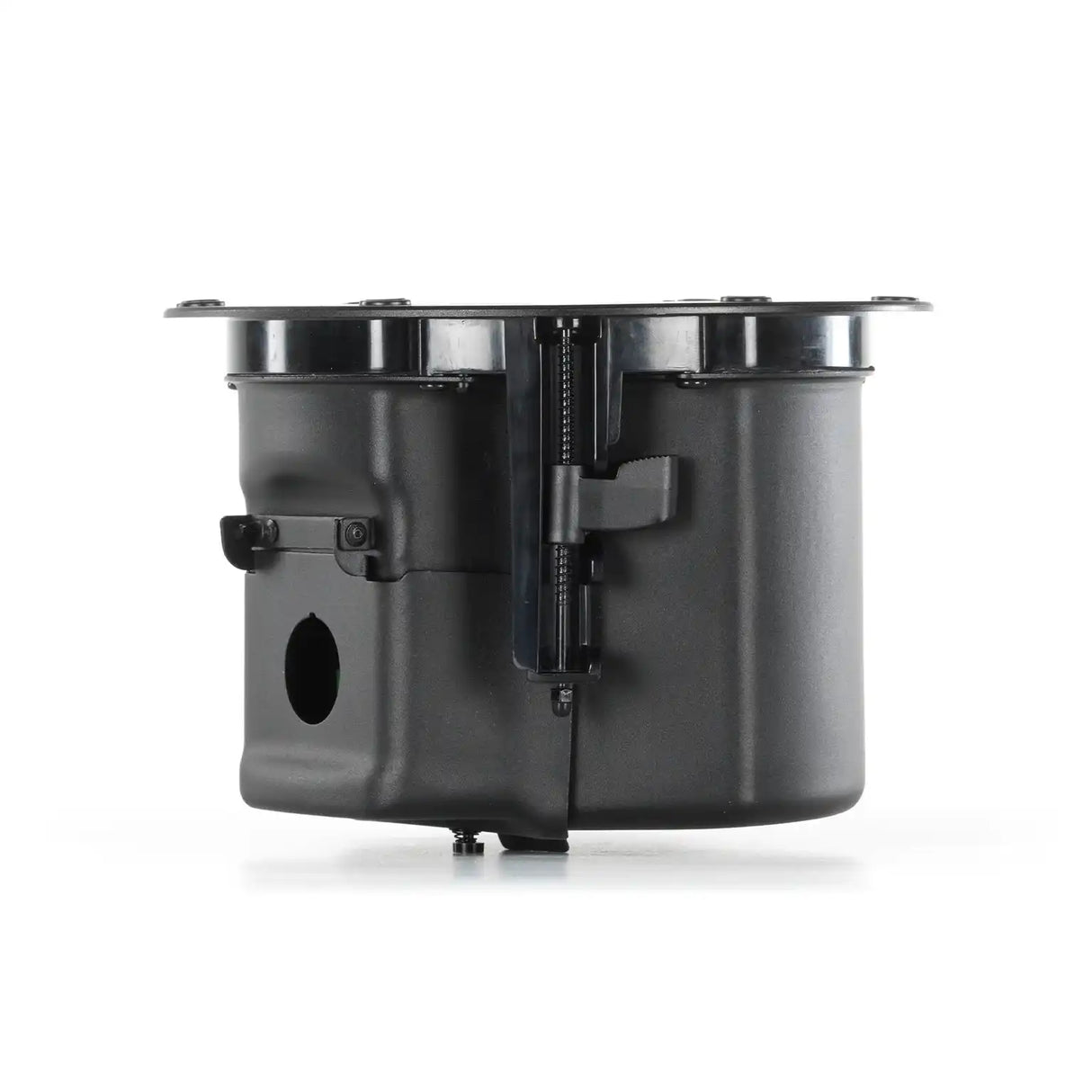

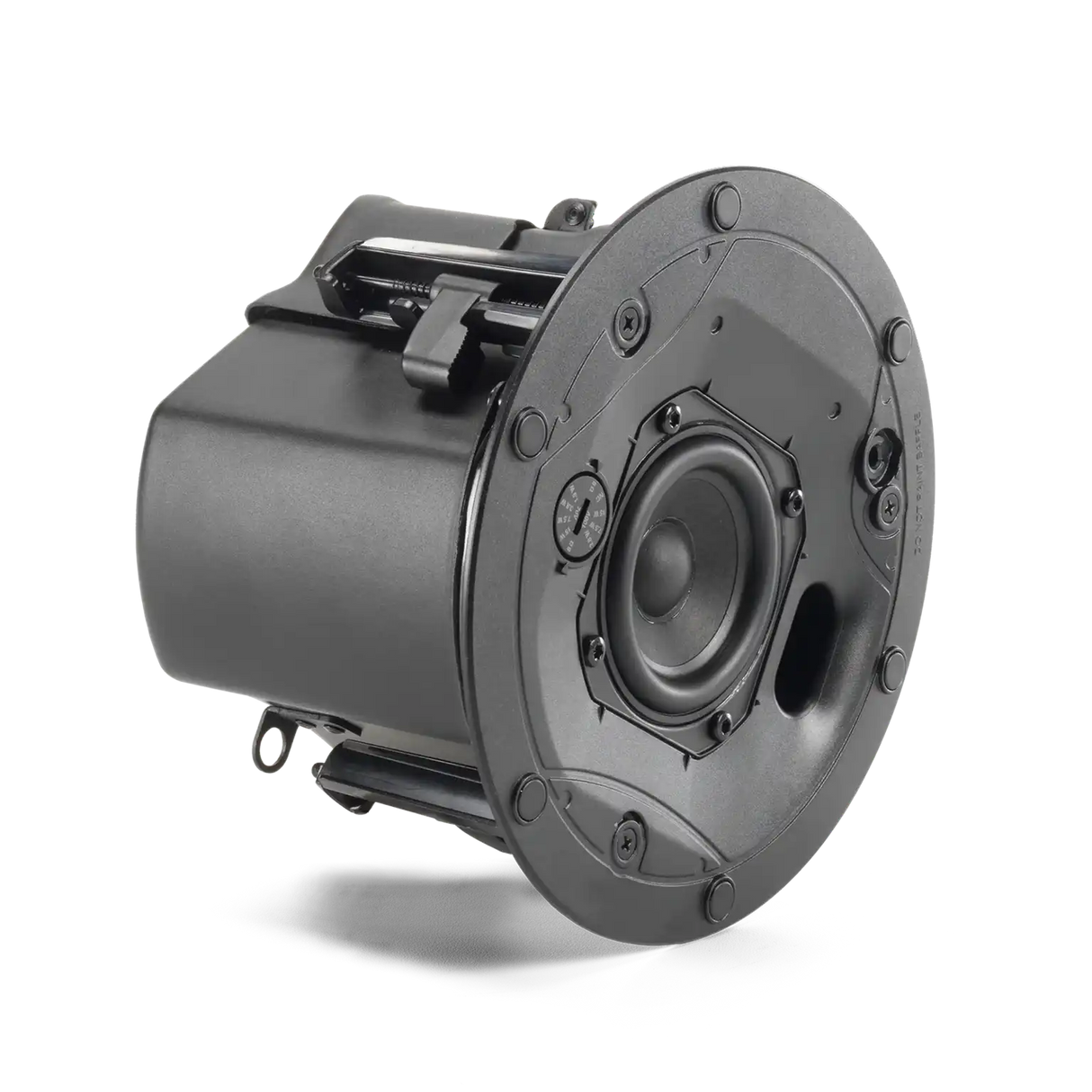

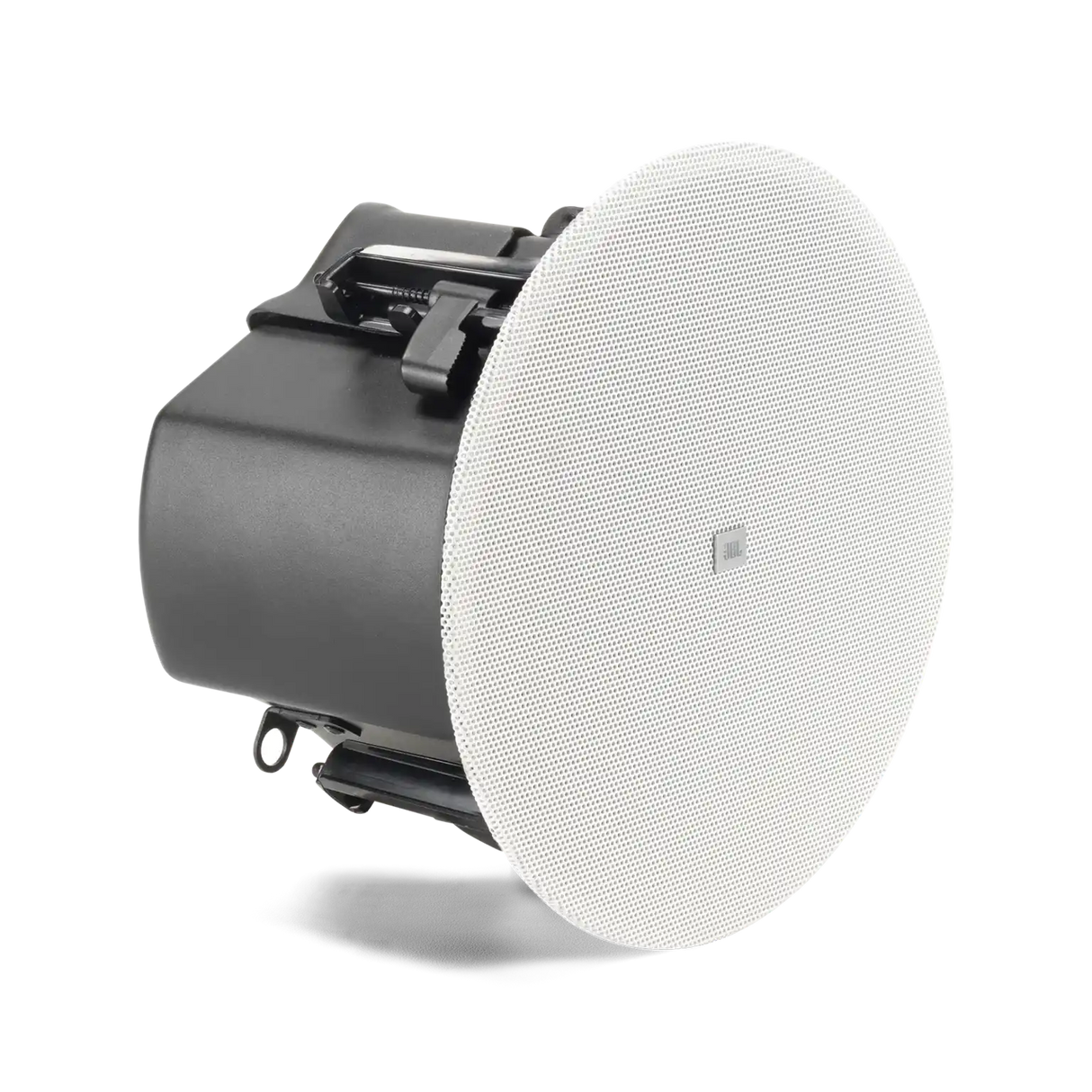

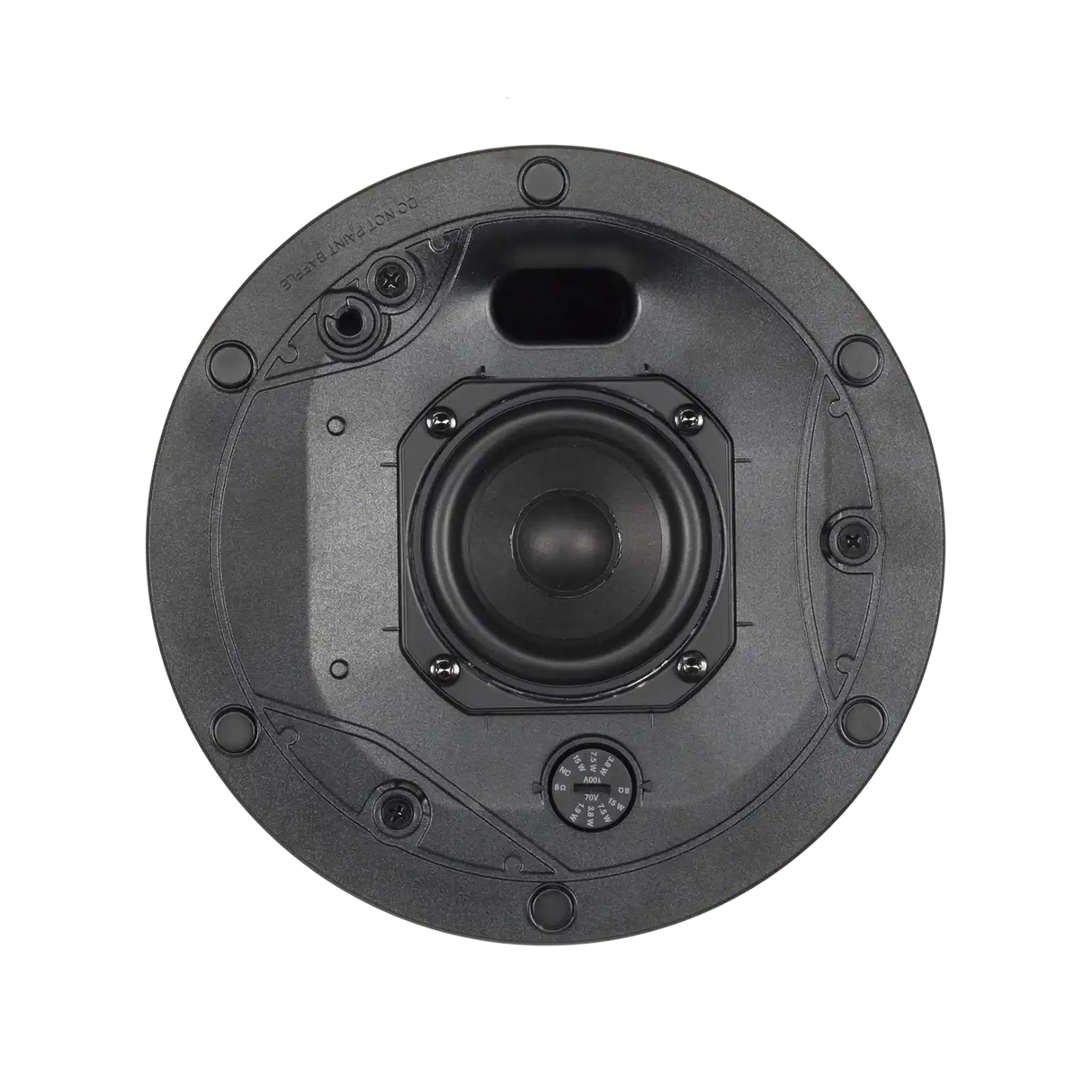

The JBL Control 412C/T-VA is a 3-inch full-range ceiling loudspeaker from JBL’s Control 400 Standard Coverage Series, engineered for life safety and commercial applications. With EN54-24 certification, this model meets strict standards for emergency communication and fire alarm systems, making it ideal for environments requiring reliable voice paging and public address announcements. Its compact design allows for seamless installation in ceilings with restricted plenum space while delivering clear and intelligible audio performance.
The Control 412C/T-VA integrates a full-range 3-inch driver with a durable paper cone and SBR surround, ensuring balanced frequency response across low, mid, and high ranges. The included full-face magnetic grille is paintable to match any interior décor, and optional black, white, or weatherized grilles allow for enhanced aesthetic customization. Designed for efficiency and safety during installation, the speaker features top and side cable entry ports and a reliable captive dogear system that accommodates various ceiling thicknesses, improving repeatability and reducing setup time.
Supporting both low-impedance 8-ohm operation and 70V/100V distributed systems through a built-in multi-tap transformer, the Control 412C/T-VA provides versatile deployment in a wide range of commercial spaces. The speaker offers a 160° conical coverage pattern, a frequency range of 68 Hz to 17 kHz, and continuous power handling of 30 W (120 W peak). Its IP33 environmental rating ensures performance in spaces exposed to moisture. Optional accessories, such as construction brackets, mud-ring brackets, tile rails, and additional grille options, enhance installation flexibility. The JBL Control 412C/T-VA combines certified life safety compliance, modern aesthetics, and reliable audio performance in a compact ceiling loudspeaker for professional environments.
Features:
-
3” full-range driver with paper cone and SBR surround
-
Low-profile integrated enclosure for restricted plenum ceilings
-
Built-in 70V/100V multi-tap transformer plus 8Ω direct input
-
Full-face, paintable magnetic grille; optional black, white, or weatherized grilles
-
Top and side cable entry options
-
Captive dogear system for secure installation across various ceiling thicknesses
-
160° conical coverage pattern
-
IP33 environmental rating
-
EN54-24 certified for life safety applications
Specifications Table:
| Specification | Details |
|---|---|
| Model | JBL Control 412C/T-VA |
| Frequency Range (-10 dB) | 68 Hz – 17 kHz |
| Power Capacity | 30 W continuous, 120 W peak |
| Sensitivity (1m/1W) | 84 dB |
| Coverage Angle | 160° conical |
| Maximum SPL | 99 dB continuous, 105 dB peak |
| Nominal Impedance | 8Ω |
| Transformer Taps | 70 V: 15 W, 7.5 W, 3.8 W, 1.9 W; 100 V: 15 W, 7.5 W, 3.8 W |
| Drivers | 76 mm (3 in) full-range driver with paper cone, SBR surround |
| Ceiling Cutout Size | 168 mm (6.6 in) |
| Dimensions (H x Dia) | 163 mm x 203 mm (6.5 in x 8.1 in) |
| Depth from Tile | 154 mm (6.2 in) |
| Net Weight | 1.76 kg (3.88 lbs) |
| Shipping Weight (pair) | 7.94 kg (17.5 lbs) |
| Color | White (RAL9003), paintable; optional black or weatherized grilles |
| Optional Accessories | MTC-414BG, MTC-414SG, MTC-414WG, MTC-424NC, MTC-424MR, MTC-48TRX4 |
Compare Table:
| Feature / Model | Control 412C/T-VA | Control 414C/T-VA | Control 414CT Micro Plus |
|---|---|---|---|
| Driver Size | 3” | 4” | 4” |
| Tweeter Size | N/A | 0.75” soft dome | 0.5” PEI dome |
| Power Capacity | 30 W / 120 W Peak | 45 W / 180 W Peak | 25 W / 100 W Peak |
| Coverage Angle | 160° conical | 130° conical | 160° conical |
| Low-Profile Enclosure | Yes | Yes | Yes |
| Magnetic Grille | Yes | Yes | Yes |
| Transformer | 70V/100V multi-tap | 70V/100V multi-tap | 70V/100V multi-tap |
| IP Rating | IP33 | IP33 | IP32 |
| Life Safety Certified | EN54-24 | EN54-24 | No |
