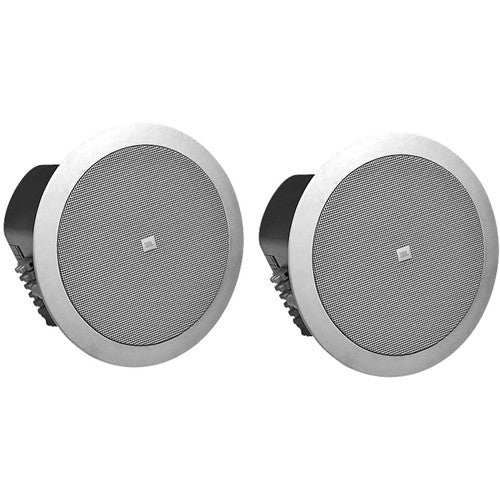

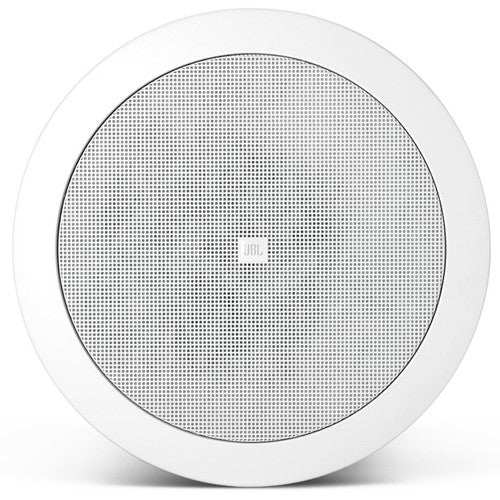

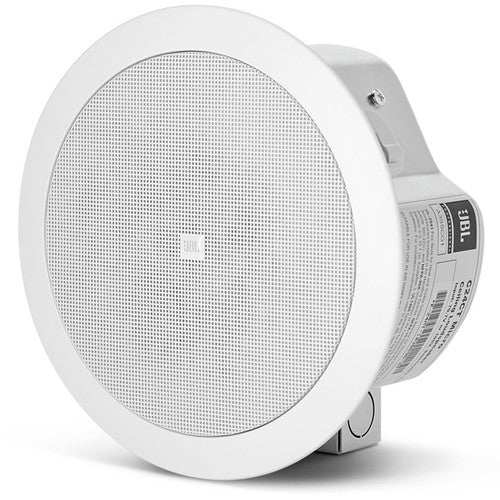

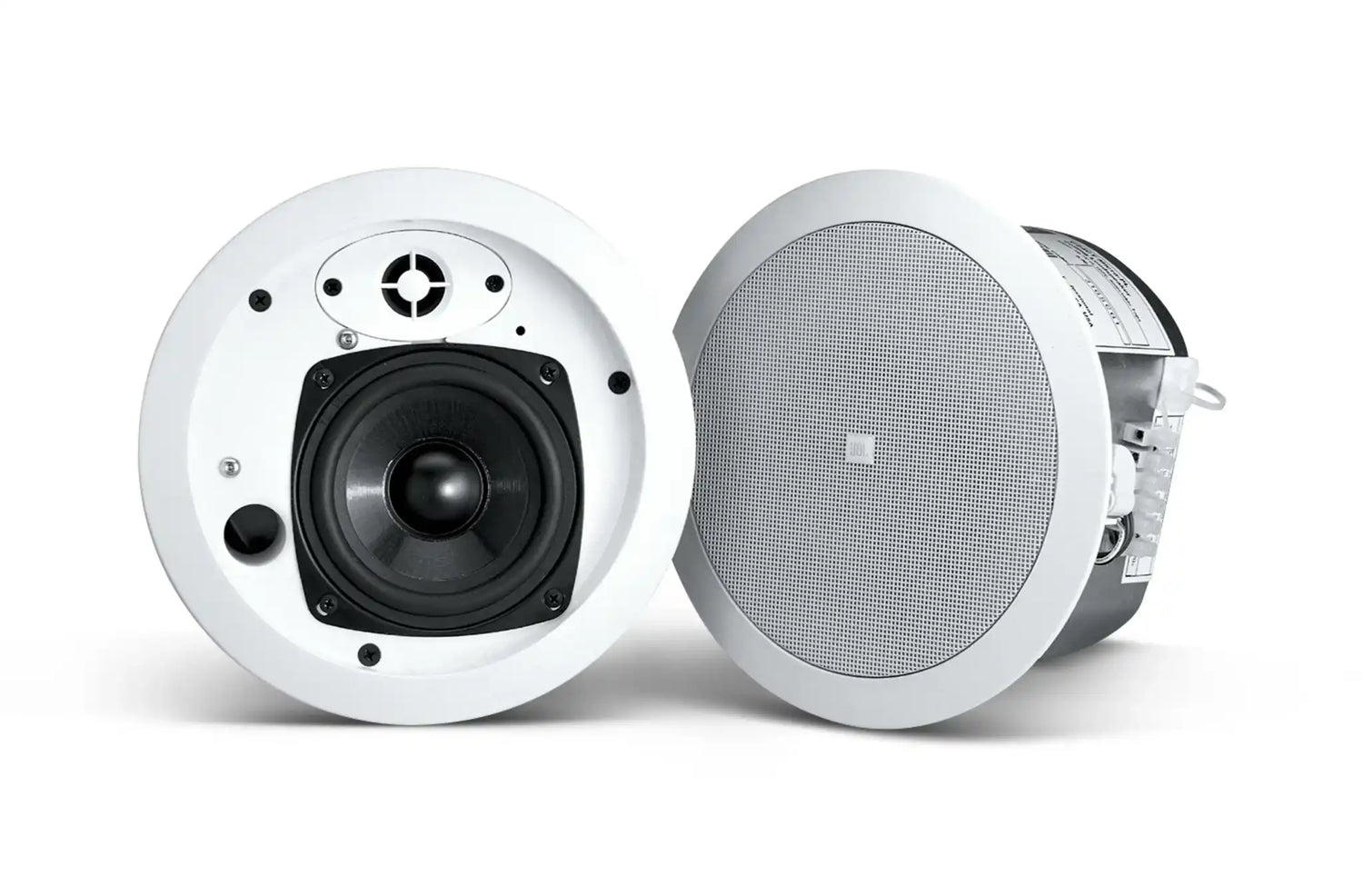

JBL Control 24CT Micro Plus - pair– 4.5" Compact 2-Way Ceiling Speaker with Transformer

Regular price $160.00
Shipping calculated at checkout.
JBL Professional  |  SKU: C24CT MICROPLUS

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

Accepted payment methods

The JBL Control 24CT Micro Plus is a compact, high-performance in-ceiling loudspeaker designed to deliver full, high-quality sound for background music and music-plus-paging systems. Its shallow 105 mm (4.1 in) backcan depth allows installation in most ceiling plenum spaces, making it ideal for commercial, retail, and hospitality environments where discreet audio integration is essential.

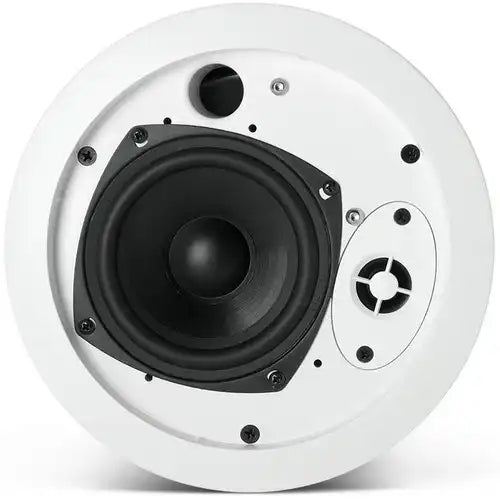

This two-way speaker features a 115 mm (4.5 in) injection-molded graphite (IMG) woofer with a butyl rubber surround, paired with a 12 mm (0.5 in) polycarbonate tweeter for extended frequency response. The advanced crossover network ensures even coverage throughout the listening area, delivering smooth, consistent audio with excellent clarity. With a 150° conical coverage angle, the Control 24CT Micro Plus efficiently fills rooms with natural, balanced sound.

Equipped with a 25 W multi-tap transformer, the speaker easily integrates into 70V or 100V distributed audio systems, offering flexibility for background music and paging applications. The package includes a grille, backcan, and tile rails for fast, secure installation and convenient dealer stocking. With a nominal sensitivity of 85 dB SPL and a maximum SPL of 99 dB at 1 m (25 W tap), this compact ceiling speaker provides reliable audio performance without sacrificing space or aesthetics.

Features:

  • 115 mm (4.5 in) woofer with injection-molded graphite cone and 24 mm (1 in) voice coil

  • 12 mm (0.5 in) polycarbonate tweeter

  • 150° conical coverage for uniform audio distribution

  • Smooth frequency response: 80 Hz – 25 kHz

  • Advanced crossover network for consistent sound

  • Built-in 25 W multi-tap transformer for 70V/100V systems

  • Shallow 105 mm (4.1 in) backcan depth

  • Packaged with grille, backcan, and tile rails for fast installation

Specifications Table:

Specification Details
Model JBL Control 24CT Micro Plus
Frequency Range 80 Hz – 25 kHz
Power Capacity 30 W Continuous Program; 15 W Continuous Pink Noise
Transformer Taps 70 V: 25 W, 12 W, 6 W; 100 V: 25 W, 12 W
Sensitivity (1 m) 85 dB SPL
Coverage Angle 150° conical
Crossover Frequency 3.5 kHz, 3rd order low-pass & high-pass
Maximum SPL (1 m) 99 dB @ 25 W tap
Low Frequency Driver 115 mm (4.5 in) IMG cone, 24 mm (1 in) voice coil
High Frequency Driver 12 mm (0.5 in) polycarbonate
Depth 105 mm (4.1 in)
Included Accessories Grille, backcan, tile rails
