JBL AM7215/64 15-Inch 2-Way Loudspeaker with 60° x 40° Horn
JBL AM7215/64 15-Inch 2-Way Loudspeaker with 60° x 40° Horn is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

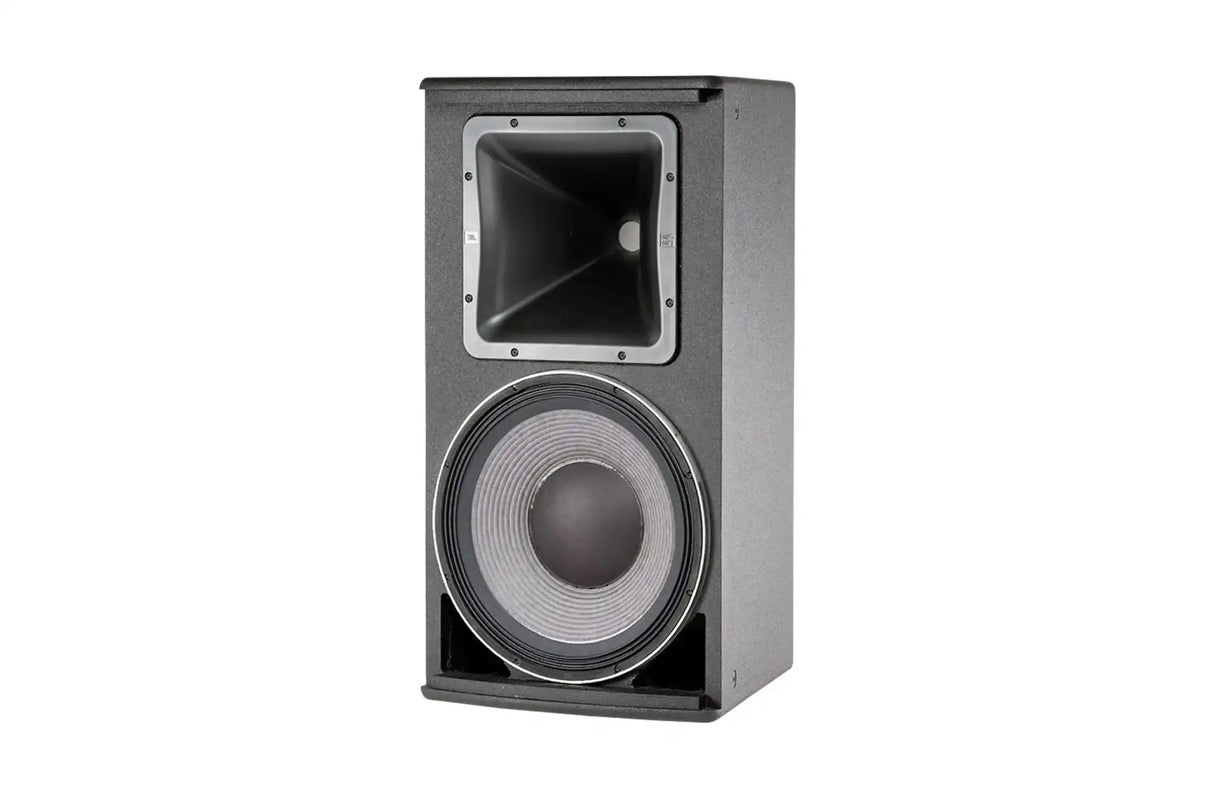

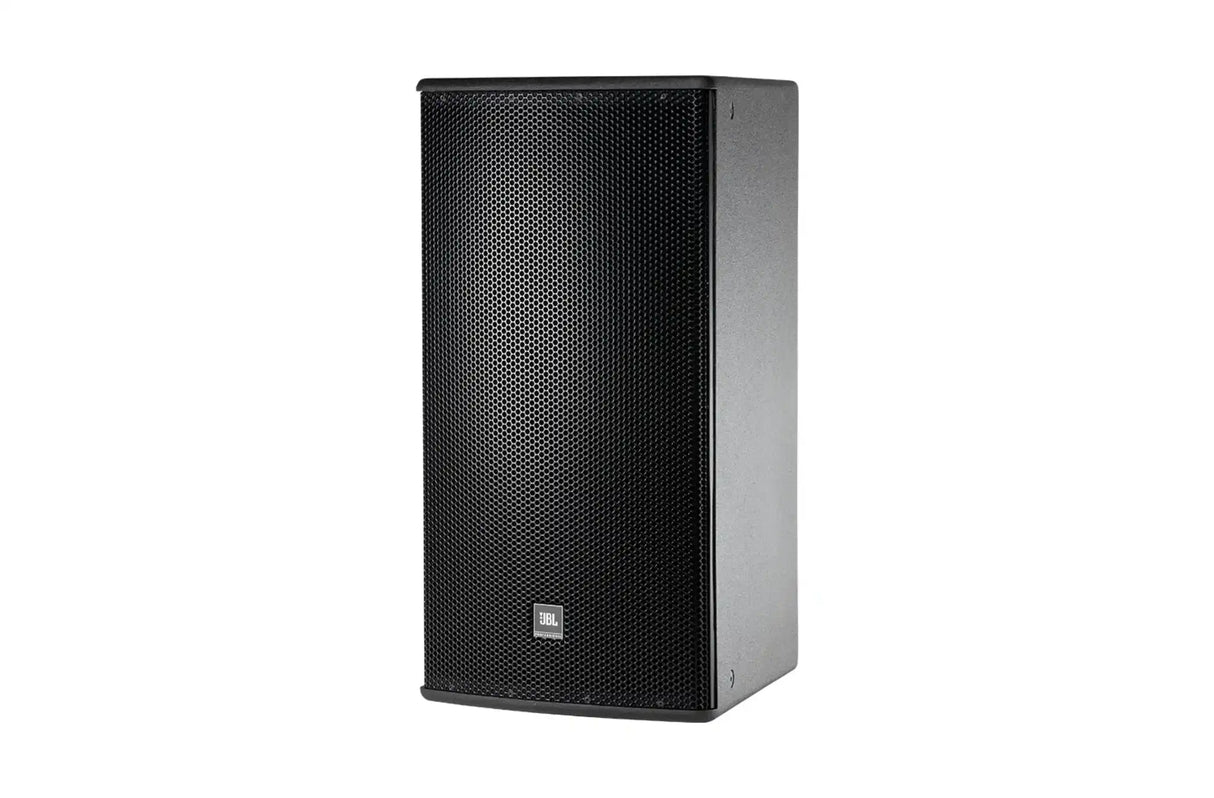

JBL AM7215/64 15-Inch 2-Way Loudspeaker with 60° x 40° Horn
The JBL AM7215/64 is a high-performance, lightweight 2-way full-range loudspeaker system engineered for demanding professional audio applications. Built around JBL’s innovative Differential Drive® 2265H 15-inch low-frequency driver with dual voice coils and dual magnetic gaps, combined with the 2432H high-frequency compression driver, this system delivers powerful, clear, and reliable performance.
The defining feature of the AM7215/64 is its large-format Progressive Transition™ (PT) waveguide, offering precise 60° x 40° coverage. This waveguide is rotatable, allowing for either vertical or horizontal mounting to fit a wide variety of system designs. The combination of high-slope passive networks and well-controlled off-axis response enhances arrayability while maintaining consistent sound quality across coverage areas.
Constructed with a trapezoidal 11-ply birch plywood enclosure finished in JBL’s rugged DuraFlex™, the AM7215/64 is both durable and acoustically optimized. A 14-gauge powder-coated steel grille lined with acoustically transparent foam ensures professional appearance and driver protection. With bi-amp or passive operation available at the flick of a switch, this speaker is highly versatile for installations.
Ideal for venues such as performing arts facilities, theaters, auditoriums, houses of worship, clubs, sports arenas, and themed entertainment spaces, the AM7215/64 is designed to deliver accurate, high-output sound in any environment. Its compliance with IPX3 and MIL-STD-810 standards further ensures reliability in challenging conditions.
Features:
-
15" JBL 2265H Differential Drive® low-frequency driver
-
JBL 2432H high-frequency compression driver with 3" voice coil
-
60° x 40° Progressive Transition™ rotatable waveguide
-
Bi-amp/passive switchable with optimized FIR tuning
-
Controlled off-axis response for improved arrayability
-
Rugged 11-ply birch plywood trapezoidal enclosure with DuraFlex™ finish
-
Heavy-duty 14-gauge steel grille with acoustic foam lining
-
15 integrated M10 suspension points for flexible installation
-
IPX3-rated, MIL-STD-810 compliant for environmental durability
Specifications:
| Specification | Detail |
|---|---|
| System Type | 15" 2-Way High-Power Full-Range Loudspeaker |
| Frequency Range (-10 dB) | 34 Hz – 20 kHz |
| Frequency Response (±3 dB) | 40 Hz – 18 kHz |
| Coverage Pattern | 60° x 40° |
| LF Driver | 1 x JBL 2265H, 15" Differential Drive®, dual 3" voice coil |
| HF Driver | JBL 2432H, 1.5" exit compression driver, 3" voice coil |
| Crossover Frequency | 1.8 kHz |
| Crossover Modes | Bi-amp / Passive switchable |
| Power Handling (LF) | 1000 W continuous, 4000 W peak (AES 2 hr) |
| Power Handling (HF) | 100 W continuous, 400 W peak (AES 2 hr) |
| System Power (Passive) | 600 W continuous, 2400 W peak (100 hrs) |
| Nominal Impedance | 8 Ω |
| Sensitivity (Passive) | 96 dB SPL |
| Maximum SPL (1m) | Bi-amp LF: 128 dB cont avg (134 dB peak); HF: 135 dB cont avg (141 dB peak); Passive: 124 dB cont avg (130 dB peak) |
| Enclosure | 11-ply birch plywood, trapezoidal, DuraFlex™ finish |
| Grille | 14-gauge powder-coated steel with acoustic foam |
| Suspension | 15 x M10 threaded attachment points |
| Environmental | IPX3, MIL-STD-810 compliant |
| Dimensions (H x W x D) | 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in) |
| Net Weight | 27.2 kg (60 lb) |
| Color Options | Black, White, WRC/WRX finishes |
