JBL AM7200/64 & AM7200/95 High-Power 8" Mid-High Frequency...

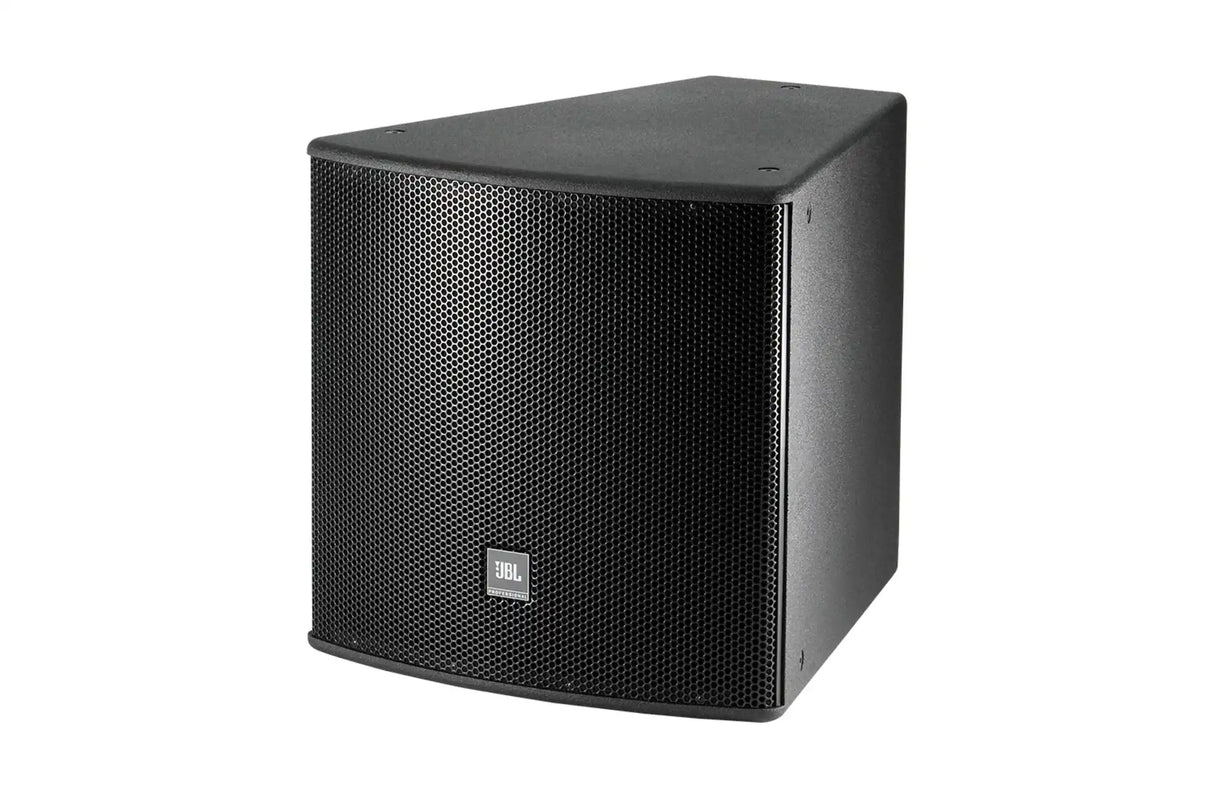

The JBL AM7200 series, including the AM7200/64 and AM7200/95 models, is a professional-grade high-power mid-high frequency loudspeaker system designed for a wide range of fixed-installation applications. Engineered for precision, clarity, and powerful output, these loudspeakers utilize JBL’s CMCD™ Cone Midrange Compression Driver for low midrange distortion, increased sensitivity, extended bandwidth, and improved phase coherency. Complementing the midrange driver is the 2432H high-frequency compression driver, delivering crisp, detailed high frequencies with minimal distortion.

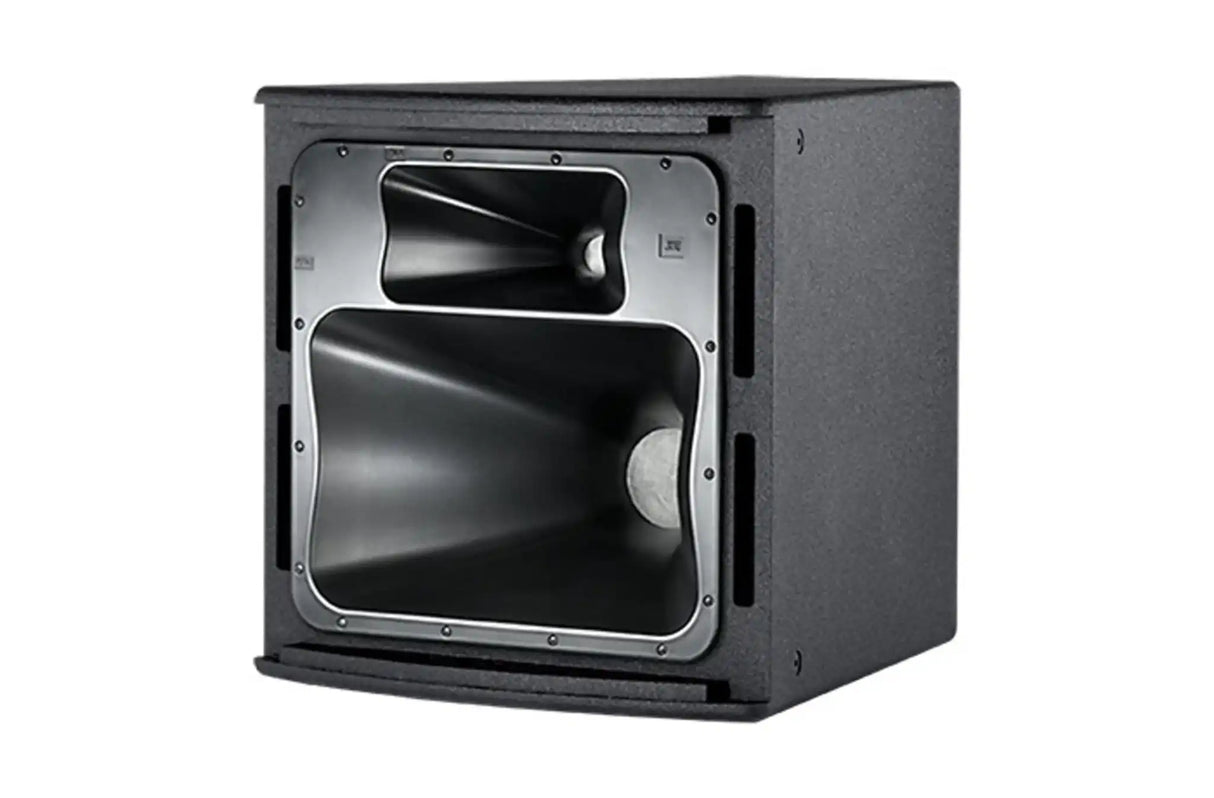

Each model employs JBL’s multi-band Progressive Transition™ (PT) waveguide for superior pattern control and consistent off-axis response. The waveguides are rotatable, allowing flexible deployment in either horizontal or vertical orientations to match venue requirements. The AM7200 series features high-slope bi-amp/passive switchable crossovers that minimize frequency overlap and maintain clean signal transitions.
The trapezoidal enclosures are constructed of 11-ply Finnish birch plywood and finished in JBL’s rugged DuraFlex™ coating. Designed for professional use, they include 13 M10 suspension points for versatile rigging, preengineered array bracketry, and a powder-coated 14-gauge steel grille with acoustically transparent foam for driver protection. With an AES-rated midrange power of 350 W (1400 W peak) and HF power of 100 W (400 W peak), these speakers produce up to 141 dB peak SPL in bi-amp mode, making them ideal for performing arts facilities, auditoriums, houses of worship, live clubs, sports facilities, and themed entertainment venues. The AM7200 series is weather-resistant with IP-x3 and MIL-STD-810 compliance for reliable performance in demanding environments.
Features
-
High-power 8" mid-high frequency loudspeaker system
-
CMCD™ Cone Midrange Compression Driver for low distortion and high sensitivity
-
JBL 2432H HF compression driver (1.5" exit, 3" voice coil)
-
Rotatable PT™ Progressive Transition waveguide for excellent coverage
-
Bi-amp/passive switchable operation with high-slope crossovers
-
Well-controlled off-axis response for arrayability
-
Trapezoidal 11-ply birch plywood enclosure with DuraFlex™ finish
-
13 M10 suspension points for versatile rigging
-
Powder-coated 14-gauge steel grille with acoustically transparent foam backing
-
Input via NL4 Speakon and barrier strip terminals
-
Optional planar array frame kit and eyebolts for suspension
-
IP-x3 and MIL-STD-810 rated for weather resistance
-
Available in black, white finish upon request
Specifications Table
| Specification | Detail |
|---|---|
| System Type | 8" Mid-High Frequency 2-Way Loudspeaker |
| Midrange Driver | CMCD-82H Cone Midrange Compression, 8" (200 mm), dual 3" VC |
| HF Driver | JBL 2432H, 1.5" exit, 3" voice coil |
| Frequency Range (-10 dB) | 260 Hz – 20 kHz |
| Frequency Response (±3 dB) | 330 Hz – 18 kHz |
| Coverage Pattern | /64: 60° x 40°; /95: 90° x 50° (rotatable waveguides) |
| Crossover Frequency | 2.3 kHz |
| Power Handling (MF) | 350 W AES (1400 W peak, 2 hrs) |
| Power Handling (HF) | 100 W AES (400 W peak, 2 hrs) |
| System Power Rating | 200 W (800 W peak, 100 hrs) |
| Maximum SPL (Bi-Amp) | MF: 133 dB (139 dB peak) / HF: 135 dB (141 dB peak) |
| Maximum SPL (Passive) | 133 dB continuous / 139 dB peak |
| Sensitivity (1W @ 1m, Passive) | 108 dB SPL |
| Nominal Impedance | 8 Ohms |
| Enclosure Material | 11-ply Finnish birch plywood, DuraFlex™ finish |
| Grille Material | Powder-coated 14-gauge steel, foam backing |
| Suspension Points | 13 x M10 |
| Dimensions (H x W x D) | 21.6" x 22.1" x 25.9" (548 x 561 x 657 mm) |
| Weight | 60 lb (27.2 kg) |
| Input Connectors | NL4 Speakon & barrier strip terminals |
| Environmental Rating | IP-x3, MIL-STD-810 |
| Optional Accessories | Eyebolts, planar array frame kit, AE series brackets |
Compare Table (AM7200 Models)
| Model | Coverage Pattern | Midrange Driver | HF Driver | Max SPL (Bi-Amp) | Orientation |
|---|---|---|---|---|---|
| AM7200/64 | 60° x 40° | 8" CMCD | 1.5" | 141 dB | Rotatable |
| AM7200/95 | 90° x 50° | 8" CMCD | 1.5" | 141 dB | Rotatable |
