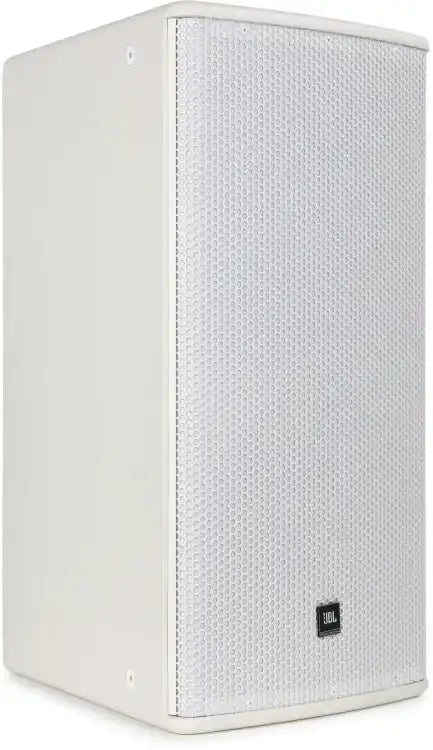

JBL AM5212/95-WRC 12" 2-Way Loudspeaker (90° x 50°, White)
JBL AM5212/95-WRC 12" 2-Way Loudspeaker (90° x 50°, White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
JBL AM5212/95-WRC 12" 2-Way Loudspeaker (90° x 50°, White)
The JBL AM5212/95 is a medium-power, 2-way full-range loudspeaker engineered for professional installations in performing arts venues, theaters, auditoriums, houses of worship, live music venues, nightclubs, sports facilities, and themed entertainment venues. Its 12" Differential Drive low-frequency driver and 1.5" high-frequency compression driver deliver clear, dynamic sound with excellent pattern control.
Equipped with a large-format PT Progressive Transition waveguide, the AM5212/95 provides a precise 90° x 50° coverage pattern, rotatable for either vertical or horizontal placement. High-slope passive networks minimize frequency overlap, while bi-amp/passive switchable operation ensures flexible integration into complex audio systems. The durable trapezoidal enclosure is crafted from 11-ply plywood and finished in a white DuraFlex coating.
Features
-
12" Differential Drive low-frequency driver (262H-1)
-
1.5" high-frequency compression driver (2408H-1)
-
Large PT waveguide with 90° x 50° coverage, rotatable
-
Bi-amp/passive switchable for versatile system design
-
Frequency range: 37 Hz – 20 kHz (-10 dB)
-
Maximum SPL: LF 122 dB cont / HF 129 dB cont
-
System sensitivity: 97 dB (LF) / 113 dB (HF)
-
Trapezoidal plywood enclosure
-
15 M10 suspension points for rigging
-
Powder-coated steel grille with foam backing
-
White DuraFlex finish
Specifications Table
| Specification | Detail |
|---|---|
| Speaker Type | Passive / Bi-Amp Loudspeaker |
| Configuration | 2-Way |
| LF Driver | 1 x 12" (30.48 cm) Dual VC Differential Drive 262H-1 |
| HF Driver | 1 x 1.5" (3.81 cm) Compression Driver 2408H-1 |
| Frequency Range (-10 dB) | 37 Hz – 20 kHz |
| Frequency Response (±3 dB) | 43 Hz – 18 kHz |
| Coverage Angle | 90° H x 50° V (rotatable horn) |
| Crossover Frequency | 1.4 kHz |
| AES LF Power Rating | 300 W / 1200 W peak (100 hrs) |
| Bi-Amp LF Power Rating | 400 W / 1600 W peak (2 hrs) |
| AES HF Power Rating | 40 W / 160 W peak (2 hrs) |
| System Power Rating | Passive: 300 W / 1200 W peak (100 hrs) |
| Maximum SPL | LF 122 dB cont / HF 129 dB cont |
| System Sensitivity | LF 97 dB / HF 113 dB SPL |
| Nominal Impedance | LF: 8 Ohms / HF: 8 Ohms |
| Enclosure Type | Trapezoidal plywood |
| Grille Material | Powder-coated steel with acoustically transparent foam |
| Suspension Points | 4 top, 4 bottom, 2 each side, 3 rear (M10) |

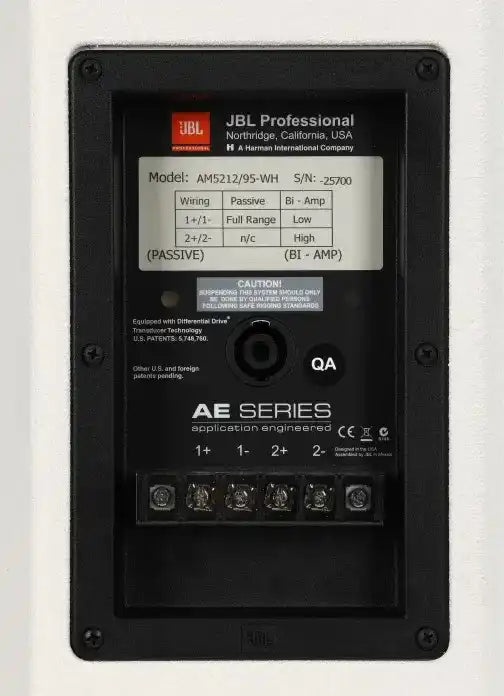

| Input Connector | NL4 Neutrik Speakon & barrier strip |
| Dimensions (H x W x D) | 29.5 x 19.25 x 15.75" (75 x 49 x 40 cm) |
| Weight | 20.2 kg (45 lb) |
