JBL AM5212/00 12" 2-Way Loudspeaker with 100° x 100° Rotatable...

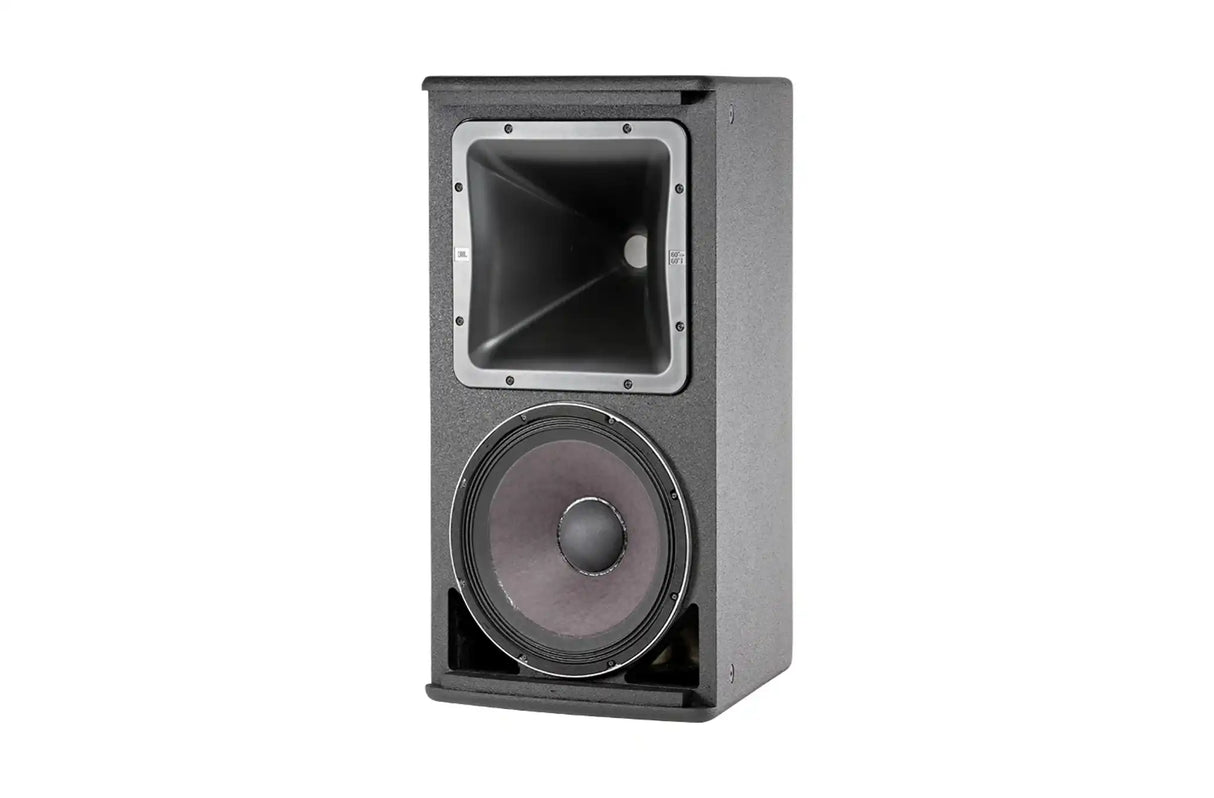

The JBL AM5212/00 is a medium-power, lightweight, 2-way, full-range loudspeaker system designed to deliver exceptional audio performance in various professional environments. Equipped with a 12-inch JBL Differential Drive® dual voice coil and dual magnetic gap 262H-1 low-frequency driver, and a 2408H-1 high-frequency compression driver, the AM5212/00 ensures clear and powerful sound reproduction. The large-format PT™ Progressive Transition waveguide provides excellent pattern control and low distortion, delivering a 100° x 100° coverage pattern. The waveguide is rotatable, allowing the loudspeaker system to be used in either vertical or horizontal orientation, offering flexibility in various installation scenarios. The AM5212/00 features a bi-amp/passive switchable design, with a passive crossover frequency of 1.5 kHz, enabling optimized frequency and phase response, coverage consistency, and sound quality. Available in black, white, and weather-resistant finishes, the AM5212/00 is suitable for a wide range of applications, including performing arts facilities, auditoriums, worship facilities, live clubs, dance clubs, sports facilities, and themed entertainment venues.
Features:
-
100° x 100° coverage pattern
-
262H-1 Differential Drive® low-frequency driver
-
2408H-1 high-frequency compression driver
-
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
-
Rotatable waveguide for vertical or horizontal orientation
-
Bi-amp/passive switchable design
-
Passive crossover frequency of 1.5 kHz
-
Available in black, white, and weather-resistant finishes
Specifications:
| Specification | Details |
|---|---|
| Frequency Range (-10 dB) | 37 Hz – 20 kHz |
| Frequency Response (±3 dB) | 43 Hz – 20 kHz |
| Coverage Pattern | 100° x 100° |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.5 kHz |
| Transducer Power Rating (AES) | LF: 400 W (1600 W peak), 2 hrs HF: 40 W (160 W peak), 2 hrs |
| System Power Rating (Passive mode) | 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1m) | LF: 122 dB HF: 131 dB |
| Nominal Impedance | 8 Ohms |
| Inputs | 1 x SpeakON, 1 x Barrier Strip |
| Enclosure Material | Weather-resistant construction |
| Finish | Black, White, WRC/WRX weather-resistant |
