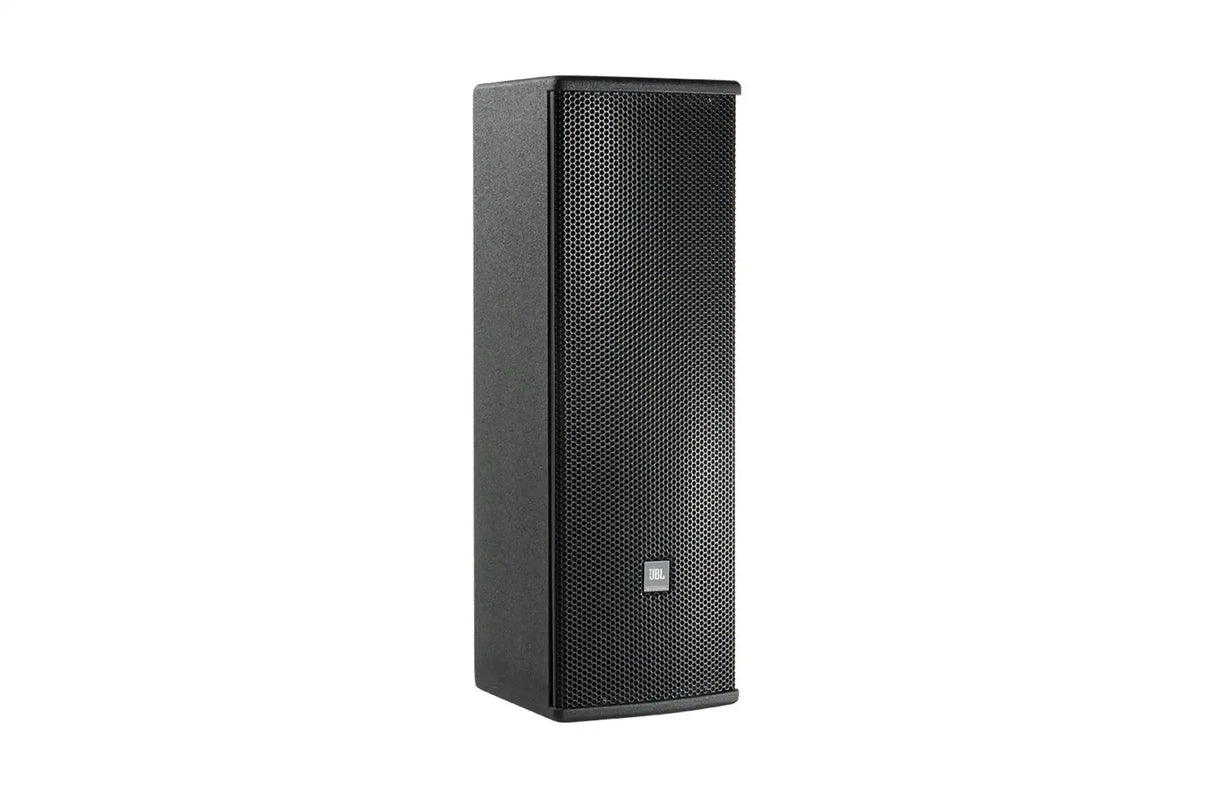

JBL AC28/26 W Dual 8-Inch 2-Way Loudspeaker – White, 120° x 60° Rotatable Horn
JBL AC28/26 W Dual 8-Inch 2-Way Loudspeaker – White, 120° x 60° Rotatable Horn is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
JBL AC28/26 W Dual 8-Inch 2-Way Loudspeaker – White, 120° x 60° Rot...
The JBL AC28/26 W is a professional-grade 2-way loudspeaker in a sleek white finish, designed for high-output performance in a variety of venues including performing arts facilities, theaters, auditoriums, houses of worship, clubs, and themed entertainment spaces. This compact system features dual 8-inch low-frequency drivers and a 1-inch high-frequency compression driver with a rotatable PT™ waveguide, delivering flexible 120° x 60° coverage to ensure uniform sound distribution across any listening environment.
With a program power rating of 750 W, the AC28/26 W provides reliable performance, producing clear, detailed audio across a wide frequency range while maintaining consistent tonal quality. Its field-rotatable waveguide allows easy adaptation to vertical or horizontal deployment, making it versatile for a variety of installation and stage setups. FIR tuning optimizes frequency and phase response, ensuring precise sound reproduction, excellent coverage consistency, and minimal distortion.
The enclosure is constructed from durable multi-ply hardwood plywood and features dual Neutrik NL4 connectors with screw terminals, allowing professional-grade connectivity and flexible system integration. Multiple M8 suspension points enable mounting with U-brackets, OmniMount® brackets, or stand mounts, offering designers and installers a range of deployment options. Lightweight and robust, the AC28/26 W combines high output, compact design, and superior sonic performance, making it an ideal solution for venues that require both aesthetic appeal and professional audio quality.
Features:
-

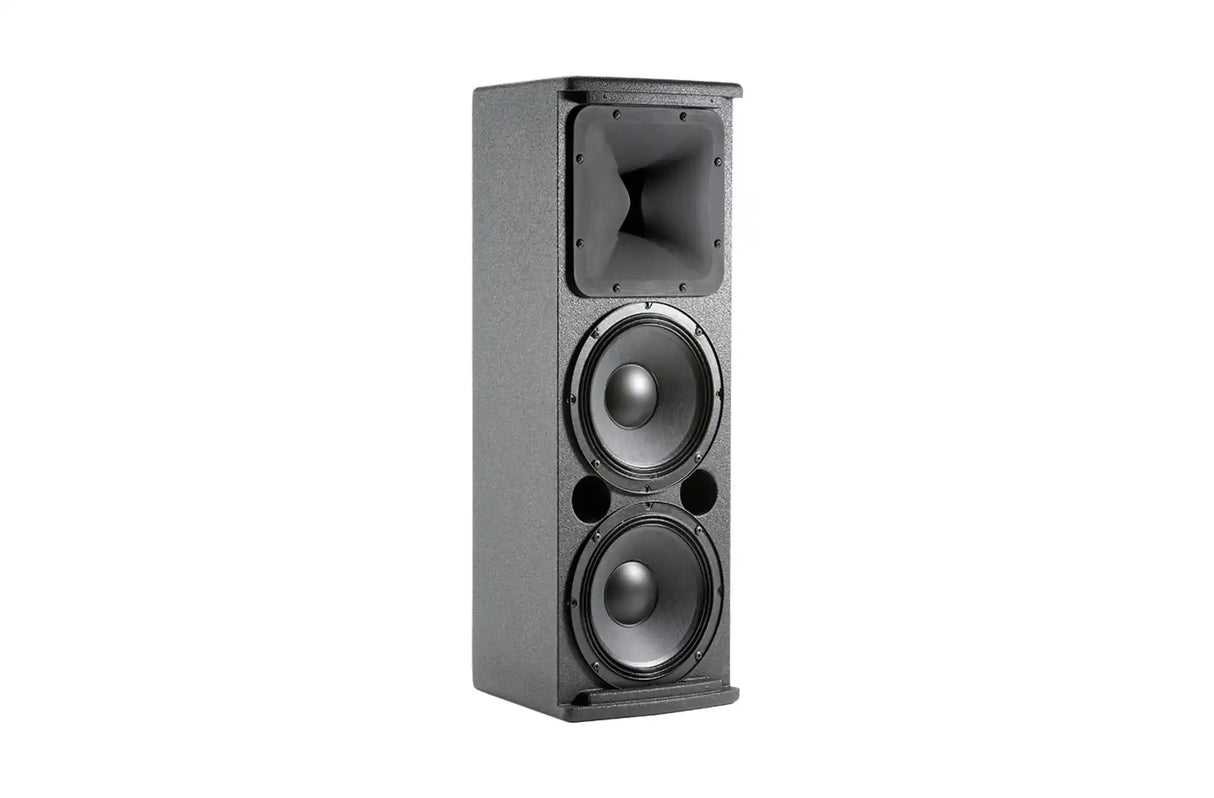

Dual 8-inch low-frequency drivers
-
1-inch HF compression driver with PT™ rotatable waveguide
-
Rotatable 120° x 60° coverage for flexible deployment
-
750 W program power handling
-
FIR tuning for optimized frequency and phase response
-
Durable multi-ply hardwood plywood enclosure in white finish
-

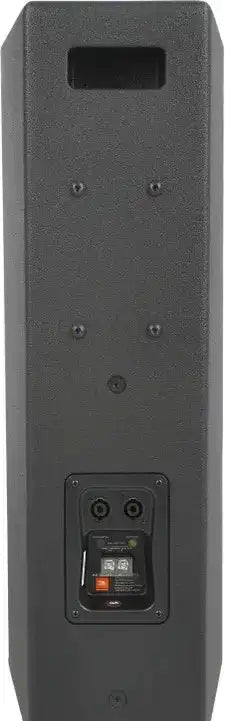

Dual Neutrik NL4 connectors plus screw terminals
-
Multiple M8 suspension points for U-bracket, OmniMount®, or stand mount installation
-
Ideal for performing arts, theaters, auditoriums, worship facilities, clubs, and themed entertainment
Specifications Table:
| Specification | Detail |
|---|---|
| Frequency Range (-10 dB) | 53 Hz – 20 kHz |
| Frequency Response (±3 dB) | 65 Hz – 20 kHz |
| System Power Rating | 700 W AES; 375 W / 750 W / 1500 W Continuous/Program/Peak |
| Impedance | 8 ohms |
| Coverage Pattern | 120° x 60° |
| LF Driver | 2 x JBL 228J 8" SFG™ drivers |
| HF Driver | 1 x 1" 2408H-1 compression driver |
| Maximum SPL (1m) | 120 dB |
| System Sensitivity | 94 dB SPL |
| Enclosure | Multi-ply hardwood plywood |
| Suspension Attachment | 6 x M8 points; 4 x M8 rear for MultiMount® MM-120-BT |
| Input Connector | Dual NL4 connectors plus screw terminal |
| Dimensions (H x W x D) | 679.5 x 237.5 x 254 mm |
| Net Weight | 18.6 kg (40.9 lb) |
| Environmental | Mil-Std 810; IPx3 per IEC529 |
Compare Table:
| Feature | AC28/26 W | AC28/26 | AC18 |
|---|---|---|---|
| LF Drivers | 2 x 8" | 2 x 8" | 2 x 6.5" |
| HF Driver | 1" exit compression | 1" exit compression | 1" exit compression |
| Coverage | 120° x 60° | 120° x 60° | 90° x 50° |
| System Power | 700 W AES | 700 W AES | 500 W AES |
| Max SPL | 120 dB | 120 dB | 116 dB |
| Finish | White | Black | Black |
