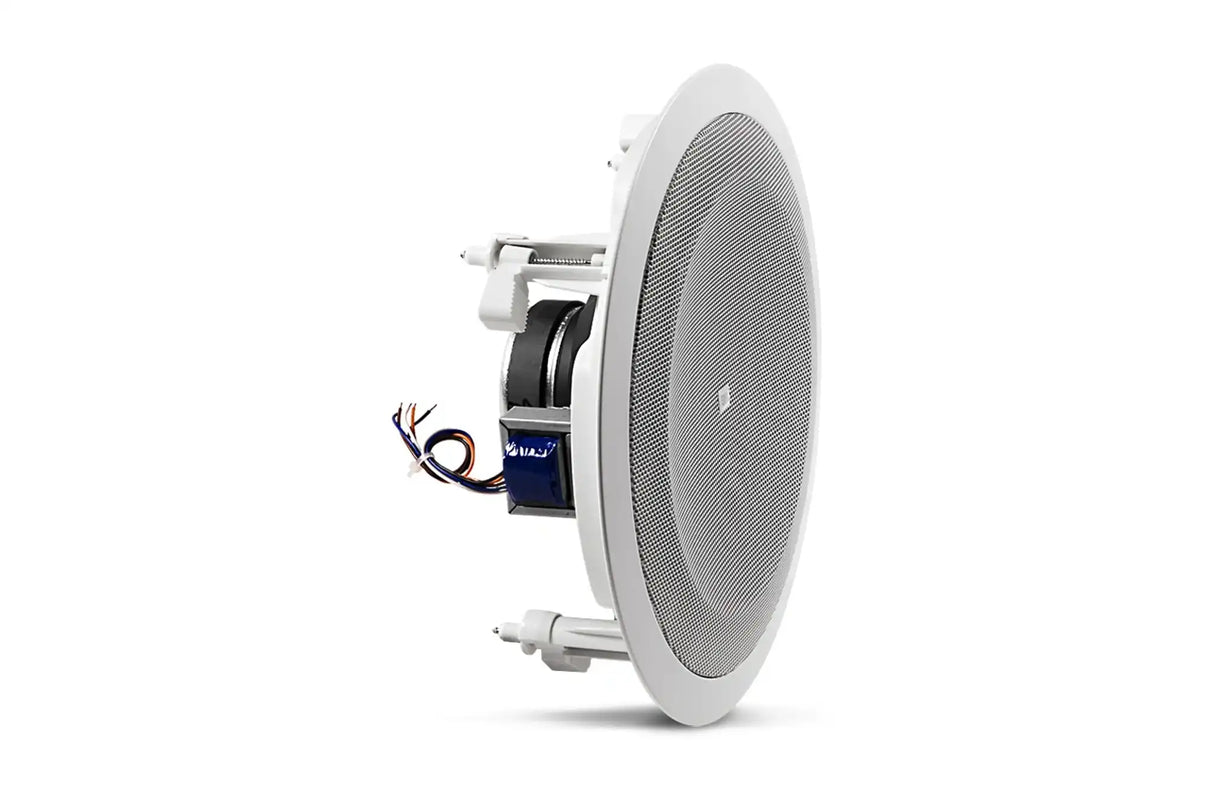

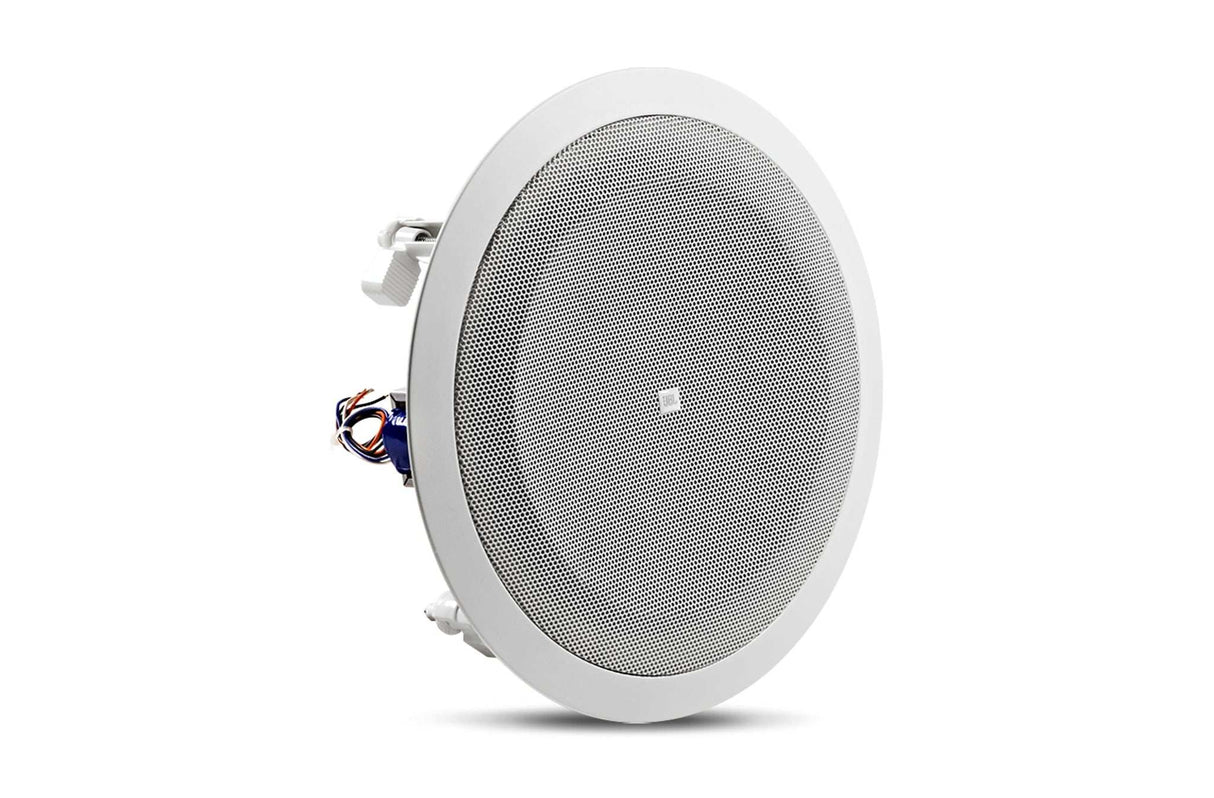

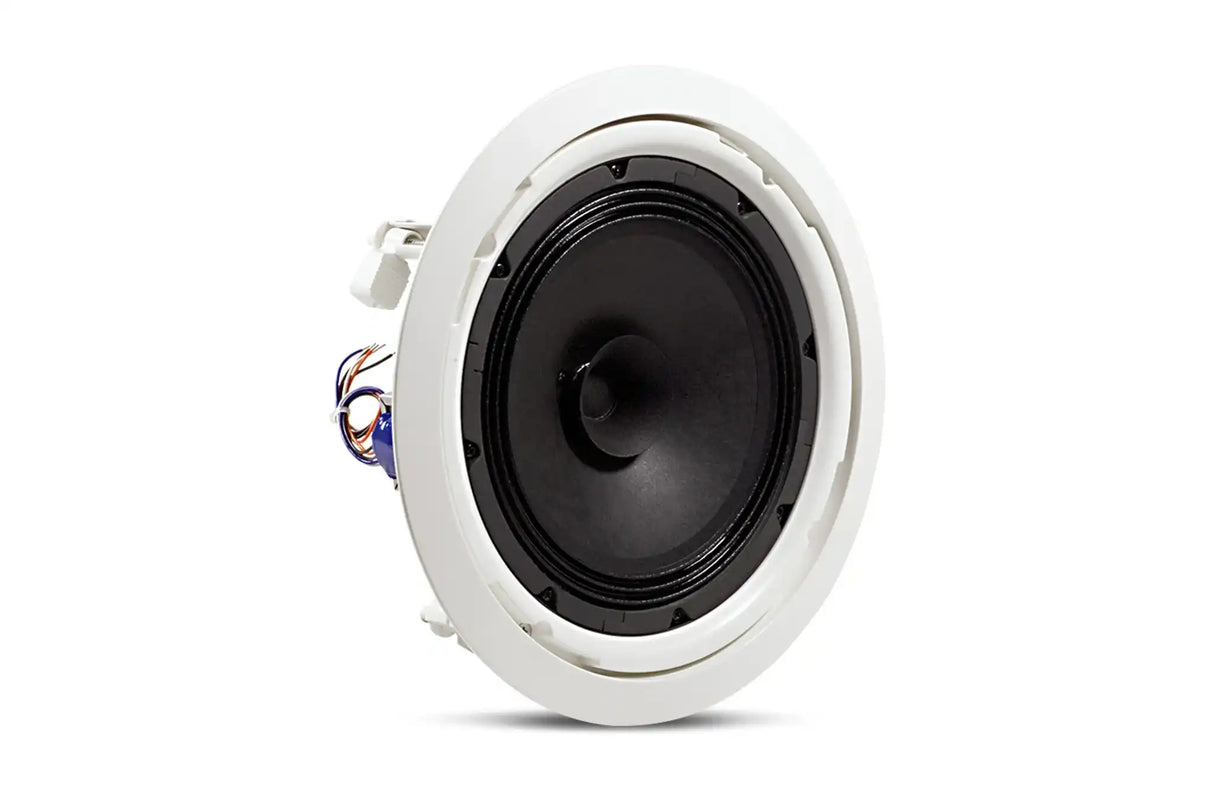

JBL 8128 – 8" Full-Range In-Ceiling Loudspeaker Set of 4, Sold Individually
JBL 8128 – 8" Full-Range In-Ceiling Loudspeaker Set of 4, Sold Individually is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
JBL 8128 – 8" Full-Range In-Ceiling Loudspeaker Set of 4, Sold...
(Sold as 4 pack)
The JBL 8128 is a cost-effective, high-fidelity 8-inch full-range in-ceiling loudspeaker designed for commercial installations. Combining clear sound, high sensitivity, and ease of installation, the 8128 is ideal for applications such as retail spaces, offices, classrooms, or any environment requiring background music or paging without the need for a backcan. Its open-back design ensures efficient sound dispersion, while the contemporary grille maintains a sleek, professional appearance.
Equipped with a 6W transformer for 70V/100V distributed audio lines, the 8128 achieves maximum output with minimal amplifier power. Installation is simplified with integrated dog-ears for secure retrofitting in standard ceiling tiles.
Features:
-
8-inch full-range driver for clear, high-fidelity audio
-
High sensitivity: 97 dB (1 W, 1 m) for efficient amplification
-
70V/100V multi-tap transformer: 6 W, 3 W, 1.5 W, 0.75 W (70V only)
-
90° conical coverage angle
-
Dog-ear mounting for easy retrofit installations
-
Contemporary white grille for seamless ceiling integration
-
Open-back design for efficient sound dispersion
Specifications Table:
| Specification | Details |
|---|---|
| Driver | 8 in (200 mm) full-range |
| Frequency Range | 50 Hz – 16 kHz |
| Sensitivity | 97 dB (1 W, 1 m) |
| Coverage Angle | 90° conical |
| Transformer Taps | 6 W, 3 W, 1.5 W (0.75 W at 70V only) |
| Input Connectors | Bare wires |
| Maximum SPL (1 m) | 105 dB |
| Dimensions (Dia x Depth) | 287 mm x 105 mm (11.3 in x 4.1 in) |
| Weight | 1.4 kg (3 lb) |
| Ceiling Cutout Size | 260 mm (10.1 in) |
| Backcan | No |
| Baffle/Rim | Plastic |
| Plenum Usage | Not intended for return air plenums |
| Included Accessories | Sculpted grille |
| Optional Accessories | MTC-8124C C-ring, MTC-Rail tile rails |
