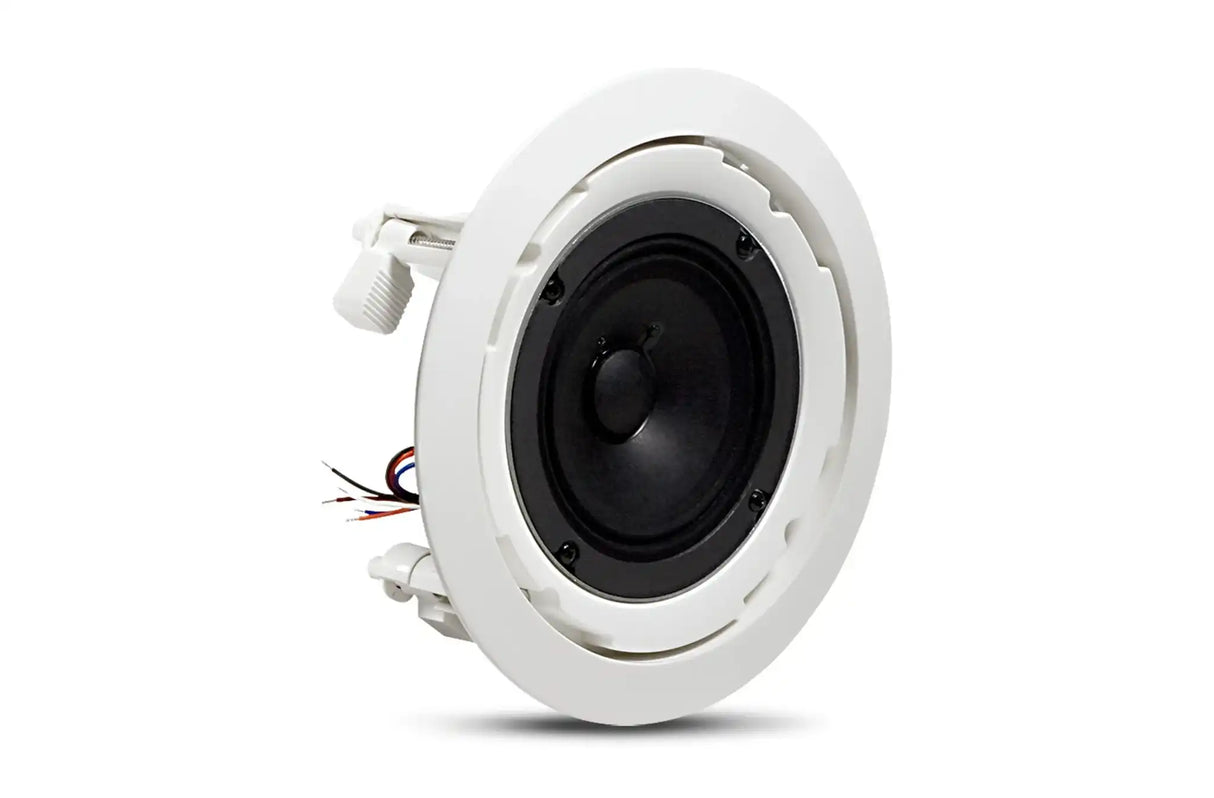

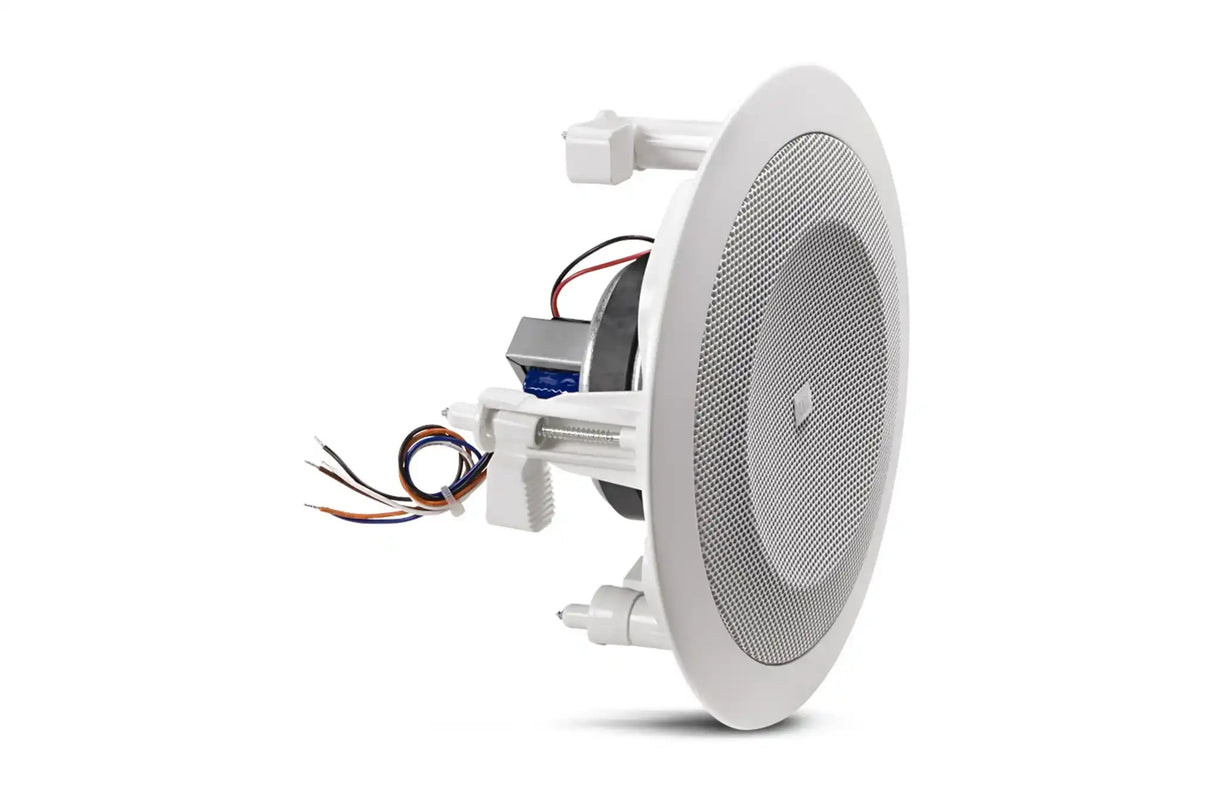

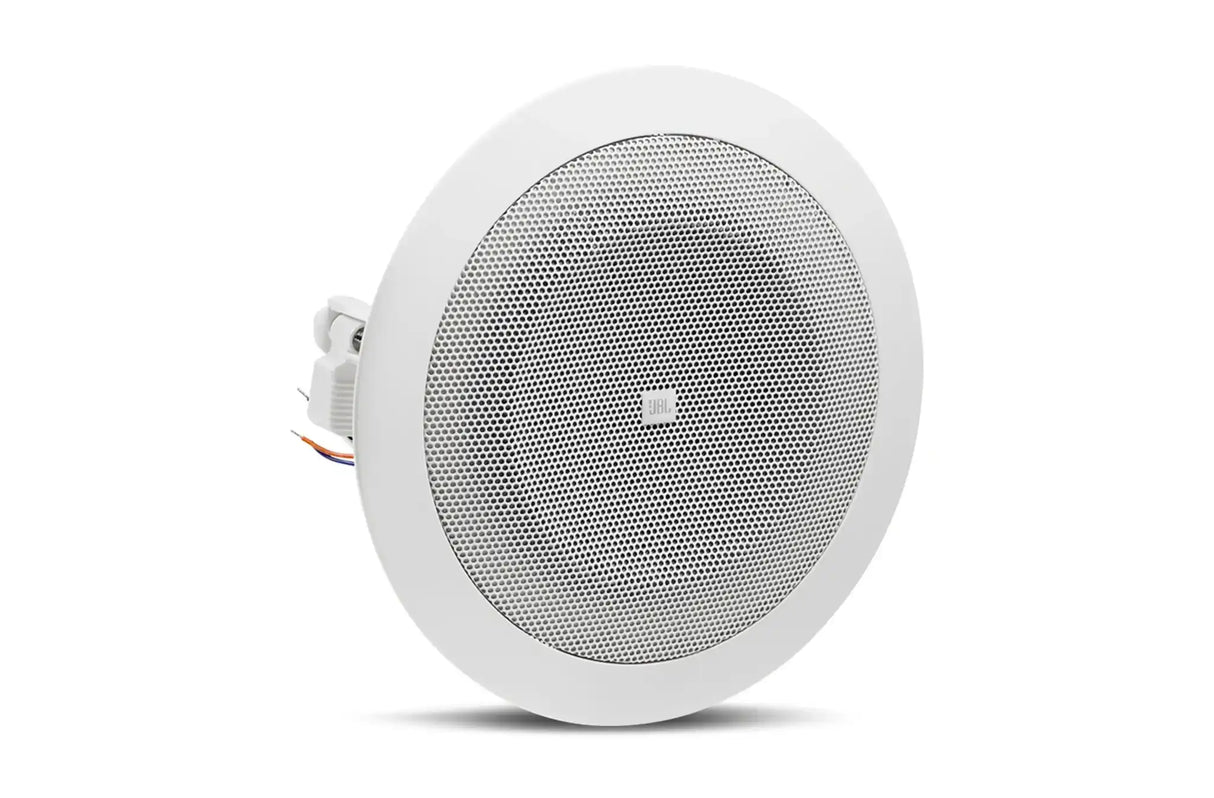

JBL 8124 – 4" Full-Range In-Ceiling Loudspeaker
The JBL 8124 is a cost-effective, high-performance 4-inch full-range in-ceiling loudspeaker designed for commercial installations. Compact yet powerful, the 8124 delivers clear, high-fidelity sound with high sensitivity, ensuring maximum output while using minimal amplifier power. Its open-back design makes it ideal for applications that don’t require a backcan, such as retail spaces, offices, classrooms, or other basic commercial sound systems.
With easy dog-ear mounting for retrofit installations and a contemporary white grille, the 8124 combines professional performance with a clean aesthetic that blends seamlessly into any ceiling environment.
Features:
-
4-inch full-range driver for clear audio reproduction
-
High sensitivity: 93 dB (1 W, 1 m) for efficient amplifier use
-
70V/100V multi-tap transformer: 6 W, 3 W, 1.5 W, 0.75 W (70V only)
-
130° conical coverage for wide-area sound distribution
-
Dog-ear mounting system for easy retrofit installations
-
Contemporary white grille for discreet integration
-
Open-back design for efficient performance in non-plenum spaces
Specifications Table:
| Specification | Details |
|---|---|
| Driver | 4 in (100 mm), full-range |
| Frequency Range | 60 Hz – 18 kHz |
| Sensitivity | 93 dB (1 W, 1 m) |
| Coverage Angle | 130° conical |
| Transformer Taps | 6 W, 3 W, 1.5 W (0.75 W at 70V only) |
| Input Connectors | Bare wires |
| Maximum SPL (1 m) | 101 dB |
| Dimensions (Dia x Depth) | 206 mm x 89 mm (8.1 in x 3.5 in) |
| Weight | 1.2 kg (2.5 lb) |
| Ceiling Cutout Size | 175 mm (6.9 in) |
| Backcan | No |
| Baffle/Rim | Plastic |
| Plenum Usage | Not intended for return air plenums |
| Included Accessories | Sculpted grille |
| Optional Accessories | MTC-8124C C-ring, MTC-Rail tile rails |
