JBL Pro VRX932LAP Array Bundle
JBL VRX932LAP Array Bundle – Three Powered Line Array Modules with Flown Array Frame
Product Overview

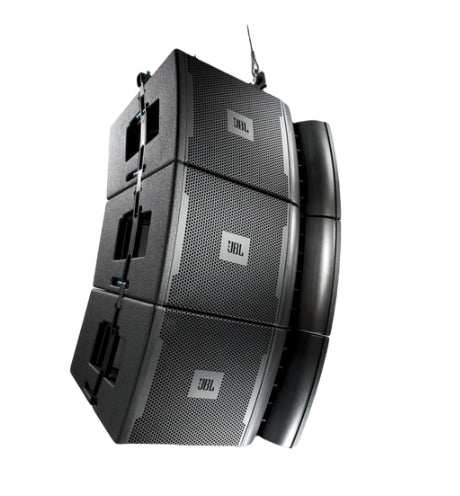

The JBL VRX932LAP Array Bundle is a complete flown line array system combining three VRX932LAP powered 12-inch 2-way line array modules with the VRX-AF array frame for elegant suspended array deployment. The VRX932LAP is a lightweight, compact self-powered line array module designed for arrays of up to five units, driven by JBL's DrivePack DPC-2 Crown-designed amplifier delivering 1,750 watts of peak power with onboard DSP. This bundle is configured for commercial AV integrators and rental operators requiring a ready-to-fly three-cabinet array with the dedicated suspension frame, suited to corporate events, houses of worship, performing arts venues, and multipurpose commercial spaces requiring flown line array reinforcement.
Product Description

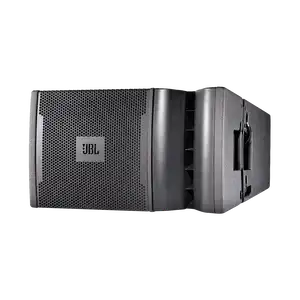

The VRX932LAP combines a JBL Neodymium Differential Drive 12-inch woofer with three JBL 2408J Annular Ring Diaphragm HF compression drivers, driven by the Crown-developed DPC-2 DrivePack module with DSP-based system optimization and EQ. The included VRX-AF array frame provides the rigging structure for safely flying three VRX932LAP cabinets in a suspended array configuration — appropriate for permanent installations and semi-permanent event deployments where the line array is flown rather than ground-stacked. Self-powered operation eliminates the need for external amplifier racks, simplifying flown deployment. The three-cabinet configuration delivers increased SPL and vertical coverage control compared to single-cabinet deployment, with the array geometry adjustable via the VRX-AF frame to match venue coverage requirements. This bundle is ideal for corporate AV, worship, and performing arts venues requiring a complete, ready-to-deploy flown powered line array solution.
Key Features
- Complete Flown Array Bundle — Three VRX932LAP powered line array modules plus the VRX-AF array frame provide a ready-to-fly suspended line array system.
- JBL DrivePack DPC-2 Crown Amplification — 1,750W peak power per cabinet with integrated Crown amplifier and DSP-based system optimization and EQ.

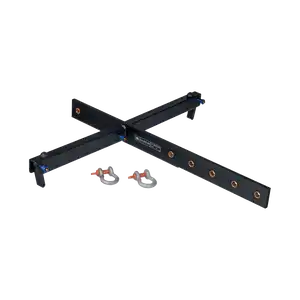

- VRX-AF Array Frame Included — Dedicated suspension frame enables safe flown array deployment with adjustable array geometry for venue-specific coverage.
- Neodymium Differential Drive Woofer — Lightweight high-output 12-inch woofer reduces flown array weight load for rigging-constrained installations.
- 3 × JBL 2408J HF Compression Drivers per Cabinet — Current-generation Annular Ring Diaphragm drivers deliver high-output, accurate high-frequency reproduction.
- Self-Powered Flown Deployment — Integrated amplification eliminates external amplifier racks, simplifying suspended array installation.
- Scalable to 5-Unit Arrays — Additional VRX932LAP modules can extend the array for increased SPL or vertical coverage.
Typical Applications
- House of worship — sanctuaries requiring flown powered line array coverage with elegant suspended array aesthetics
- Auditorium — performing arts venues and multipurpose halls requiring permanent or semi-permanent flown line array systems
- All-hands room — large corporate assembly spaces requiring suspended line array reinforcement for general sessions
- Multi-purpose room — flexible commercial venues requiring flown powered line array systems for varied event configurations
- Training room — large event spaces requiring suspended high-output line array coverage
Technical Specifications
| Bundle Contents | 3 × JBL VRX932LAP, 1 × VRX-AF array frame |
|---|---|
| VRX932LAP Configuration | Powered 12-inch 2-way compact line array module |
| Amplifier | JBL DrivePack DPC-2 (Crown-designed), 1,750W peak per cabinet |
| DSP | Integrated DSP-based system optimization and EQ |
| LF Driver | JBL Neodymium Differential Drive 12-inch woofer |
| HF Drivers | 3 × JBL 2408J Annular Ring Diaphragm compression driver (per cabinet) |
| Array Frame | VRX-AF (included) |
| Deployment | Flown suspended array |
| Maximum Array Size | Up to 5 × VRX932LAP units |
Competitor Comparison
| Criterion | JBL VRX932LAP Array Bundle | QSC KLA12 Array System | RCF HDL 20-A Array | EV ELX200 Array |
|---|---|---|---|---|
| Deployment | Flown — VRX-AF array frame included | Flown — KLA AF8 frame | Flown — RCF array bar | Ground stack / flown options |
| Cabinet Count in Bundle | 3 × VRX932LAP | Varies by configuration | Sold individually | Sold individually |
| Peak Power per Cabinet | 1,750W (Crown DPC-2) | 1,000W | 1,400W | 1,200W |
| LF Driver | 12" Neodymium Differential Drive | 12" woofer | 12" woofer | 12" woofer |
| Max Array Size | 5 × VRX932LAP | Up to 6 × KLA12 | Configuration-dependent | Configuration-dependent |
| Target Use | Flown corporate, worship, performing arts | Flown live events, corporate | Flown live events | Portable and install events |
What's in the Box
- 3 × JBL VRX932LAP powered line array module
- 1 × JBL VRX-AF array frame
- Power cables and documentation for each component
Frequently Asked Questions
- What is the VRX-AF array frame used for?
- The VRX-AF array frame is the dedicated suspension structure for flying VRX932LAP cabinets in a line array configuration. It provides the rigging attachment and inter-cabinet angle adjustment needed to safely suspend and aim the array. All rigging should be performed by qualified personnel following JBL's load and safety guidelines.
- Can I add more cabinets to this bundle's array?
- Yes. The VRX932LAP supports arrays of up to five units. Additional cabinets can be added to extend SPL output and vertical coverage. Contact Creation Networks for array design consultation.
- Do the cabinets require external amplification?
- No. The VRX932LAP is self-powered with integrated Crown DPC-2 amplification.
- What warranty applies?
- JBL Professional products carry a limited manufacturer warranty. Contact Creation Networks for commercial warranty coordination.
