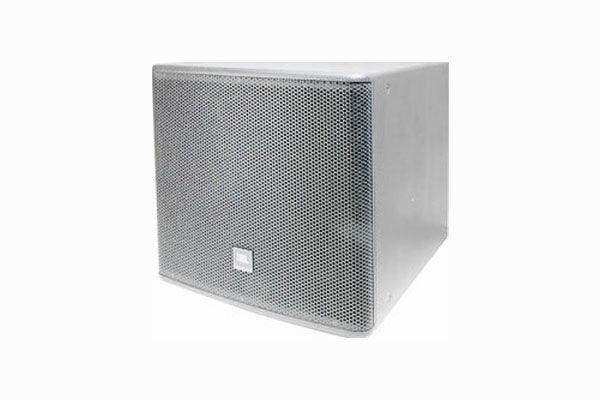

JBL PD566 - WH 15" Horn-Loaded Full-Range Loudspeaker System (60° x 60°, White)
JBL PD566 - WH 15" Horn-Loaded Full-Range Loudspeaker System (60° x 60°, White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
JBL PD566 - WH 15" Horn-Loaded Full-Range Loudspeaker System (...
Product Overview

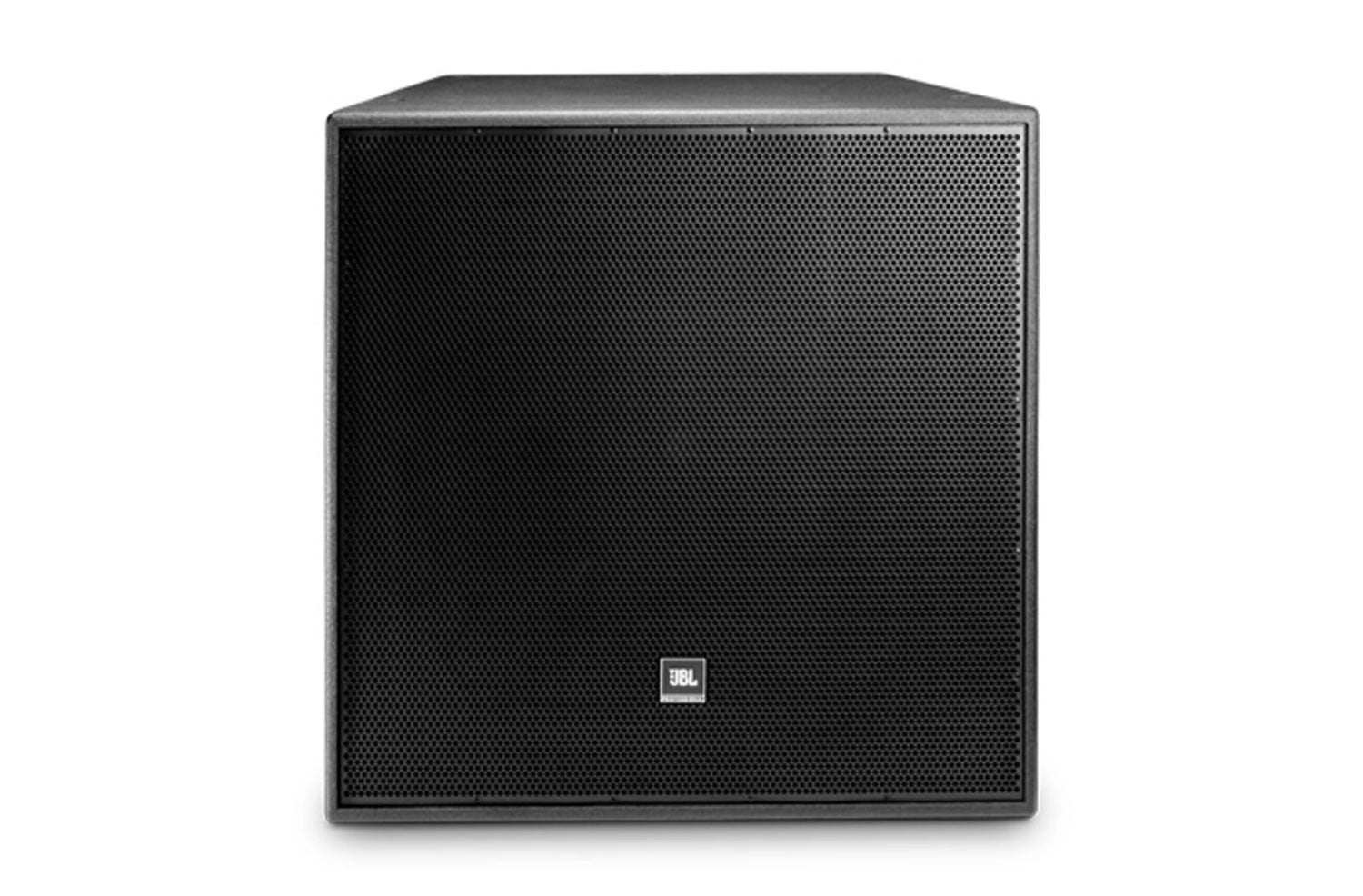

The JBL PD566-WH is a 15-inch horn-loaded full-range loudspeaker from JBL's Precision Directivity (PD) Series, engineered for high-output coverage in large-format permanent installations. It pairs a 15-inch low-frequency driver with a horn-loaded high-frequency section set to a 60° x 60° pattern. Its white finish blends into light architecture in auditoriums, houses of worship, and large venues.
Product Description

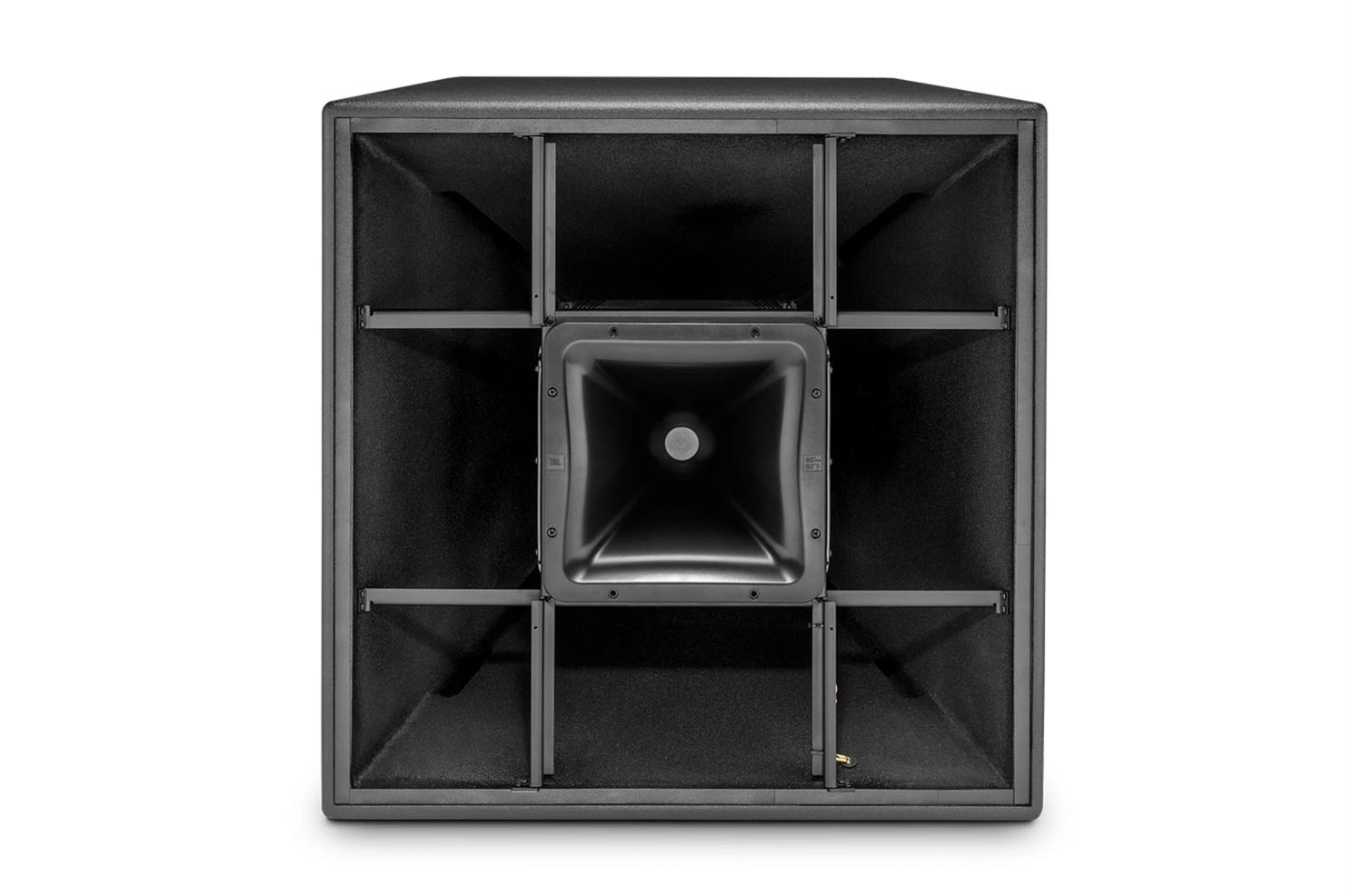

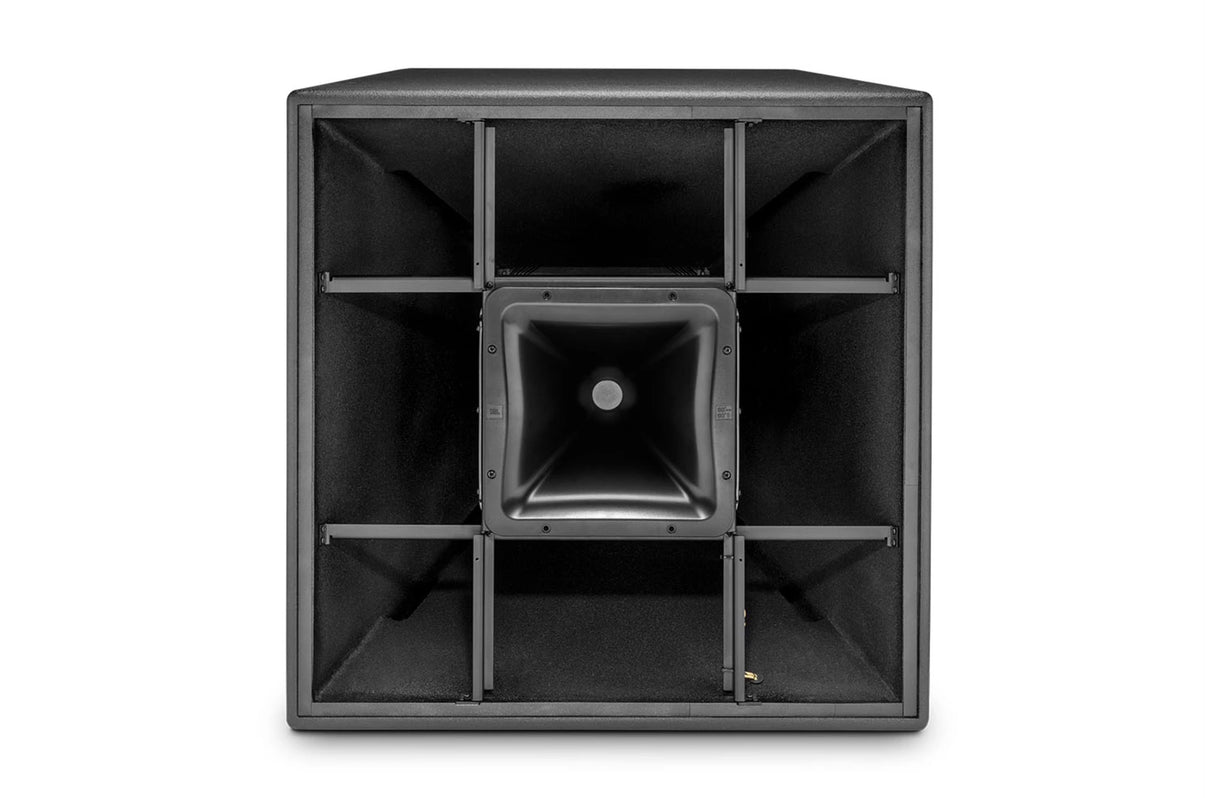

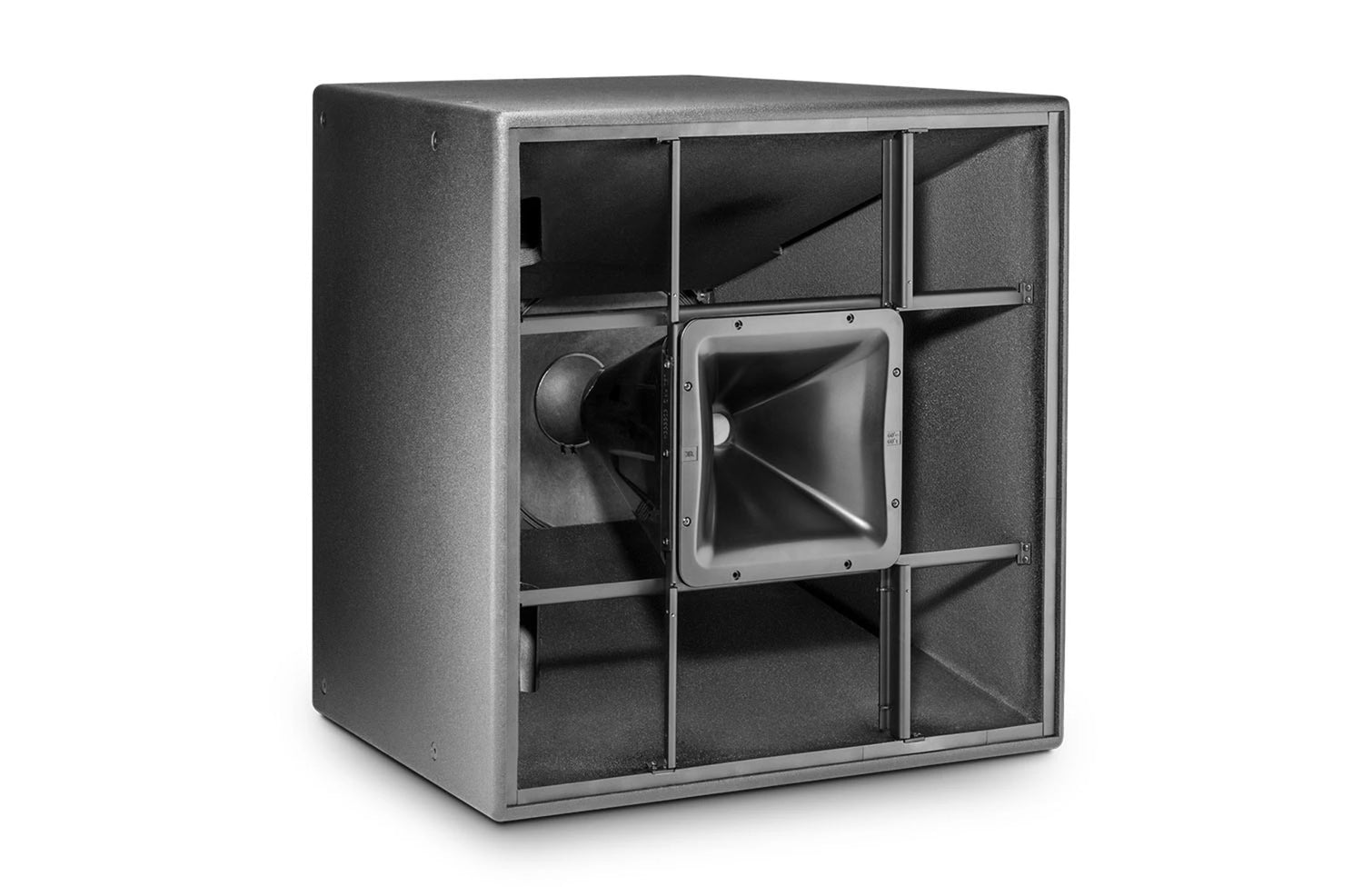

The PD566-WH uses precision horn loading to project audio with high efficiency and controlled directivity, and its symmetrical 60° x 60° pattern concentrates output for deeper rooms while controlling reflections. The rugged enclosure supports flown or ground-stacked installation with rigging hardware. As a passive loudspeaker it is driven from commercial amplification with appropriate processing. For more options, browse the JBL Professional Installed Audio collection.
Key Features
- 15" Horn-Loaded Full-Range — High-efficiency, high-output design for large venues.
- 60° x 60° Coverage — Symmetrical pattern for deeper rooms with controlled reflections.
- White Architectural Finish — Blends into light-colored venues.
- Rigging-Ready — Supports flown or ground-stacked installation.
Typical Applications
- Auditorium
- House of worship
- Multi-purpose room
- All-hands room
Technical Specifications
| System Type | Horn-loaded full-range passive loudspeaker |
| Low-Frequency Driver | 15 in |
| Coverage Pattern | 60° x 60° |
| Operation | Passive (external amplifier required) |
| Series | JBL PD (Precision Directivity) Series |
| Color | White |
Full electrical specifications (power handling, sensitivity, maximum SPL, frequency response, impedance) should be confirmed against the JBL PD566 specification sheet.
Frequently Asked Questions
Does the PD566-WH require an external amplifier?
Yes. It is a passive loudspeaker driven from commercial amplification with appropriate system processing.
What does the 60° x 60° pattern provide?
A symmetrical pattern that concentrates output for deeper rooms while limiting reflections.
What warranty and support apply?
Covered under JBL Professional's warranty. Contact Creation Networks at sales@creationnetworks.net for large-format system design support.
