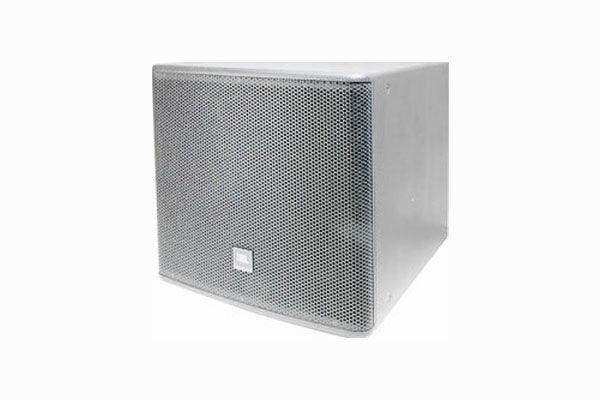

PD564 is a Precision Directivity loudspeaker designed for applications requiring high output capability with excellent pattern control. PD564 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full-range systems.
Key Features
- Horn-loaded low-frequency driver
- Large PT Progressive Transition waveguides provide broad band 60° x 40° pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable waveguide allows for either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
General
| Product Type | Speaker |
| Enclosure Color | White |
| Image Color Disclaimer | The displayed product image may be a different color |
| Enclosure Material | Birch plywood |
| Design Features | DuraFlex finish, trapezoidal design |
Speaker System
| Speaker Type | 2-way - passive |
| Nominal Output Power | 300 Watt |
| Max (RMS) Output Power | 500 Watt |
| Frequency Response | 50 - 20000 Hz |
| Nominal Impedance | 8 Ohm |
| Max Output Level (Max SPL) | 139 dB |
| Sensitivity | 105 dB |
| Crossover Frequency | 1200Hz |
| Coverage | 60° x 40° |
Speaker System Details
| Driver Details | Speaker: woofer driver - 15" - Horn Speaker: tweeter driver - 1.5" - neodymium - aluminum - Horn Loaded Compression Driver (HLCD) |
Dimensions & Weight
| Width | 30.8 in |
| Depth | 26.4 in |
| Height | 30.8 in |
| Weight | 152.12 lbs |
