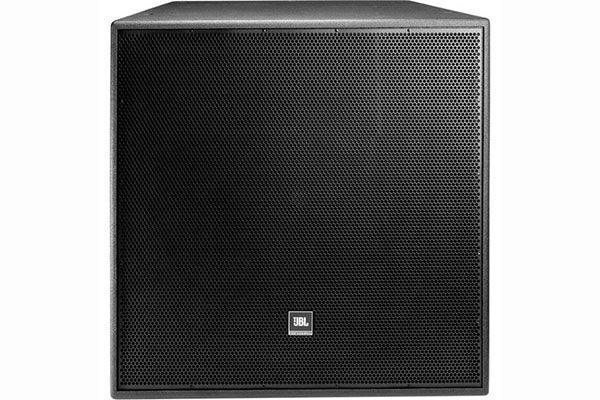

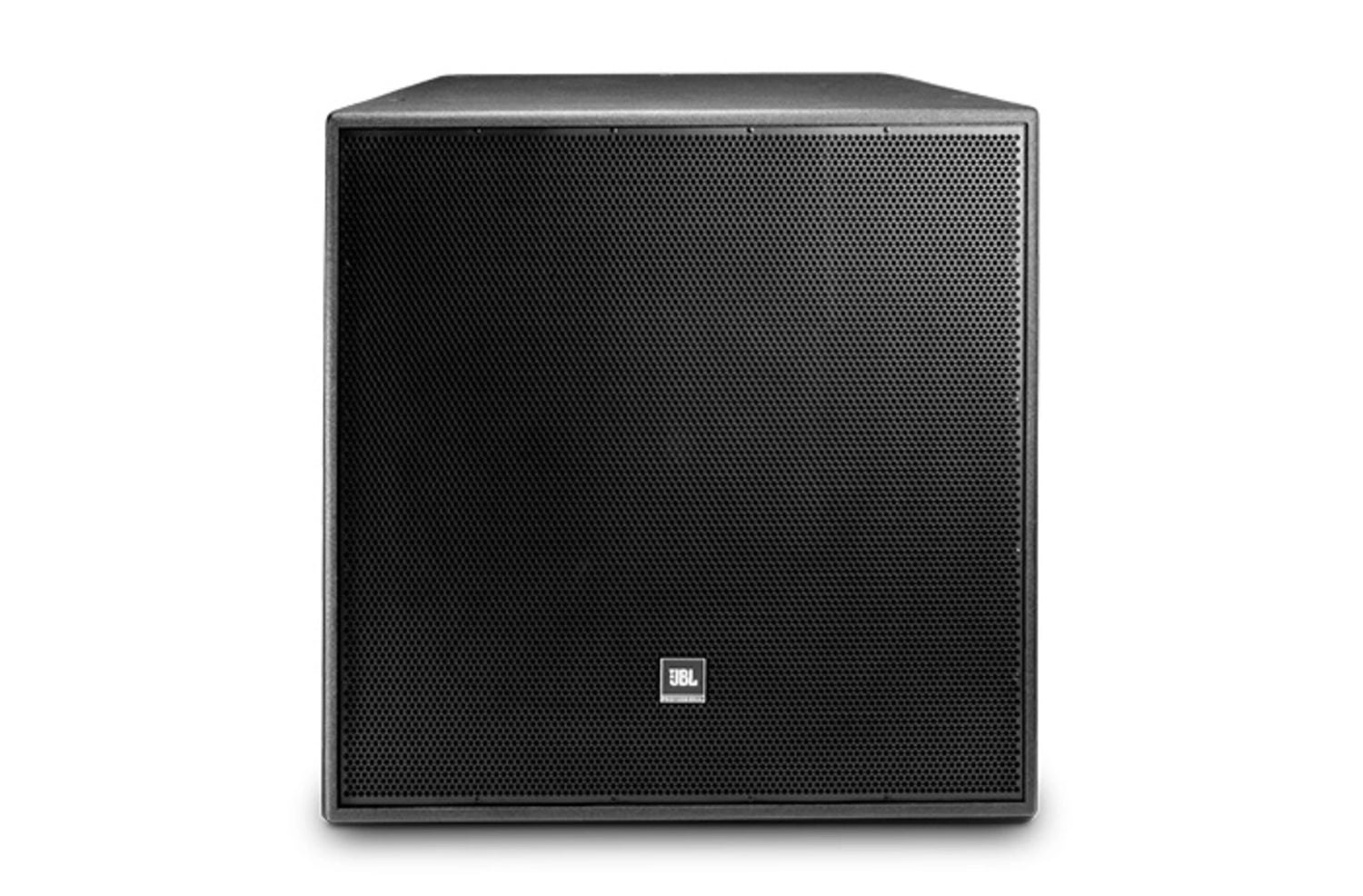

JBL PD564 15" Horn-Loaded Full-Range Loudspeaker System (60° x 40°, Black)
JBL PD564 15" Horn-Loaded Full-Range Loudspeaker System (60° x 40°, Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
JBL PD564 15" Horn-Loaded Full-Range Loudspeaker System (60° x...
Product Overview
The JBL PD564 is a 15-inch horn-loaded full-range loudspeaker from JBL's Precision Directivity (PD) Series, engineered for high-output coverage in large-format permanent installations. It pairs a 15-inch low-frequency driver with a horn-loaded high-frequency section set to a 60° x 40° pattern for auditoriums, houses of worship, and large venues.
Product Description

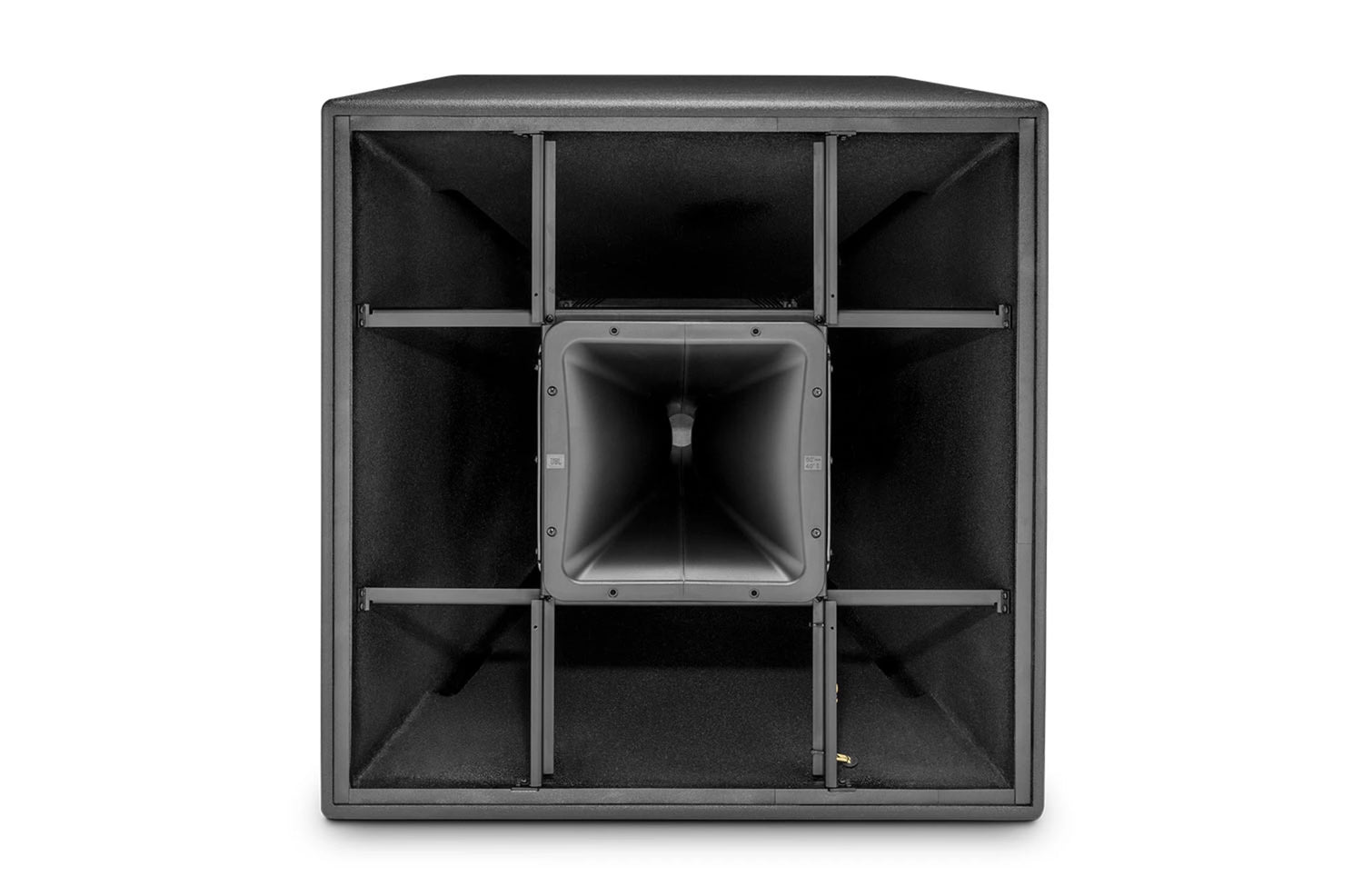

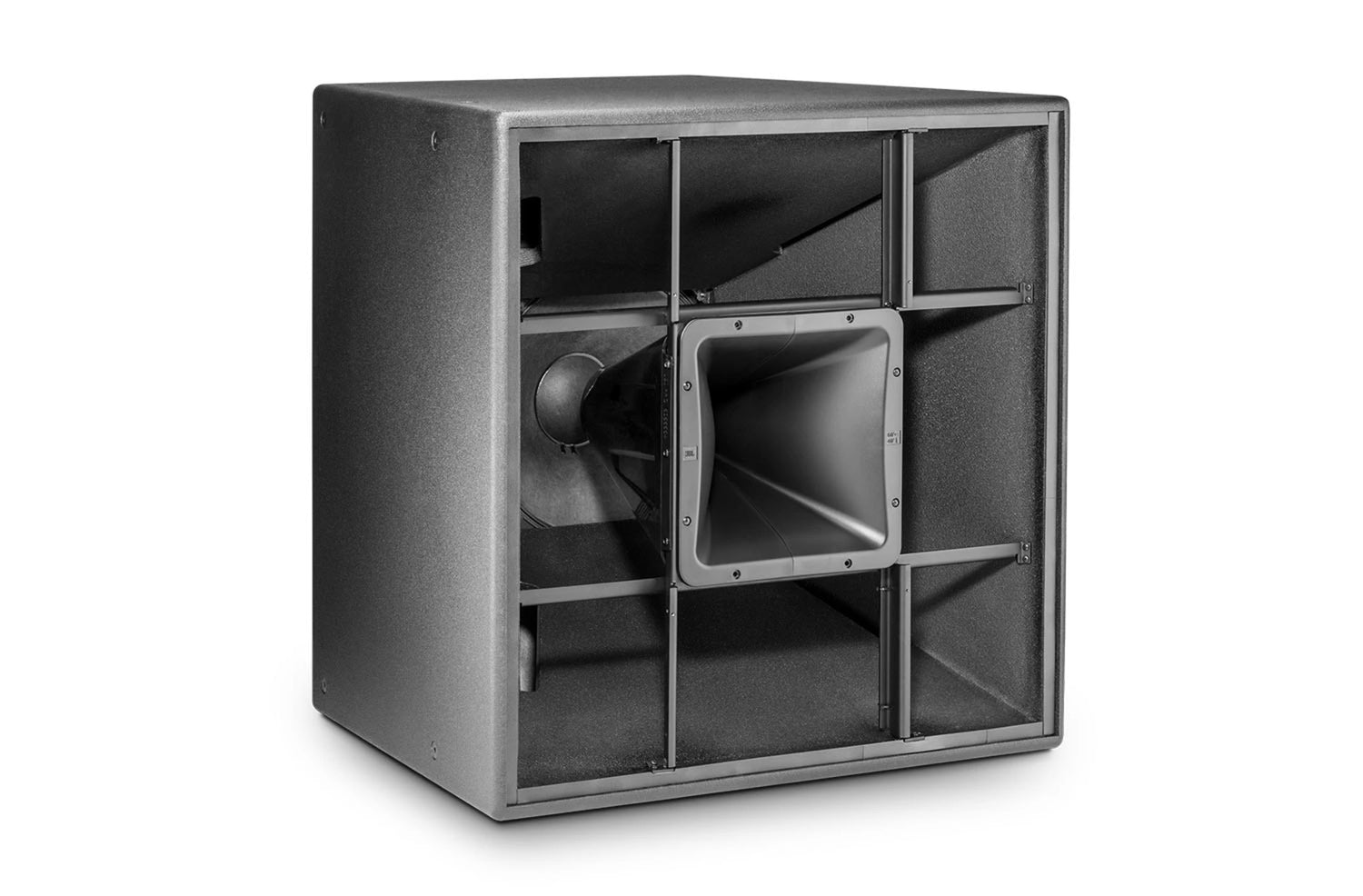

The PD564 uses precision horn loading to project audio with high efficiency and controlled directivity, and its 60° x 40° pattern balances throw and width for medium-to-large rooms. The rugged enclosure supports flown or ground-stacked installation with rigging hardware. As a passive loudspeaker it is driven from commercial amplification with appropriate processing. For more options, browse the JBL Professional Installed Audio collection.
Key Features
- 15" Horn-Loaded Full-Range — High-efficiency, high-output design for large venues.
- 60° x 40° Coverage — Balanced throw and width for medium-to-large rooms.
- Precision Directivity — Controlled coverage across the listening area.
- Rigging-Ready — Supports flown or ground-stacked installation.
Typical Applications
- Auditorium
- House of worship
- Multi-purpose room
- All-hands room
Technical Specifications
| System Type | Horn-loaded full-range passive loudspeaker |
| Low-Frequency Driver | 15 in |
| Coverage Pattern | 60° x 40° |
| Operation | Passive (external amplifier required) |
| Series | JBL PD (Precision Directivity) Series |
| Color | Black |
Full electrical specifications (power handling, sensitivity, maximum SPL, frequency response, impedance) should be confirmed against the JBL PD564 specification sheet.
Frequently Asked Questions
Does the PD564 require an external amplifier?
Yes. It is a passive loudspeaker driven from commercial amplification with appropriate system processing.
What does the 60° x 40° pattern provide?
A balanced pattern offering both throw and width for medium-to-large rooms.
What warranty and support apply?
Covered under JBL Professional's warranty. Contact Creation Networks at sales@creationnetworks.net for large-format system design support.
