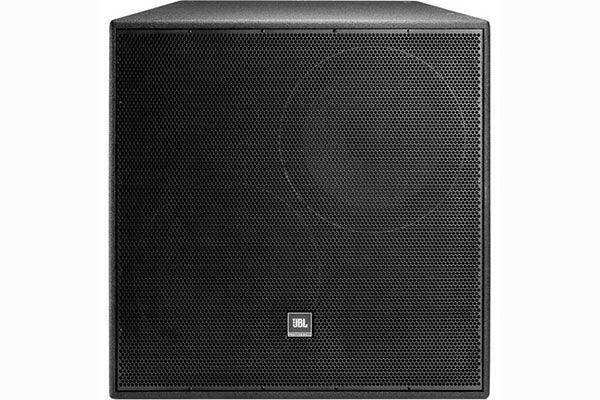

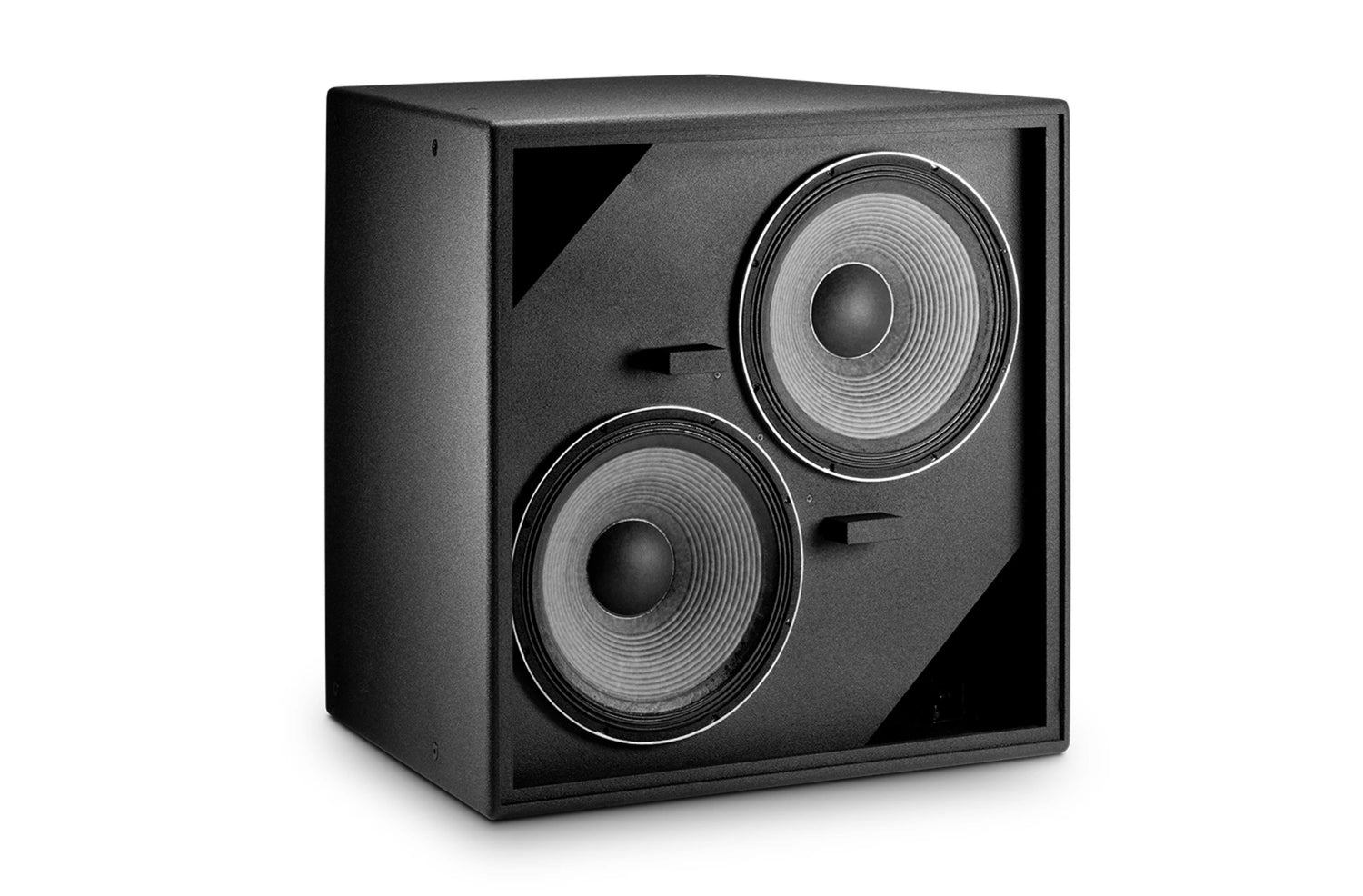

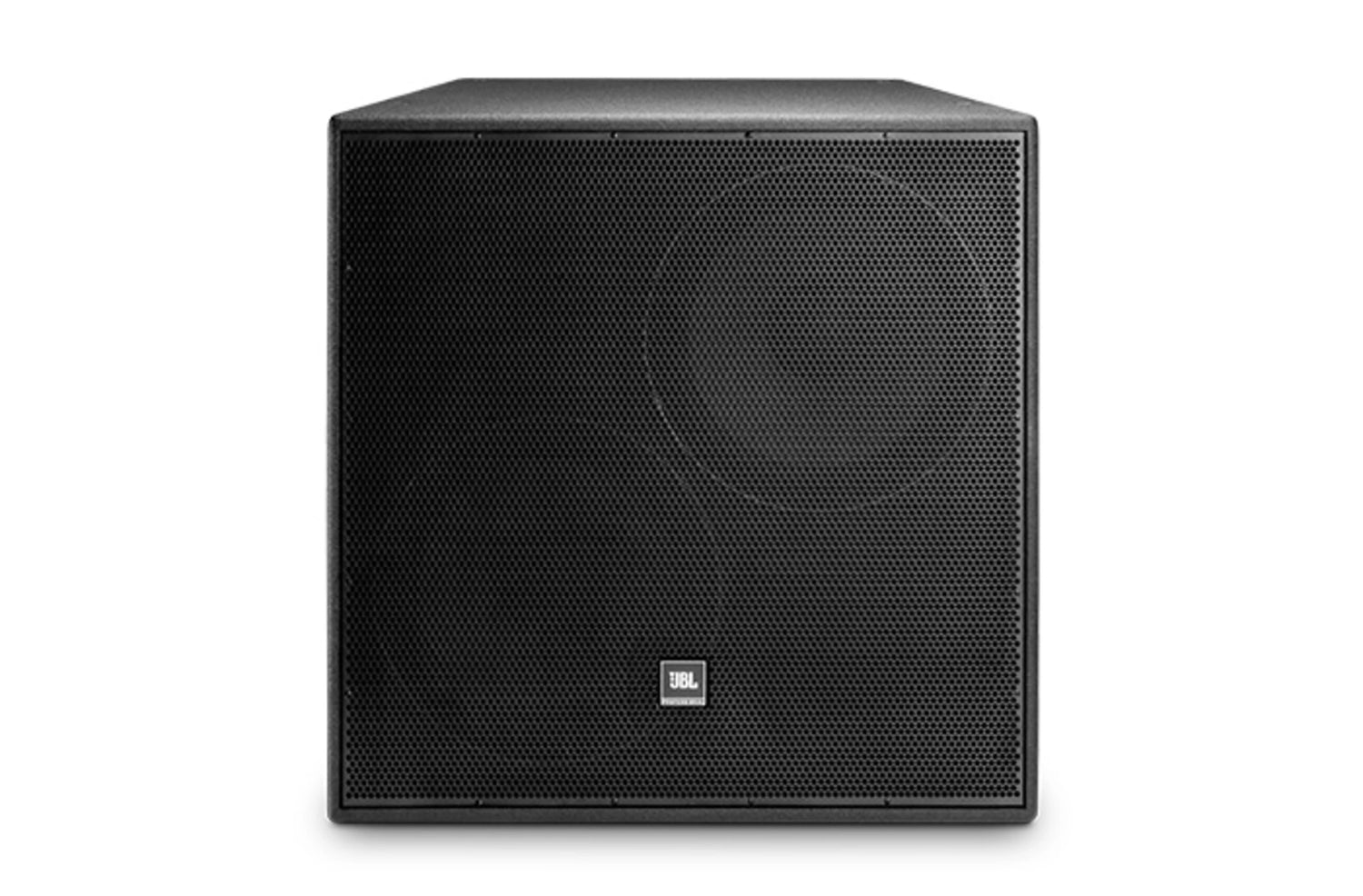

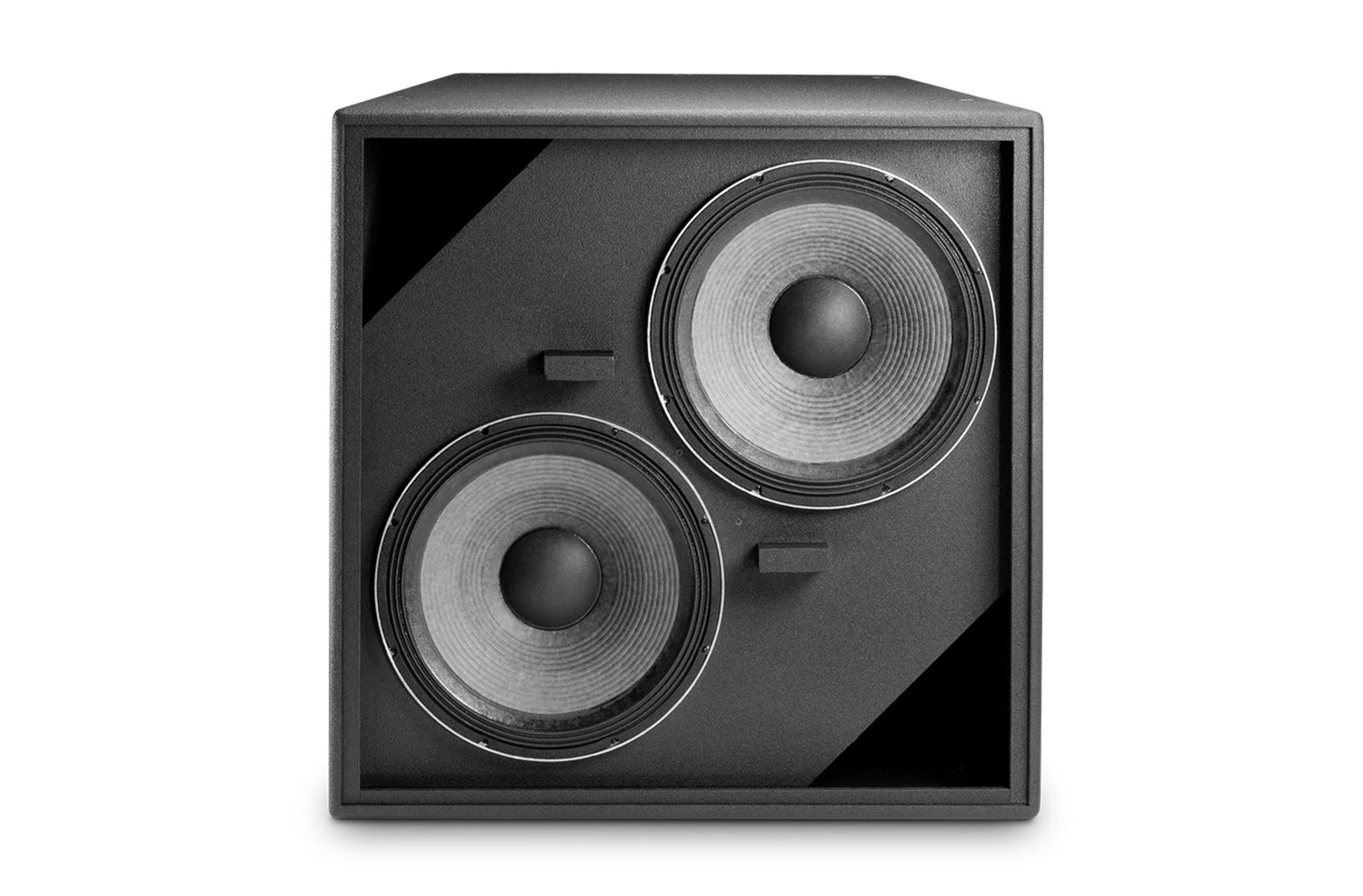

The PD525S is a high power low frequency loudspeaker comprised of two 380 mm (15 in) dual coil - dual gap differential drive low frequency drivers in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points.
Key Features
- Two high power 380 mm (15 in) low frequency drivers
- Low frequency extension to 40 Hz
- Enclosure dimensions compatible with all PD500 series models
General
| Product Type | Subwoofer - for PA system |
| Protection | Weatherproof |
| Enclosure Color | Black |
| Enclosure Design | Bass reflex |
| Enclosure Material | Birch plywood |
| Design Features | DuraFlex finish, trapezoidal design |
Speaker System
| Speaker Type | Passive |
| Speaker Diameter | 15" |
| Nominal Output Power | 2000 Watt |
| Max (RMS) Output Power | 8000 Watt |
| Frequency Response | 28 - 3800 Hz |
| -3dB Frequency Response | 40 - 1100 Hz |
| Nominal Impedance | 4/8 Ohm |
| Max Output Level (Max SPL) | 135 dB |
| Sensitivity | 102 dB |
Speaker System Details
| Speakers Included | 1 x subwoofer - 2000 Watt - 28 - 3800 Hz - 4/8 Ohm - wired |
| Driver Details | Speaker: 2 x subwoofer driver - 15" - Differential Drive |
Miscellaneous
| Compliant Standards | MIL-STD-810, IPX3 |
Dimensions & Weight
| Width | 30.8 in |
| Depth | 26.4 in |
| Height | 30.8 in |
| Weight | 117.73 lbs |
