JBL NCSMA280-U-US Commercial Series Mixer/Amplifier

Availability: Call for Availability
Availability: Direct Ship
JBL SKU: CSMA280
No reviews
Price:
$785.00 $1,224.76

Description

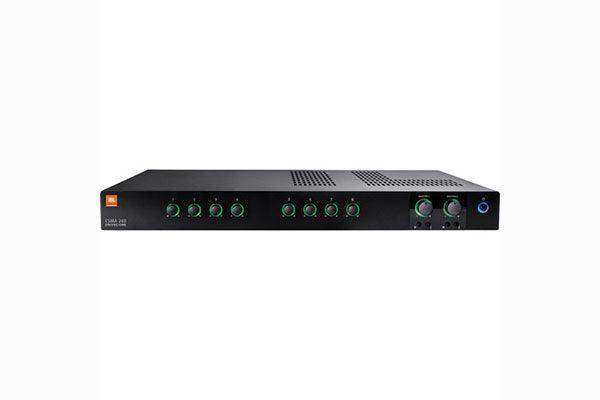

Designed for commercial and industrial use, the CSMA 280 Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with eight mixer-channel inputs and two output channels. It's capable of reaching 80W of peak power with 10W per channel. The unit's front panel sports volume controls for each channel, as well as two master volume adjustment knobs, two sets of bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments.

Amplifier
Form Factor/Type Rackmount
Number of Channels 8 Input / 2 Output
Power Rating 4 Ohms / 8 Ohms:
80 W Peak per Channel (1 kHz, 0.5% THD)
10 W RMS per Channel
Load Impedance / Voltage 4 Ohms (Minimum)
70 V (60 Ohms Minimum)
100 V (120 Ohms Minimum)
Performance
Frequency Response Amplifier:
20 Hz to 20 kHz ±2 dB (Low-Z)
80 Hz to 15 kHz ±2 dB (70/100 V)
Line Output:
20 Hz to 20 kHz ±1 dB
Input Sensitivity Mic:
3 mVrms
Line:
775 mVrms
RCA:
300 mVrms
I/O Impedance Mic Input:
400 Ohms
Line Input:
20 Kilohms (Balanced)
RCA Input:
50 Kilohms
Output Level Line Output:
5 Vrms (10-Kilohm Load)
Insertion Loss 1 dB Maximum
SNR > 90 dB
THD < 0.5% (20 Hz to 20 kHz, Main Output)
0.05% (Line Output)
Crosstalk -70 dB (1 kHz)
Signal Processing
EQ 2-Band
Connectivity

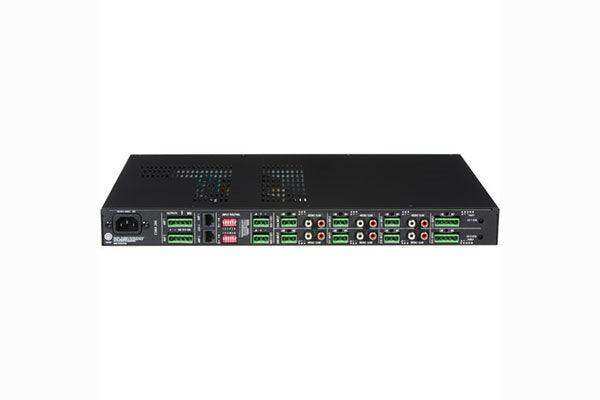

Audio I/O 2 x Block 5-Pin Balanced Line/Mic Input
6 x Block 3-Pin Balanced Line/Mic Input
6 x Stereo RCA 5-Pin Unbalanced Summed-Mono Input
2 x Block 3-Pin Balanced Aux Output
Other I/O 2 x RJ45 Remote/Volume
Phantom Power 27 VDC
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC Power Connector 1 x IEC
Physical
Rackmount Size 1 RU
Operating Temperature 32 to 95°F / 0 to 35°C
Storage Temperature -4 to 185°F / -20 to 85°C
Operating Humidity 0 to 95% (Non-Condensing)
Dimensions 17.2 x 1.7 x 11.9" / 436.9 x 43.2 x 302.3 mm
Weight 11.9 lb / 5.4 kg
