JBL NCSMA180-U-US Commercial Series Mixer/Amplifier

Availability: Call for Availability
Availability: Direct Ship
JBL SKU: CSMA180
No reviews
Price:
$543.00 $839.66

Description

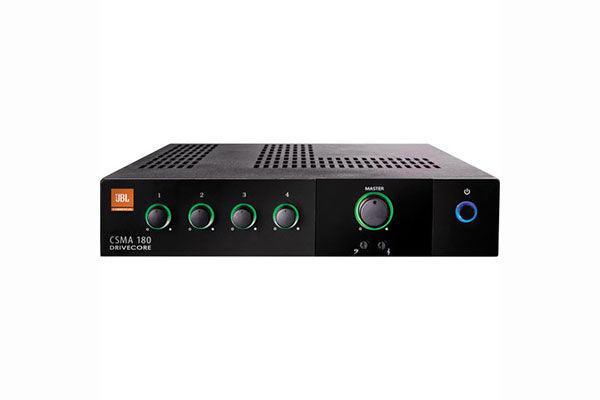

Designed for commercial and industrial use, the CSMA 180 Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with four mixer-channel inputs and one output channel. It's capable of reaching 80W of peak power with 10W per channel. The unit's front panel sports volume controls for each channel, as well as a master volume adjustment knob, bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments.

Form Factor/Type Tabletop
Number of Channels 4 Input / 1 Output
Power Rating 4 Ohms / 8 Ohms:
80 W Peak per Channel (1 kHz, 0.5% THD)
10 W RMS per Channel
Load Impedance / Voltage 4 Ohms (Minimum)
70 V (60 Ohms Minimum)
100 V (120 Ohms Minimum)
Frequency Response Amplifier:
20 Hz to 20 kHz ±2 dB (Low-Z)
80 Hz to 15 kHz ±2 dB (70/100 V)
Line Output:
20 Hz to 20 kHz ±1 dB
Input Sensitivity Mic:
3 mVrms
Line:
775 mVrms
RCA:
300 mVrms
I/O Impedance Mic Input:
400 Ohms
Line Input:
20 Kilohms (Balanced)
RCA Input:
50 Kilohms
Output Level Line Output:
5 Vrms (10-Kilohm Load)
VCA Control Yes
Insertion Loss 1 dB Maximum
SNR > 90 dB
THD < 0.5% (20 Hz to 20 kHz, Main Output)
0.05% (Line Output)
Crosstalk -70 dB (1 kHz)
DSP Yes
EQ 2-Band
Compressor Yes
Limiting Yes

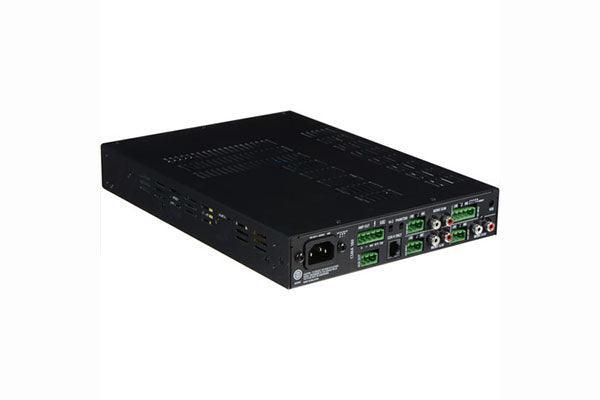

Audio I/O 1 x Block 3-Pin Aux/Line Output
3 x Block 3-Pin Line/Mic Input
3 x Stereo RCA Unbalanced Input
1 x Block 5-Pin Priority Input
Digital Audio I/O None
Network I/O None
Other I/O 1 x RJ45 Remote/Volume
Speaker Outputs 1 x Block 5-Pin 4-Ohm/8-Ohm/16-Ohm/70 V/100 V Main
Number of Module Slots None
USB None
Phantom Power 27 VDC
Bluetooth Yes
Media/Memory Card Slot None
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC Power Connector 1 x IEC
AC Outlet Yes
Rackmount Size 1 RU (1/2-Rack)
Operating Temperature 32 to 95°F / 0 to 35°C
Storage Temperature -4 to 185°F / -20 to 85°C
Operating Humidity 0 to 95% (Non-Condensing)
Dimensions 8.6 x 1.7 x 11.9" / 21.9 x 4.3 x 30.3 cm
Weight 6.8 lb / 3.1 kg
