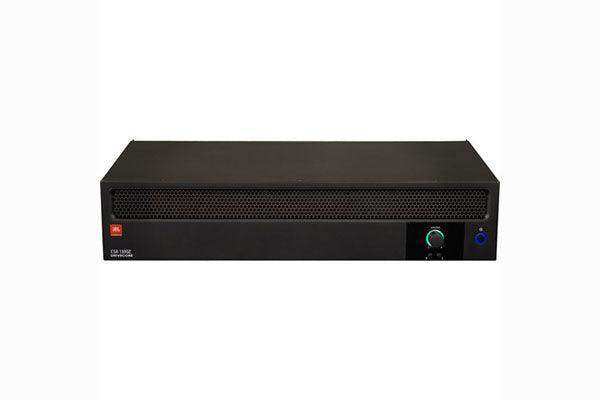

JBL NCSA1300Z-0-US CSA 1300Z Single-Channel 300W Amplifier

Availability: Call for Availability
Availability: Direct Ship
JBL SKU: CSA1300Z
No reviews
Price:
$661.00 $842.11

Description

Built for installed sound applications, the CSA 1300Z Single-Channel 300W Amplifier from JBL delivers powerful sound and efficient performance using the Crown’s DriveCore commercial power amplifier technology. Simple to configure, this amplifier provides a DriveCore-based sound solution, which utilizes one small chip that significantly reduces the part count and increases reliability while still maintaining high performance. It provides amplification with a choice of low impedance, 70V or 100V outputs. The amp includes a rack mounting kit for installations to a cabinet, and a RJ45 connector for an optional remote volume control using JBL's CSR-V control module.

Number of Channels 1
Power Rating 4 Ohms / 8 Ohms:
300 W (1 kHz, 0.5% THD)
Load Impedance / Voltage 4 Ohms (Minimum)
70 / 100 V
Performance
Frequency Response 20 Hz to 20 kHz ±1 dB (8 Ohms)
Input Sensitivity Line:
775 mVrms (Balanced, at 8 Ohms)
RCA:
300 mV (at 8 Ohms)
Input Impedance Block:
20 Kilohms (Balanced)
RCA:
10 Kilohms
SNR > 97 dBA
THD < 0.5% (Full Range, at Rated Power)
Crosstalk < -70 dBA (1 kHz)
Signal Processing
DSP Yes
Crossover Yes
EQ 2-Band
Compressor Yes
Limiting Yes
Connectivity

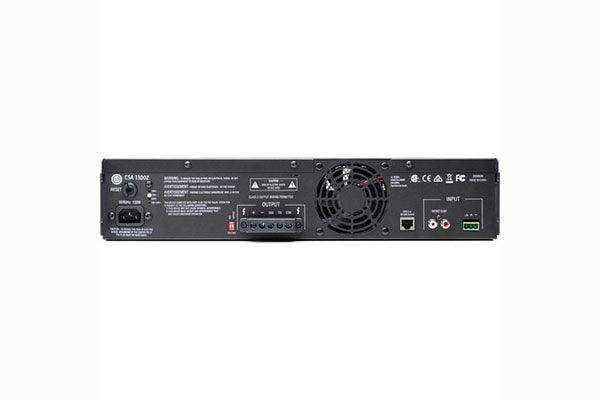

I/O 1 x Block 3-Pin Balanced/Unbalanced Input
1 x 2RCA TS Unbalanced Summed-Mono Input
1 x Barrier Strip 2-Pin Output
Phantom Power Yes
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Physical
Operating Temperature 32 to 95°F / 0 to 35°C
Storage Temperature -4 to 185°F / -20 to 85°C
Dimensions 17.0 x 11.0 x 3.5" / 43.0 x 27.0 x 8.9 cm
Weight 13.1 lb / 5.9 kg

At Creartion Networks, we do everything we can to create an excellent customer experience. This includes fast shipping and easy returns.

  • Most in-stock orders placed Monday-Friday before 1PM PST ship the same day. Orders placed after 1PM will ship the next day of business. General restrictions apply; please see our full shipping policy here.
  • We offer a 30-day return policy from the delivery date on many products. Product restrictions apply. Restocking fees for the return of open-box items. Please see our full return policy here for more information.
