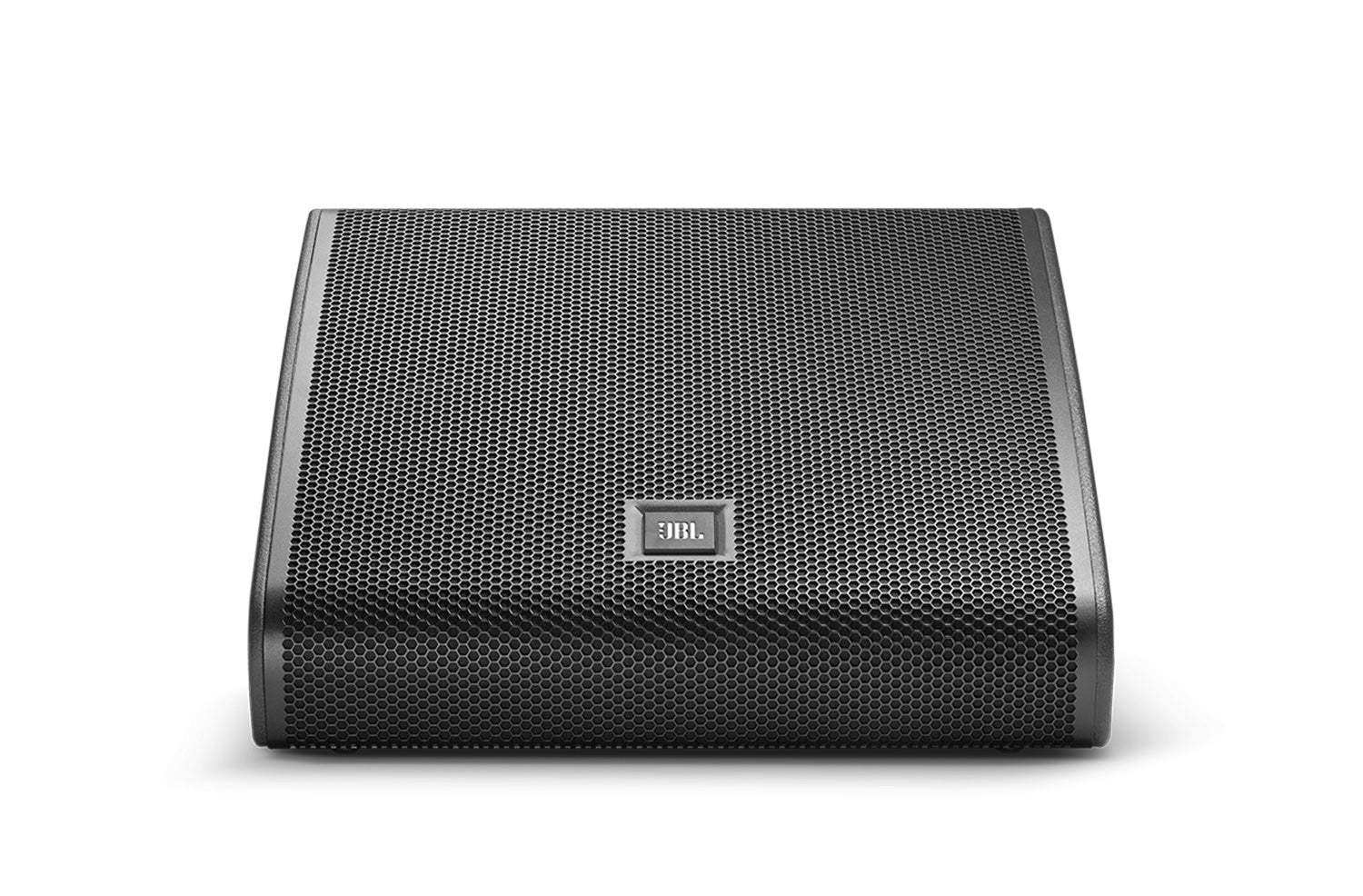

- Elegant, low profile, compact design suitable for touring and high profile broadcast applications
- State of the art JBL transducers, including Differential Drive™ cone transducers and D2 dual diaphragm dual voice coil compression driver
- 60x60 High Frequency Waveguide featuring JBL's patented Image Control Waveguide Technology
- Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment
Specifications

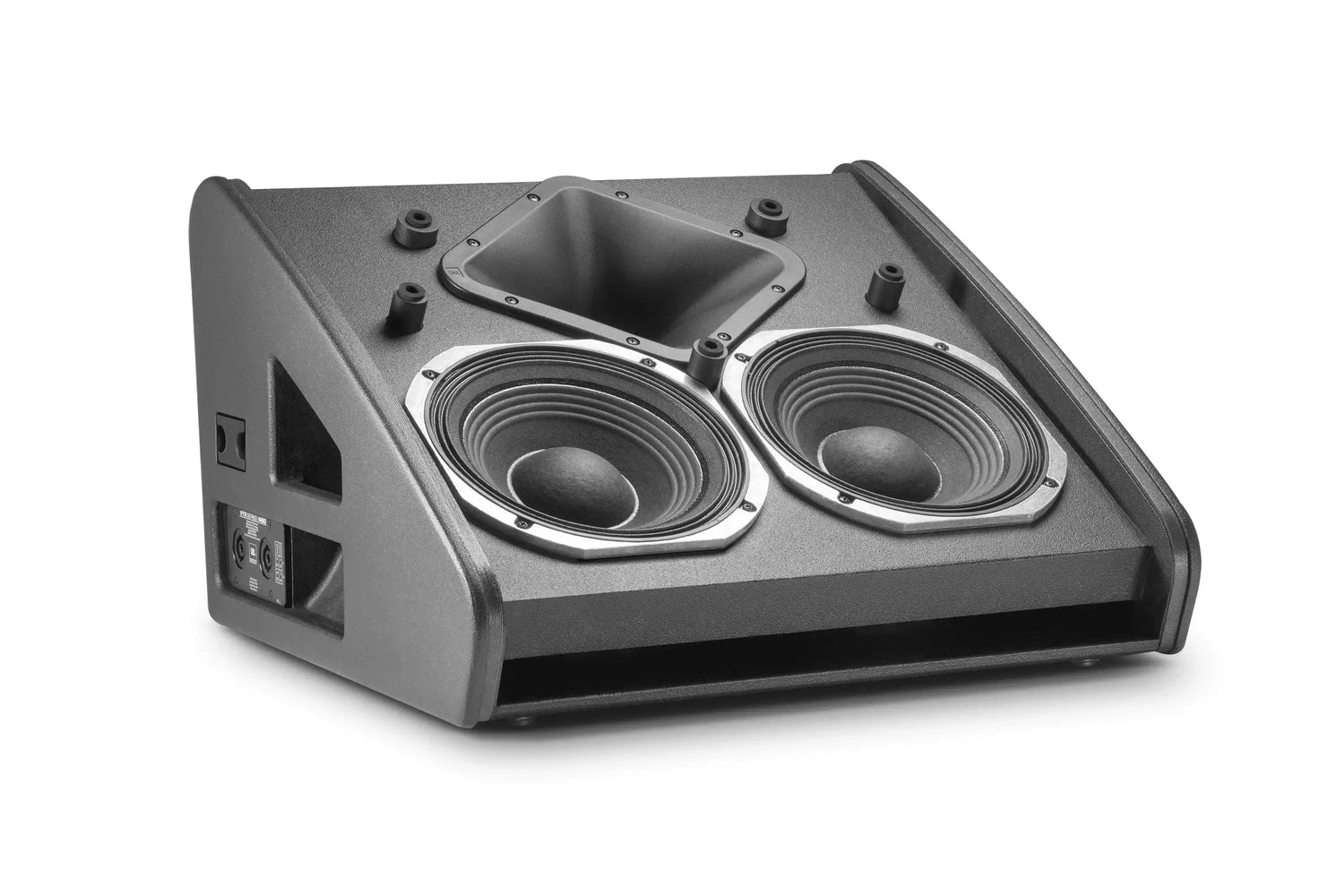

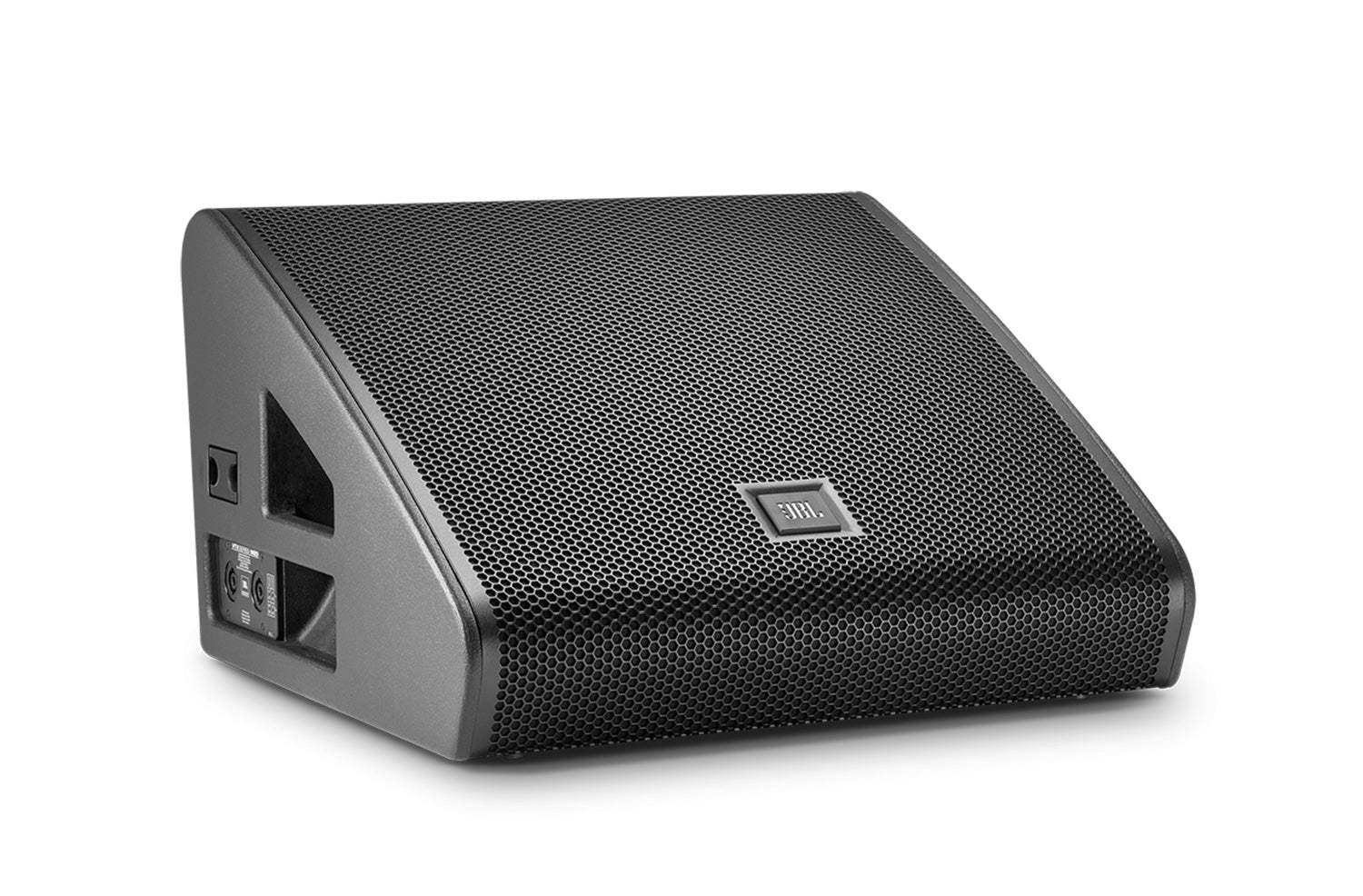

| Frequency Range (-10dB) | 55 Hz - 19.5 kHz |
| Coverage Pattern (-6 dB) | Horizontal: 60; Vertical: 60 |
| System Input Power Rating | Passive: 1250 W Continuous (IEC / 100 hour) Active: LF: 1250 W Continuous (IEC / 100 hour) HF: 100 W Continuous (IEC / 100 hour) |
| Maximum SPL (1m) | 136dB (Preset: VTX M20 FR) |
| System Latency3 | 3.33ms |
| System Processing | Crown Audio I-Tech HD Series Crown Audio I-Tech 4x3500HD |
| Nominal Impedance | Passive: 4 ohms Active LF: 4 ohms Active HF: 8 ohms |
| LF Driver | 2 x 2261H, 254 mm (10 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD®, Direct Cooled™ |
| HF Driver | 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil |
| Monitor Angle | 30 degrees |
| Enclosure | 18 mm, 11-ply Finnish birch plywood |
| Grille | Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing |

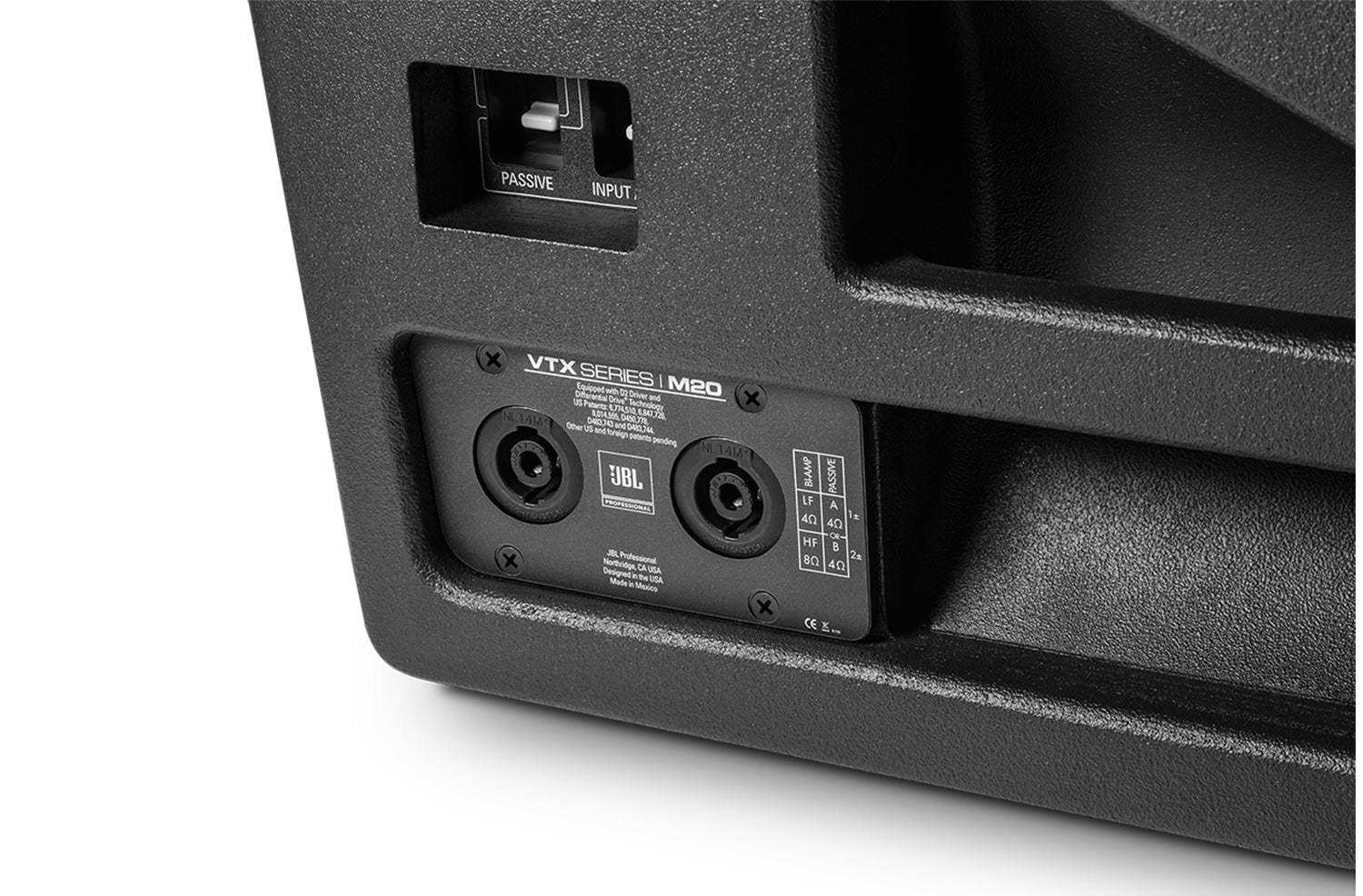

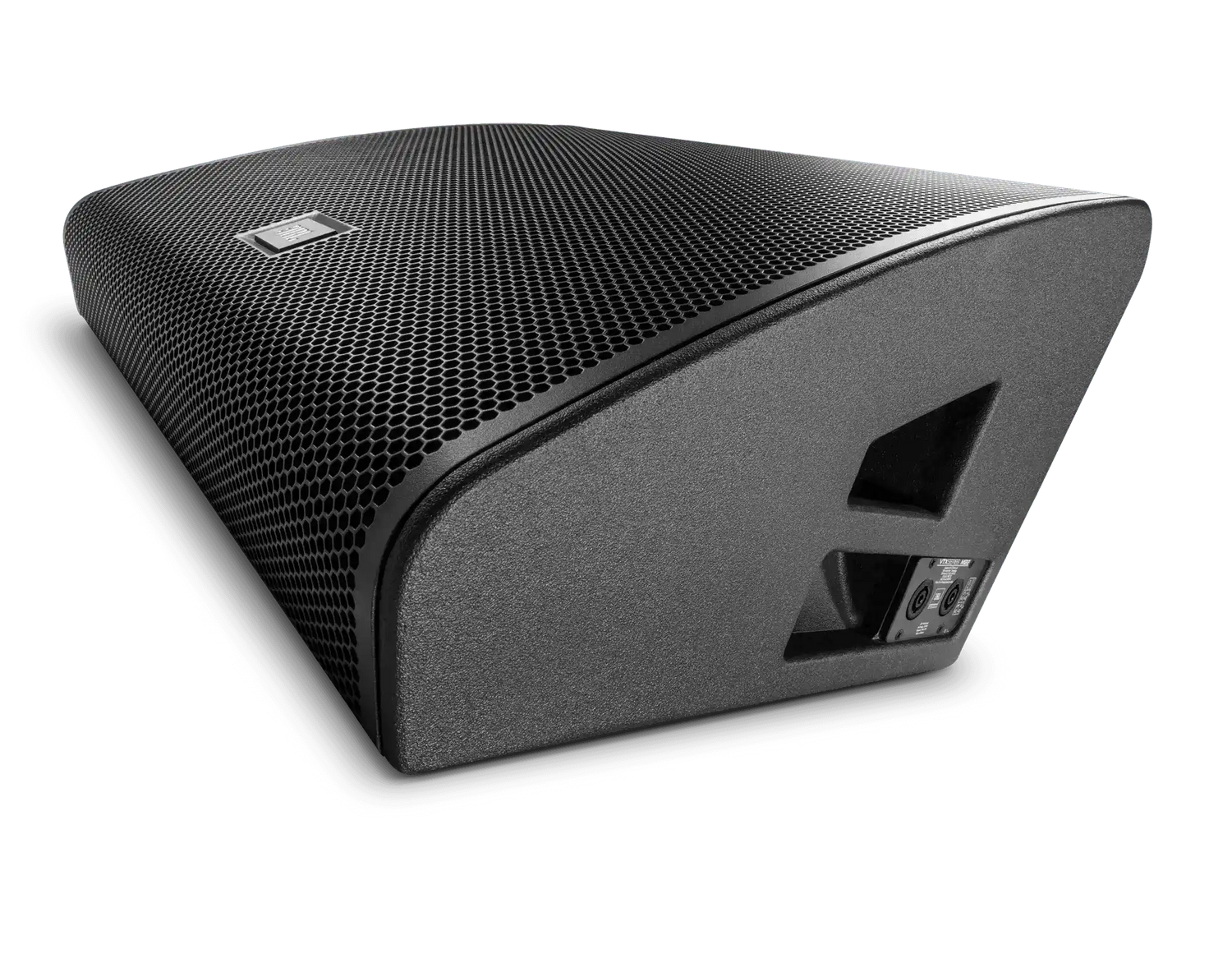

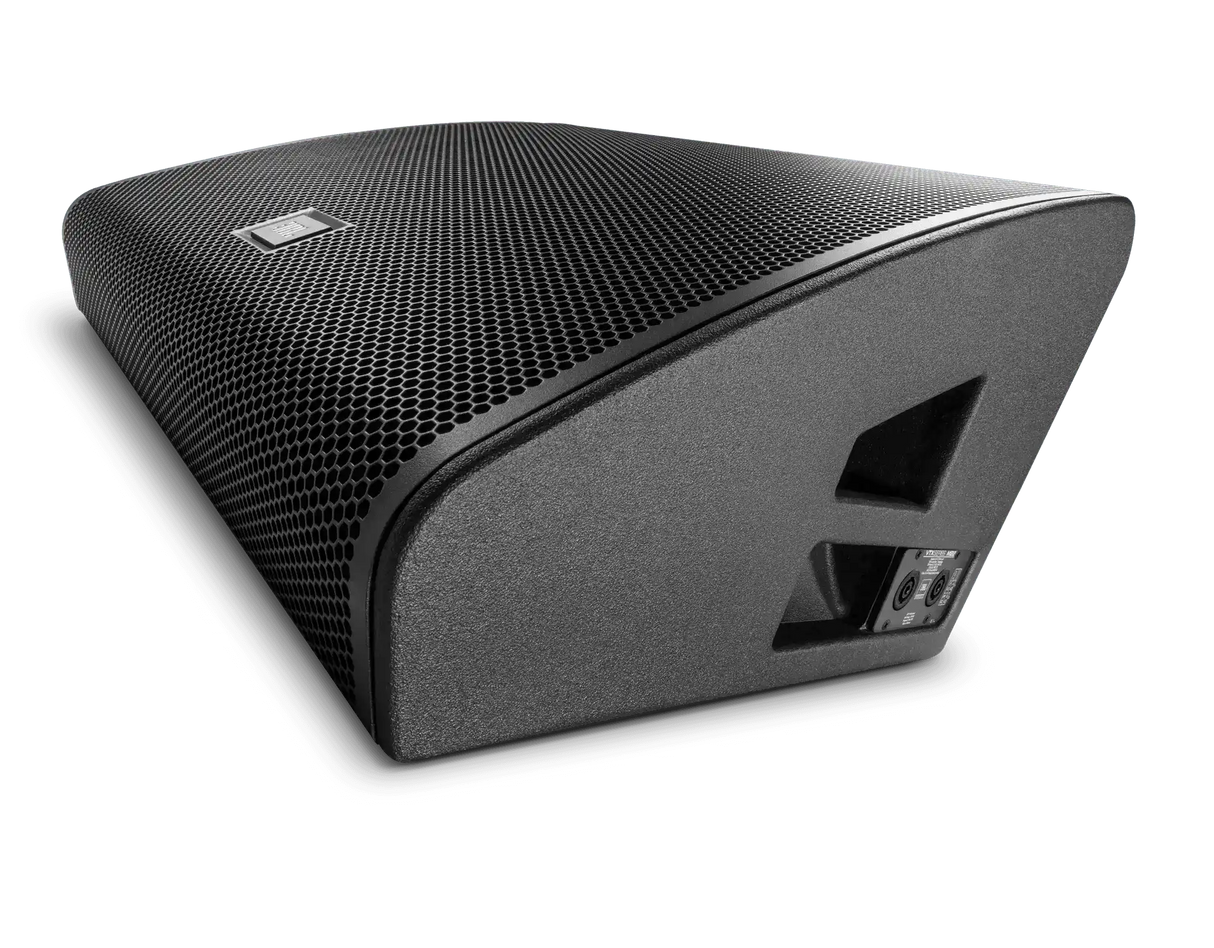

| Input Connectors | Passive: Neutrik® Speakon® NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ± Active: Neutrik® Speakon® NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF) |
| Dimensions (H x W x D) | 342.9 mm x 575.0 mm x 515.3 mm (13.6 in x 22.6 in x 20.3 in) |
| Net Weight (each) | 23 kg (51 lbs) |
