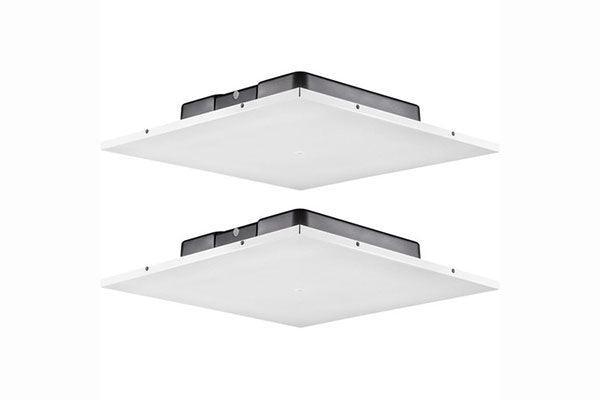

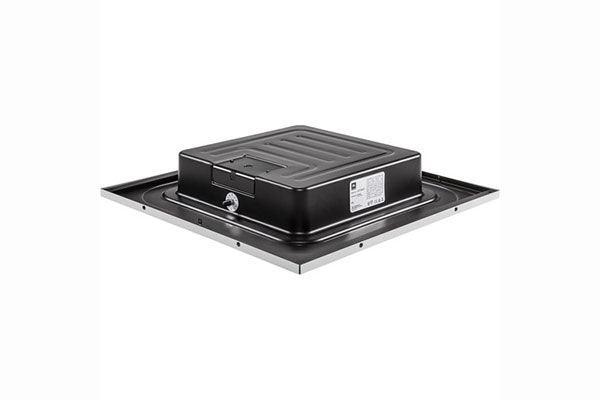

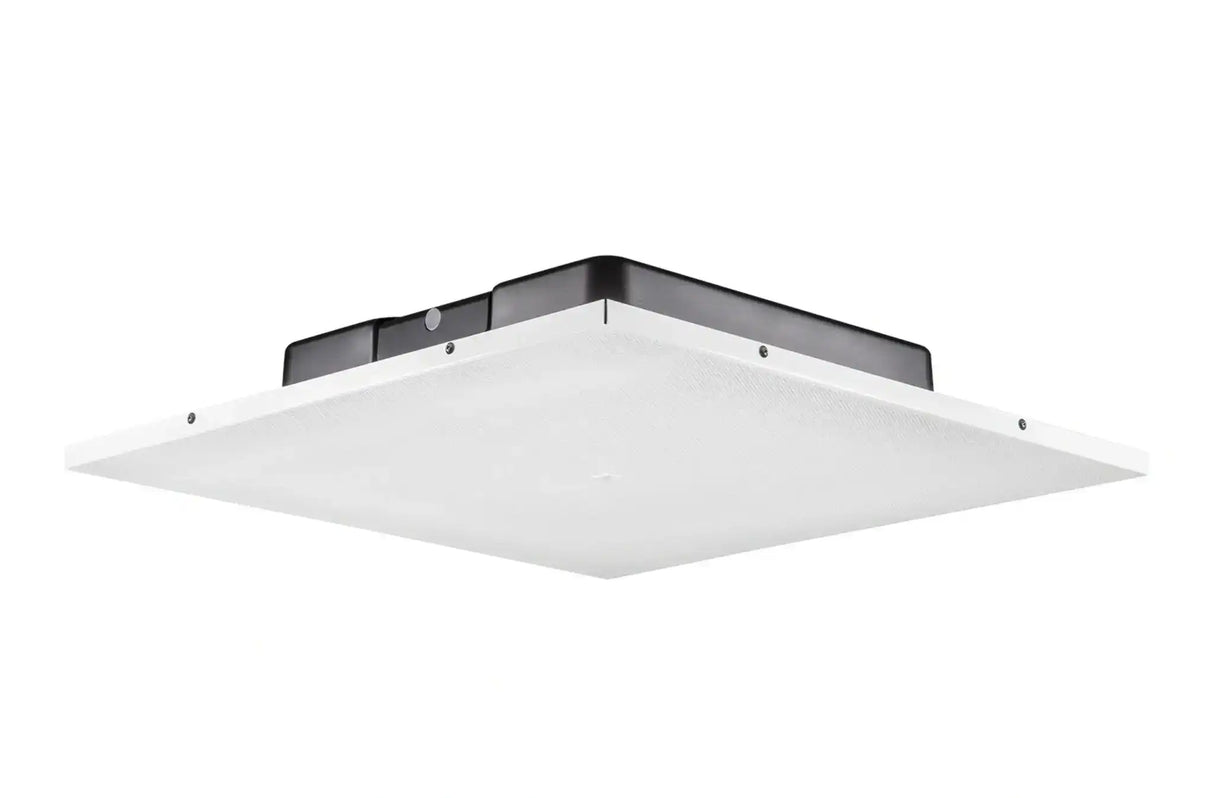

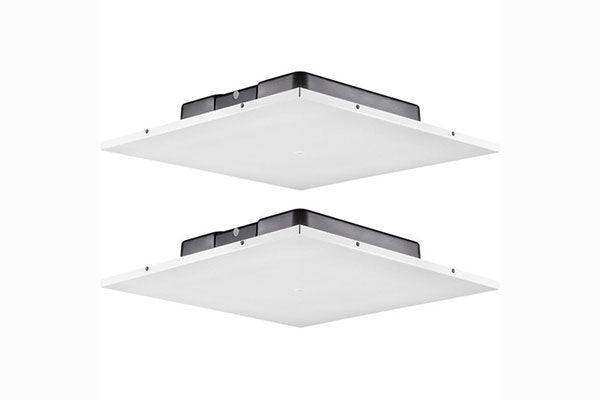

JBL LCT 81C/T Low-Profile Lay-In 2 x 2' Ceiling Tile Loudspeaker (2-Pack, White)

Availability: Call for Availability
Availability: Direct Ship
JBL SKU: LCT81C/T
No reviews
Price:
$266.00 $333.53

Description

(Sold as pair)

The JBL LCT 81C/T full-range 2 x 2' ceiling tile loudspeaker (2-pack) is well suited for a variety of applications including classrooms, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, meeting rooms, and more. Designed for quick and easy installation, each tile is suspended in a ceiling grid with no cutting necessary. With a depth of only 4", the LCT 81C/T fits into locations where deeper loudspeakers do not.

Each tile is fitted with a highly efficient 8" dual-cone driver with a Kapton coil-former, which utilizes a high-temperature wire for better power dissipation and long-term reliability. The speaker's built-in 10-watt transformer provides versatility by allowing use on 100 or 70V distributed loudspeaker lines as well as at 8 ohms (low impedance) for driving directly from a low-impedance power amplifier. Adjusting is convenient via a rotary switch on the side of the rear enclosure. The speaker offers a frequency range of 100 Hz to 16 kHz, ensuring high speech intelligibility.
  • Component: high-efficiency 8" dual-cone driver
  • Easy lay-in installation into 2 x 2' US-style suspended grid ceilings. No cutting of ceiling tiles is necessary
  • Perforated metal grille included
  • Combined 70V/100V and low-impedance direct operation
    • 20W at 8 ohms (low-impedance) direct setting
    • 10W multitap at 70V/100V with taps at 10W, 5W, 2.5W (and 1.3W for 70V only)
  • Very-low profile at just 4.1" deep, to fit into ceilings that are shallow or that contain obstructions
  • Easy bare-wire connection in protected compartment. Wire entrance from either top or side via knock-out
  • Very-high 96 dB sensitivity turns power from small amplifiers into maximum sound level for listeners
  • Designed for high speech intelligibility
  • 100° coverage pattern (conical)
  • UL1480A and UL2043 certifications for use in ceiling plenum spaces
Speaker
Active or Passive Passive
Speaker Configuration Full-Range
Power Handling At Low-Z:
40 W RMS
Constant Voltage / Transformer Taps 100 V:
10 / 5 / 2.5 W
70 V:
10 / 5 / 2.5 / 1.3 W
Impedance 8 Ohms (Transformer Bypassed)
Drivers
Full-Range Driver 1 x 8" / 203.2 mm Coaxial Cone
Full-Range Voice Coil 1" / 25.4 mm
Performance
Frequency Range 100 Hz to 16 kHz -10 dB
Sensitivity 96 dB
Coverage Angle 100° H x 100° V
Recommended High-Pass Filter 90 Hz, 24 dB/Octave
