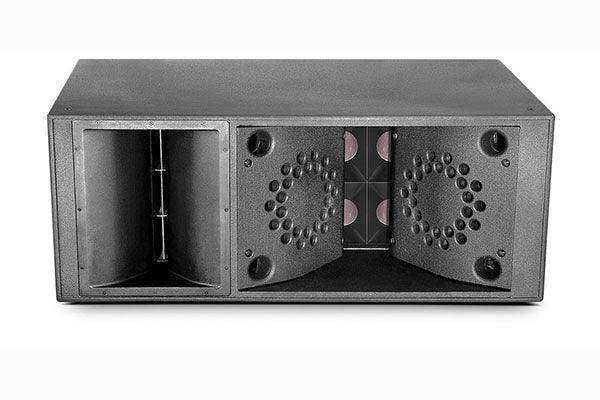

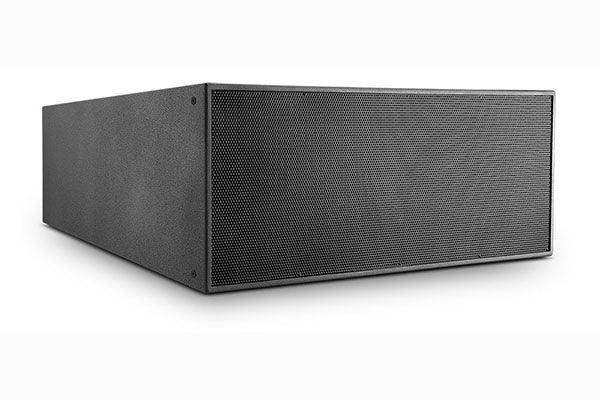

JBL P3266MX – High-Output Three-Way VLA Line Array Module with 90° Horizontal Coverage

Product Overview

The JBL P3266MX is a high-output three-way line array module from the Variable Line Array (VLA) series, engineered for permanent-install sound reinforcement in large commercial venues requiring broad horizontal coverage. Featuring 2 × 15-inch LF drivers, 4 × 8-inch MF drivers, and 6 × 1.5-inch exit HF compression drivers in a 90-degree horizontal dispersion configuration, the P3266MX is designed for installations where wider horizontal coverage per cabinet is required compared to the 60-degree VLA601HI variant. The VLA series delivers high-SPL output at extended throw distances beyond the range of traditional point-source commercial loudspeaker designs. Like all JBL VLA modules, the P3266MX is optimized for permanent-install rigging configurations with JBL's WRC and WRX weatherization options available for outdoor or semi-outdoor venues.

Product Description

The P3266MX uses the same advanced Neodymium Differential Drive transducer technology as the broader VLA series, combining 2 × 15-inch LF, 4 × 8-inch MF, and 6 × 1.5-inch exit compression HF drivers in a three-way configuration — the same high-output driver complement as the VLA601HI, but configured for a 90-degree horizontal pattern. The 90-degree coverage is suited to shorter-throw wide-room applications, balcony fills, and installations where a broader horizontal fan angle reduces the cabinet count needed to cover the full audience width. Rugged DuraFlex-finished exterior-grade Baltic birch plywood enclosure construction provides long-term durability in permanent fixed-install environments. Comprehensive rigging attachment points support scalable multi-cabinet array configurations for systems requiring variable vertical coverage control. The P3266MX integrates into complete JBL VLA system designs alongside matched sub-bass modules, fills, and amplification. Optional WRC and WRX weatherization treatments extend deployment to outdoor amphitheatres, festival stages, and open-air permanent installations.

Key Features

• 90° Horizontal Coverage Pattern — Wider dispersion angle versus the 60-degree VLA601HI variant, suited to broad-room coverage applications, balcony fills, and shorter-throw side-hang configurations.
• Three-Way High-Output Driver Complement — 2 × 15" LF, 4 × 8" MF, and 6 × 1.5" exit compression HF drivers provide full-range commercial-grade reinforcement from a single line array module.
• VLA Series Permanent Install Design — Optimized for rigged permanent installations with comprehensive attachment points supporting scalable multi-cabinet array configurations.
• Neodymium Differential Drive Technology — Advanced transducer design across all driver sections delivers high output with reduced enclosure weight for rigging-sensitive commercial installations.
• DuraFlex Enclosure Finish — Rugged DuraFlex-coated Baltic birch plywood enclosure provides durability and consistent aesthetics in fixed commercial installations.
• Optional WRC/WRX Weatherization — Factory weather-protection options enable outdoor and semi-outdoor permanent fixed-install deployment.
• Scalable Array Configuration — Integrates with JBL VLA sub-bass and fill loudspeakers for complete scalable line array system design across varied commercial venue types.

Typical Applications

• House of worship — large sanctuaries requiring wide 90-degree horizontal line array coverage for broad room fill or balcony reinforcement
• Auditorium — performing arts and multipurpose auditoriums using P3266MX cabinets for wide-coverage main hang or front fill positions
• All-hands room — large corporate assembly spaces requiring high-SPL wide-coverage line array configurations
• Government space — legislative assembly halls and large public meeting facilities requiring permanent-install high-output reinforcement
• Broadcast studio — live recording and broadcast facilities requiring high-SPL full-range monitoring or front-of-house line array systems
• Multi-purpose room — arenas and large multipurpose venues using VLA arrays for scalable coverage across varied event configurations

Technical Specifications

Competitor Comparison

What's in the Box

• JBL P3266MX three-way line array module
• Rigging hardware and suspension attachment components
• Documentation and installation guide

Frequently Asked Questions

What is the difference between the P3266MX (90°) and the VLA601HI (60°)?

Both models use the same driver complement — 2 × 15" LF, 4 × 8" MF, and 6 × 1.5" HF. The key difference is horizontal dispersion angle: the P3266MX covers 90 degrees for wider room coverage applications, while the VLA601HI covers 60 degrees for tighter, longer-throw configurations. System designers select the appropriate cabinet based on venue geometry, throw distance, and required horizontal fill.

Does the P3266MX require external amplification?

Yes. The P3266MX is a passive loudspeaker requiring external amplification and crossover processing. Contact Creation Networks for a complete system amplifier and DSP recommendation for your VLA installation.

Is the P3266MX suitable for outdoor permanent installations?

Yes, with optional JBL WRC or WRX factory weatherization treatment. Confirm the appropriate weather protection option for your outdoor installation environment with Creation Networks or your JBL Professional representative.

How many P3266MX cabinets are typically needed per array?

Array sizing depends on venue geometry, throw distance, required SPL, and coverage angle. JBL provides system design tools and manufacturer support for VLA array configurations. Contact Creation Networks for design consultation on your specific project.

What warranty applies to the P3266MX?

JBL Professional products carry a limited manufacturer warranty. Commercial installation warranty terms should be confirmed with an authorized distributor. Creation Networks supports warranty coordination for commercial AV projects.
