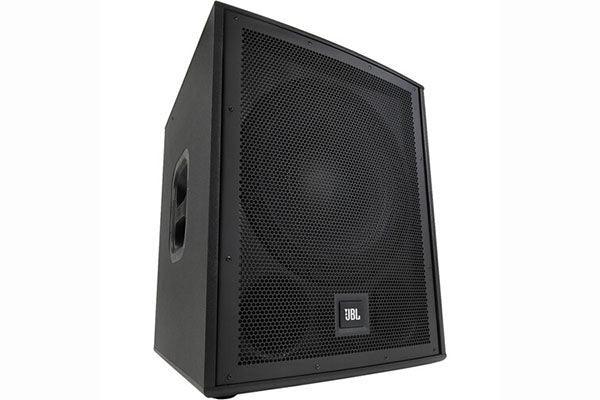

JBL IRX115S-NA Compact Powered 15" Portable Subwoofer

Product Overview

The JBL IRX115S is a powered 15-inch portable subwoofer that extends the low end of a portable PA system down to a room-shaking 35 Hz. Built around a custom 15-inch woofer and a 1,300 W peak Class-D amplifier, this active subwoofer delivers up to 128 dB SPL from a rugged, lightweight ported cabinet. Selectable crossover points and a polarity switch optimize integration with JBL IRX Series loudspeakers, while a built-in pole mount makes it the bass foundation of a portable sub-and-top rig for presentations, events, and live audio.

Product Description

The IRX115S draws on JBL's professional touring technologies to deliver high-output low frequency without guesswork. Its 15-inch woofer with a 3-inch voice coil is driven by a Class-D amplifier rated 400 W continuous (600 W burst, 1,300 W peak), producing a 35 Hz–147 Hz (-10 dB) response and up to 128 dB SPL. As a portable PA subwoofer, it offers selectable 80/100/120 Hz crossover points tuned for the IRX Series, a normal/inverted polarity switch, two XLR/¼-inch combo inputs, and two XLR pass-through outputs for feeding full-range tops. The tuned, ported MDF cabinet (15 mm walls with an 18 mm front plate) reduces port noise and adds output, while a reinforced metal-mesh grille and ergonomic handles support repeated transport. A built-in M20 pole cup lets it mount IRX-series tops such as the JBL IRX108BT powered loudspeaker directly above for a complete portable system. The IRX115S runs on a standard IEC AC cable and weighs 65.3 lb (29.65 kg).

Key Features

• 1,300 W peak Class-D amplifier — 400 W continuous power drives the 15-inch woofer to 128 dB SPL for deep, high-output bass.
• 35 Hz low-frequency extension — A tuned, ported cabinet reaches down to 35 Hz (-10 dB) for full-range portable systems.
• Selectable crossover — 80/100/120 Hz crossover points are optimized for pairing with JBL IRX Series tops.
• Polarity switch — Normal/inverted setting optimizes combined sub-and-top response in any room.

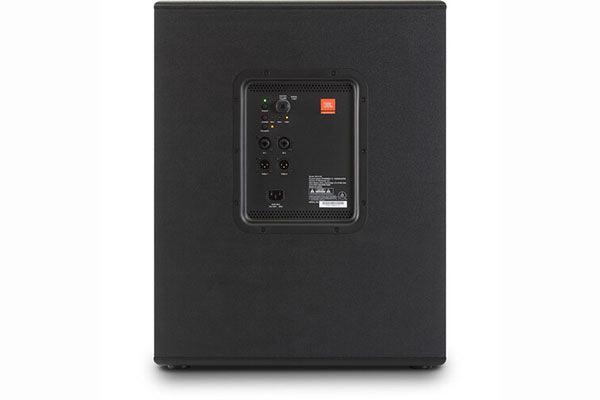

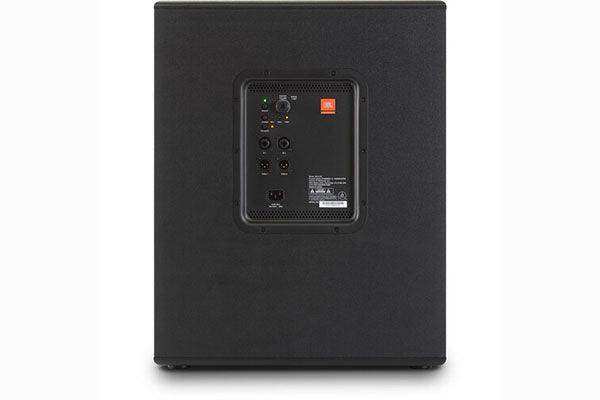

• Combo inputs with pass-through — Two XLR/¼-inch combo inputs and two XLR outputs simplify connecting and chaining full-range loudspeakers.
• Built-in pole mount — An M20 pole cup supports IRX108BT, IRX112BT, and other tops for a complete portable rig.
• Rugged, portable cabinet — A lightweight ported MDF enclosure with reinforced grille and ergonomic handles withstands repeated transport.

Typical Applications

• Multi-purpose room — Portable low-frequency reinforcement for events and presentations.
• Training room — Full-range playback for media and program audio when needed.
• All-hands room — Added bass and output for large-group presentations.
• Auditorium — Portable sub support for speech and music events.
• House of worship — Flexible low-end reinforcement for services and special events.

Technical Specifications

What's in the Box

• JBL IRX115S powered 15" subwoofer
• IEC AC power cable
• Product documentation

Frequently Asked Questions

Is the IRX115S powered or passive?
It is a powered (active) subwoofer with a built-in 1,300 W peak Class-D amplifier — no external amplifier is required.

Which loudspeakers does it pair with?
It is optimized for the JBL IRX Series and includes a built-in M20 pole cup to mount tops such as the IRX108BT and IRX112BT, with selectable 80/100/120 Hz crossover points for clean integration.

How do I connect full-range speakers through it?
Two XLR/¼-inch combo inputs accept your source, and two XLR pass-through outputs feed your full-range tops, so the sub sits inline in the signal path.

Is it easy to transport?
Yes. The ported MDF cabinet weighs 65.3 lb with ergonomic handles and a reinforced grille designed for repeated load-in and load-out.

What warranty and support apply?
The IRX115S carries JBL Professional's manufacturer warranty. For system pairing and configuration help, contact our team at sales@creationnetworks.net or browse the full JBL Professional collection.
