JBL INTONATO24FX Intonato 24 Monitor Management Tuning System

Product Overview

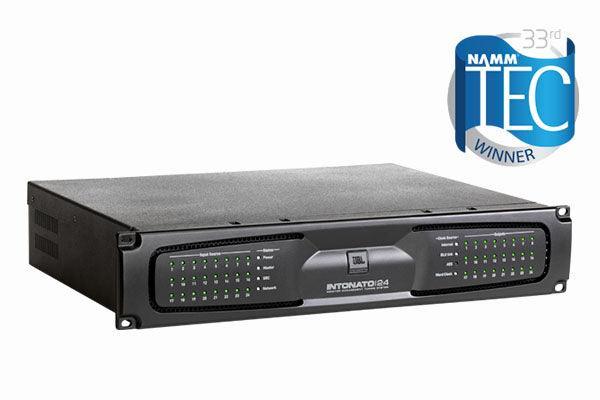

The JBL Intonato 24 (INTONATO24FX) is a monitor management and tuning system that provides automated calibration and comprehensive control of professional monitoring setups. Housed in a 2U rack-mount enclosure, this monitor controller precisely calibrates and controls up to 24 speakers configured as stereo, surround, or immersive audio systems. Engineers can create and instantly recall customized routing of up to 24 analog, digital, and networked sources. Included software and an optional Desktop Controller put the system's monitoring features within easy reach for control rooms and post-production suites.

Product Description

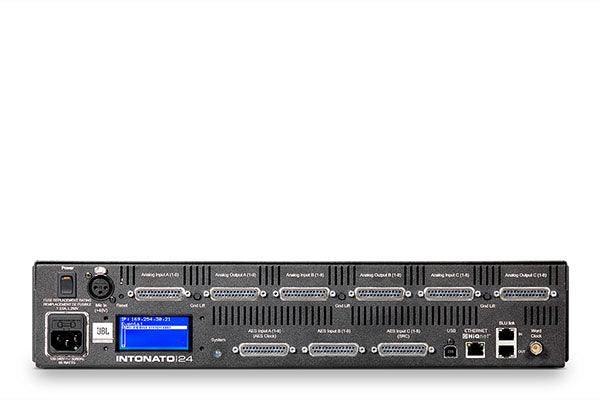

The Intonato 24 accepts 24 analog and AES/EBU inputs, with up to 256 channels of networked audio in HARMAN BLU link or Dante format via the optional BLUDAN interface, and software-controlled input sensitivity, level indicators, and gain trims. It provides 24 analog outputs to powered speakers and amplifiers plus a BLU link output for networked connection to HARMAN Crown power amplifiers. Automated speaker calibration with the included microphone balances, tunes, and time-aligns every speaker to the mix position, with 12 bands of room EQ, delay, and level per speaker, plus an 8-band user EQ for standard and custom curves such as X-Curve and perforated-screen compensation. Sophisticated subwoofer integration handles LFE and bass management, variable A/V sync delay compensates for video latency, and a stereo Aux Out with dedicated level, EQ, and talkback feeds a remote room. Configurations and tunings store for instant recall, and control is handled through included Mac, Windows, and iOS/Android software or the optional Intonato Desktop Controller. Explore related models in the JBL Professional studio monitors collection.

Key Features

• Controls up to 24 speakers — Manages stereo, surround, and immersive monitoring systems from one 2U unit.
• Automated calibration — The included microphone balances, tunes, and aligns all speakers to the mix position.
• Comprehensive per-speaker tuning — 12-band room EQ, delay, and level per speaker, plus 8-band user EQ for custom curves.
• Extensive I/O — 24 analog and AES/EBU inputs; up to 256 networked channels via optional BLUDAN (BLU link/Dante); 24 analog outputs.
• Crown amplifier integration — A BLU link output connects to HARMAN Crown power amplifiers over the network.
• Subwoofer and bass management — Sophisticated LFE integration for surround and immersive formats.
• A/V sync and talkback — Variable video-latency delay and a stereo Aux Out with talkback for remote rooms.
• Instant recall — Store and recall project-specific configurations and speaker tunings; controlled by software or the optional Desktop Controller.

Typical Applications

• Broadcast studio — Calibrated, recallable monitoring for control rooms, post-production suites, and mobile trucks.

Technical Specifications

Frequently Asked Questions

Which speakers is the Intonato 24 compatible with?
It works with all professional studio monitors — both powered speakers (via its 24 analog outputs) and power amplifiers, including networked HARMAN Crown amplifiers over BLU link.

How does calibration work?
An included measurement microphone drives automated calibration that balances, tunes, and time-aligns every speaker to the mix position, applying room EQ, delay, and level per speaker.

Can it handle immersive formats?
Yes. It controls up to 24 speakers in stereo, surround, or immersive configurations, with subwoofer integration and bass management for LFE channels.

Is the software compatible with my operating system?
Intonato control software runs on Mac, Windows, and iOS/Android; note that the software is not compatible with macOS Monterey, Big Sur, or Catalina, so confirm your OS version before deployment.

What warranty and support apply?
The Intonato 24 carries JBL Professional's manufacturer warranty. For configuration and integration support, contact our team or browse the JBL Professional studio monitors collection.
