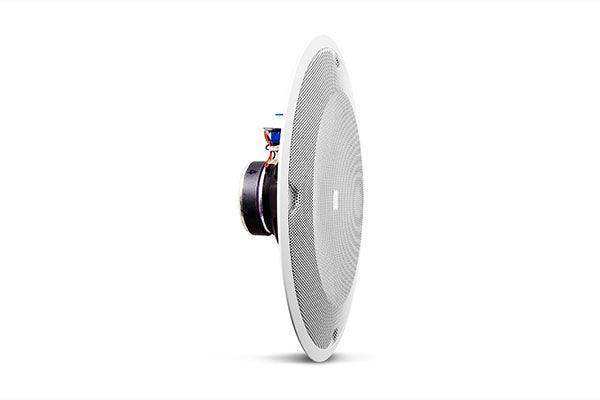

JBL HPD8138 8" In-Ceiling Loudspeaker Set of 4, Sold Individually
Product Overview
The JBL HPD8138 is an 8-inch (200 mm) full-range in-ceiling loudspeaker designed for use with a pre-install backcan, delivering high-fidelity commercial sound at a cost-effective price point. A dual-cone driver and very high 97 dB sensitivity make this distributed-audio ceiling speaker efficient on 70V/100V lines, ideal for restaurants, retail, professional offices, and reception areas. A 6W multi-tap transformer connects it to 70V or 100V distributed systems. This listing is for the HPD8138 sold individually within a 4-unit pack.
Product Description
The HPD8138 uses a 200 mm (8 in) full-range dual-cone driver with a very high 97 dB sensitivity to produce clear, efficient output across a 95 Hz to 18 kHz range (-10 dB) and a 90-degree conical coverage pattern. Its 6W multi-tap transformer offers selectable taps of 6W, 3W, and 1.5W (plus 0.75W at 70V only) for 70V/100V distributed lines, reaching a maximum SPL of 105 dB on the top tap. The speaker mounts to in-ceiling backboxes with four points on an industry-standard 286 mm (11.25 in) mounting circle and is intended for use with the MTC-81BB8 backcan and MTC-81TB8 tile bridge, which also enable plenum-rated installation. An integral grille and four M4 mounting screws are included. Explore matching components in the JBL Professional installed audio collection. White finish.
Key Features
- 8-inch dual-cone driver — Delivers clear full-range sound for commercial background and foreground audio.
- Very high 97 dB sensitivity — Achieves high sound levels using minimal amplifier power.
- 6W multi-tap transformer — Selectable taps (6/3/1.5 W, plus 0.75 W at 70V) for 70V/100V distributed lines.
- 90-degree conical coverage — Provides even fill across the listening area.
- Backcan-ready installation — Mounts to standard backboxes on an 11.25-inch mounting circle; works with MTC-81BB8 backcan and MTC-81TB8 tile bridge.
- Plenum-rated option — Suitable for plenum spaces when used with the accessory backcan.
- Integral grille included — Ships with grille and four M4 mounting screws.
Technical Specifications
| Driver | 200 mm (8 in) full-range, dual-cone |
| Frequency Range (-10 dB) | 95 Hz – 18 kHz |
| Coverage Angle | 90° conical |
| Sensitivity | 97 dB (2k–8k Hz) |
| Driver Power Capacity | 40 W (160 W peak), 2 hr; 25 W (100 W peak), 100 hr |
| Transformer Taps | 6 W, 3 W, 1.5 W (0.75 W at 70V only) |
| Maximum SPL (1m) | 105 dB (top 70V/100V tap) |
| Mounting | 4 points on 286 mm (11.25 in) circle; MTC-81BB8 backcan / MTC-81TB8 tile bridge |
| Dimensions | 327 mm (12.9 in) baffle diameter x 99 mm (3.9 in) overall depth |
| Net Weight | 1.4 kg (3.0 lb) |
| Color | White |
