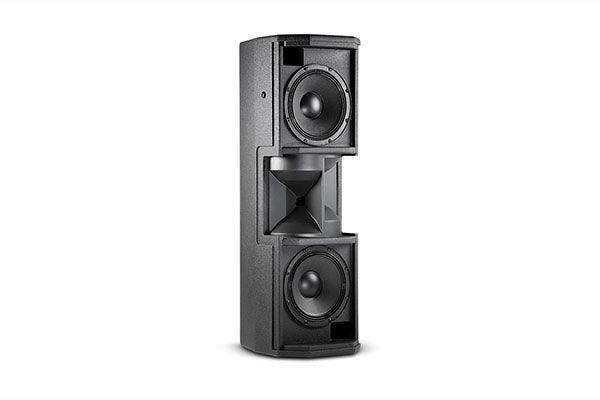

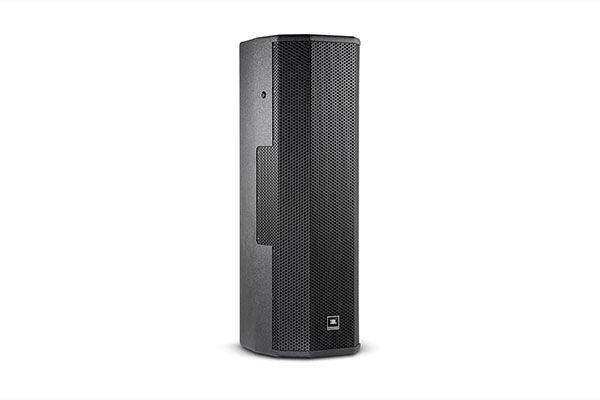

JBL CWT128 2x8" 2-Way Full-Range Speaker, Crossfire Waveguide (Black)

Product Overview

The JBL CWT128 is a compact dual 8-inch, 2-way full-range loudspeaker built around JBL's Crossfired Waveguide Technology to deliver extremely wide-angle coverage from a single enclosure. The waveguide provides seamless horizontal coverage across a full 160 degrees, letting one CWT128 do the work of two side-by-side speakers in roughly a third of the footprint. This wide-coverage install loudspeaker suits architecturally sensitive environments where a small visual profile and even fill are both required. Built-in M10 and M8 attachment points support flexible rigging and wall mounting.

Product Description

The CWT128 combines maximum bandwidth and SPL with an unusually wide dispersion pattern in a single system package. Its Crossfired Waveguide produces a 160-degree by 60-degree pattern, driven by dual 205 mm (8 in) low-frequency transducers and a dual 25 mm (1 in) exit, 38 mm (1.5 in) diaphragm compression driver. The compact cabinet occupies about a third of the footprint of two splayed speakers, making it well suited to lobbies, concourses, and other design-sensitive spaces. Installation is straightforward with four built-in M10 attachment points across the top and sides, plus four M8 points on the back panel that accept OmniMount wall-mounting brackets. WRC and WRX weather-resistant versions are available on request for exposed locations. Explore matching components in the JBL Professional installed audio collection. Finished in black; also available in white.

Key Features

• Seamless 160° horizontal coverage — Crossfired Waveguide Technology covers a full 160 degrees from one enclosure.
• Compact footprint — Occupies about a third of the space of two splayed speakers, ideal for design-sensitive rooms.
• Dual 8-inch LF transducers — Two 205 mm low-frequency drivers provide full-range output and SPL.
• 160° x 60° waveguide — An extremely wide-coverage horn delivers even fill across the listening area.
• High-output compression driver — A dual 25 mm exit, 38 mm diaphragm compression driver supplies clear high frequencies.
• Flexible rigging — Four M10 points across the top and sides plus four M8 points for OmniMount brackets ease installation.
• Weather-resistant options — WRC and WRX versions are available on request for exposed environments.

Typical Applications

• Auditorium — Wide, even coverage of seating from a single compact enclosure.
• House of worship — Seamless 160-degree fill for sanctuaries and assembly halls.
• Multi-purpose room — Broad coverage where a small visual footprint matters.
• All-hands room — Full-range audio across large open spaces.
• Commercial meeting space — Architecturally discreet coverage for lobbies and concourses.

Technical Specifications

Full electrical specifications should be confirmed against the JBL CWT128 specification sheet.

Frequently Asked Questions

How wide is the CWT128's coverage?
Its Crossfired Waveguide provides a seamless 160-degree horizontal by 60-degree vertical pattern, so a single unit can cover an area that would otherwise require two splayed speakers.

How is it rigged or mounted?
Four M10 attachment points across the top and sides support rigging, and four M8 points on the back panel accept OmniMount wall-mounting brackets.

Can it be used outdoors?
The standard CWT128 is for interior use; WRC and WRX weather-resistant versions are available on request for exposed or wash-down environments.

How is it powered?
It is a passive full-range loudspeaker driven from a power amplifier; confirm impedance, power handling, and amplifier matching against the JBL CWT128 specification sheet for your design.

What warranty and support apply?
The CWT128 carries JBL Professional's manufacturer warranty. For coverage planning and integration support, contact our team or browse the JBL Professional installed audio collection.
