JBL CSS-H30 Commercial Solutions Series 30W Paging Horn (Traffic White)
JBL CSS-H30 Commercial Solutions Series 30W Paging Horn (Traffic White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
JBL CSS-H30 Commercial Solutions Series 30W Paging Horn (Traffic Wh...
Product Overview

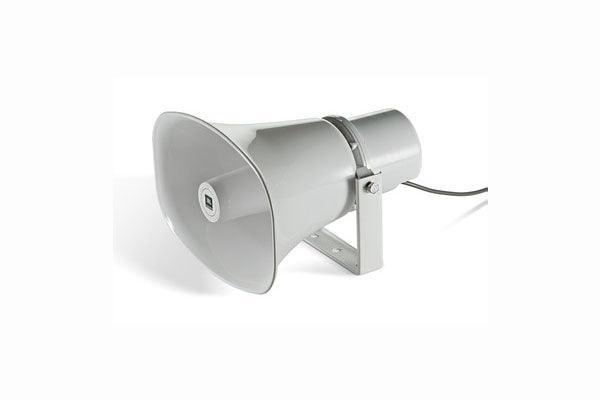

The JBL CSS-H30 is a 30-watt commercial paging horn that delivers excellent voice-range clarity for public address, paging, intercom, security, alarm, and industrial systems. Its IP65-rated, highly weather-resistant build allows indoor or outdoor installation, and a focused coverage pattern projects sound farther than wider-dispersion horns. A UL-registered 30W multi-tap transformer makes this 70V/100V paging horn ready for distributed speaker lines, with an 8-ohm bypass for non-distributed systems. The traffic-white finish and stainless-steel bracket suit demanding commercial environments.
Product Description
The CSS-H30 provides intelligible long-throw announcements across public access areas, warehouses, factories, schools, recreational facilities, and other commercial sound and protective-signaling systems. A phenolic-diaphragm driver gives outdoor durability and high reliability, while a built-in high-pass filter protects the driver against low-frequency damage. Its focused 50-degree horizontal by 70-degree vertical pattern concentrates output for long-throw applications where the higher power and tighter dispersion reach farther than the wider CSS-H15. The UL-registered 30W multi-tap transformer is screwdriver-adjustable with an 8-ohm bypass position for non-distributed systems. The IP65 enclosure ships with a stainless-steel bracket and hardware. Explore matching components in the JBL Professional installed audio collection. Traffic-white finish.
Key Features

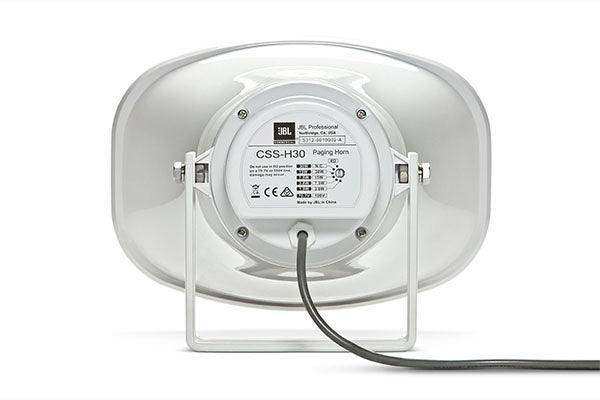

- UL-registered 30W multi-tap transformer — Screwdriver-adjustable taps with an 8-ohm direct bypass.
- IP65 weather resistance — Highly weather-resistant for indoor or outdoor installation, with stainless-steel bracket and hardware.
- Focused 50° x 70° coverage — Long-throw dispersion projects sound farther than wider-coverage horns.
- Phenolic-diaphragm driver — Provides outdoor durability and high reliability.
- Built-in high-pass filter — Protects the driver against low-frequency damage.
- High sensitivity — Delivers high sound levels with minimal amplifier power.
Technical Specifications
| Type | 30 W commercial paging horn |
| Coverage Pattern | 50° H x 70° V (long throw) |
| Driver | Phenolic-diaphragm compression driver |
| Transformer | UL-registered 30 W multi-tap; 8-ohm bypass |
| Operation | 70V / 100V distributed or 8-ohm direct |
| Filter | Built-in high-pass filter |
| Weather Rating | IP65 |
| Mounting | Stainless-steel bracket and hardware |
| Finish | Traffic White |
