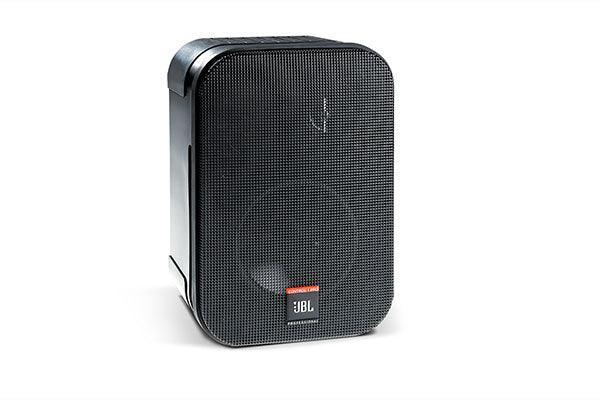

JBL CSS-1S/T 5.25" 2-Way 10W Passive Loudspeaker (Pair/Black)

Product Overview

The JBL CSS-1S/T is a pair of compact 2-way passive loudspeakers voiced for enhanced speech intelligibility and foreground or background music in indoor commercial spaces such as retail shops, cafes, and classrooms. A 5.25-inch woofer and 0.75-inch dome tweeter deliver clear, full-range sound from a lightweight enclosure. An integrated 10W multi-tap transformer lets this surface-mount loudspeaker run on 70V/100V distributed lines or in 8-ohm low-impedance systems. The supplied ball-type bracket allows shelf placement or angled wall mounting.

Product Description

The CSS-1S/T pairs a 5.25-inch woofer with a 0.75-inch dome tweeter for up to 60W long-term power handling, a maximum SPL of 106 dB, and a frequency range of 85 Hz to 18 kHz (-10 dB). Its driver configuration produces a 120 by 120-degree dispersion pattern for consistent coverage across a room. The lightweight, sturdy polypropylene enclosure can sit on a shelf or mount to a wall with the included ball-type bracket, and a rear-panel tap selector configures the integrated 10W multi-tap transformer for 70V/100V distributed systems or 8-ohm low-impedance operation. Explore matching components in the JBL Professional installed audio collection. Sold as a pair in black.

Key Features

• 10W multi-tap transformer — Configurable rear-panel taps support 70V and 100V distributed speaker lines.
• 8-ohm direct setting — A low-impedance bypass allows use in standard 8-ohm systems.
• Coaxial 2-way drivers — A 5.25-inch woofer and 0.75-inch dome tweeter deliver clear speech and music.
• 106 dB maximum SPL — Provides ample output for foreground and background reinforcement.
• 120 x 120-degree coverage — A consistent dispersion pattern covers the listening area evenly.
• Ball-type wall bracket — The included bracket supports shelf placement or angled wall mounting.
• Polypropylene enclosure — A lightweight, sturdy cabinet suits a range of indoor installations.
