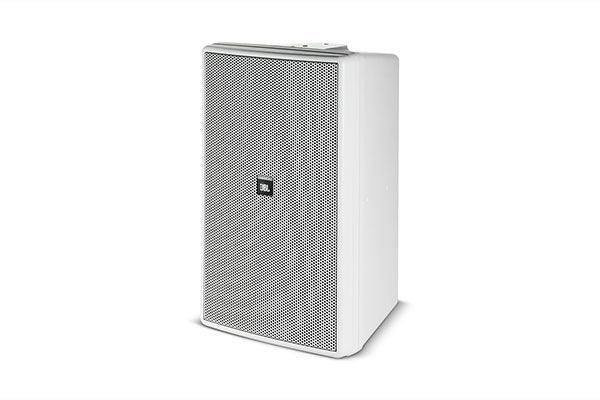

JBL CONTROL 30-WH Three-Way Passive Indoor/Outdoor Monitor Speaker for use with 70/100V Audio Distribution in White Enclosure - (Single)

Product Overview

The JBL Control 30 is a three-way high-output indoor/outdoor monitor loudspeaker built for full-range foreground music and speech reinforcement in demanding commercial AV installations. This surface-mount installation speaker pairs extended low-frequency output with wide, controlled high-frequency coverage, making it well suited to atriums, covered exteriors, themed retail, and large multi-purpose spaces. An integrated 70V/100V transformer with an 8-ohm bypass lets it serve either distributed audio systems or discrete low-impedance zones. The weather-resistant enclosure and JBL InvisiBall mounting system support reliable, aimable placement in horizontal or vertical orientation.

Product Description

The Control 30 is a three-way surface-mount loudspeaker engineered for venues that need higher fidelity and output than a typical two-way installation speaker provides. It uses a 250 mm (10 in) fiberglass/Kevlar cone low-frequency woofer, a coaxial 125 mm (5 in) anodized-aluminum-cone midrange with a neodymium magnet, and a 25 mm (1 in) titanium-diaphragm compression driver, delivering extended bandwidth with smooth, even response. The fully outdoor-capable design features a WeatherMax grille and weather-resistant enclosure for semi-exposed installation, and SonicGuard overload protection guards the high-frequency section during sustained high-output use. A 150 W transformer supports 70V or 100V distributed lines with an 8-ohm thru bypass for low-impedance operation, and the speaker can be mounted horizontally or vertically to suit the room. The included InvisiBall mounting hardware plus ten 6 mm suspension attachment points and an optional U-bracket allow precise aiming. Explore related models in the JBL Professional installed audio collection.

Key Features

• Three-way driver array — A 10 in fiberglass/Kevlar LF woofer, 5 in aluminum-cone midrange, and 1 in titanium compression driver deliver extended, high-fidelity full-range output.
• 500 W continuous program power — High power handling provides the headroom needed for foreground music and speech in large spaces.
• 120 x 110 degree HF coverage — Wide, controlled high-frequency dispersion maintains intelligibility across broad listening areas.
• Integrated 70V/100V transformer — A 150 W transformer supports distributed lines with an 8-ohm thru bypass for low-impedance use.
• Fully outdoor-capable design — A WeatherMax grille and weather-resistant enclosure suit covered exterior and semi-exposed installation.
• SonicGuard overload protection — Protects the high-frequency driver during sustained high-output operation.
• InvisiBall mounting system — Included aimable hardware with ten 6 mm attachment points and an optional U-bracket for secure horizontal or vertical placement.

Typical Applications

• House of worship — Full-range music and speech reinforcement in sanctuaries, courtyards, and covered exterior areas.
• Multi-purpose room — High-output foreground audio with flexible horizontal or vertical mounting.
• Commercial meeting space — Wide-coverage reinforcement for atriums, lobbies, and gathering areas.
• Auditorium — Surface-mount fill where higher fidelity and output are required.
• Government space — Durable announcement and program audio for civic interiors and exteriors.

Technical Specifications

Full electrical specifications should be confirmed against the JBL Control 30 specification sheet.

Frequently Asked Questions

Can the Control 30 be used outdoors?
Yes. It is a fully outdoor-capable design with a WeatherMax grille and weather-resistant enclosure, suitable for covered and semi-exposed exterior installation.

Does it work on 70V/100V distributed systems?
Yes. It includes a 150 W transformer for 70V or 100V lines, plus an 8-ohm thru bypass for low-impedance operation.

Can it be mounted vertically and horizontally?
Yes. The three-way design provides extended midrange and high-frequency coverage for either orientation, and the InvisiBall system allows precise aiming.

What warranty and support apply?
The Control 30 carries JBL Professional's manufacturer warranty. For transformer-tap planning and integration support, contact our team or browse the full JBL Professional collection.
