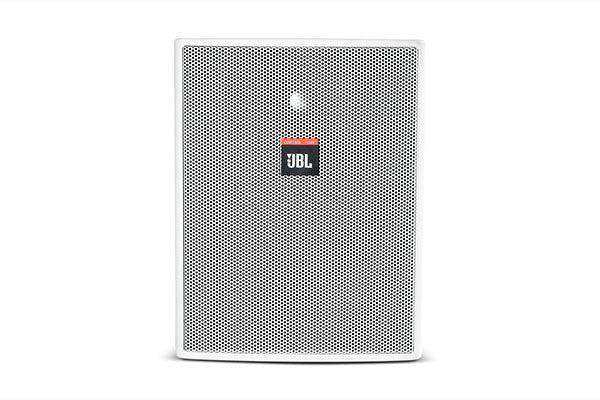

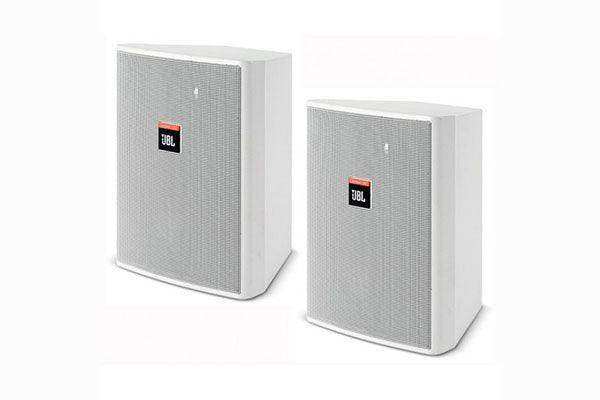

JBL CONTROL 25AV-WH 5.25 inch 2 Way Shielded Indoor/Outdoor Speaker (Pair,White)

Availability: Call for Availability
Availability: Direct Ship
JBL SKU: CONTROL 25AV-WH
No reviews
Price:
$456.00 $560.64

Description

Sold as a pair, the white JBL Control 25AV-WH is a passive 5.25" shielded loudspeaker with a low-saturation transformer designed for voice amplification and foreground music reproduction in a variety of indoor and outdoor venues. The 60W transformer allows the Control 25AV-WH to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 25AV-WH is equipped with a durable 5.25" woofer and a 0.75" titanium-coated tweeter, yielding a frequency range of 70 Hz to 23 kHz, and a continuous program power capacity of 200W.

The 12 dB/octave crossover network ensures proper frequency distribution to the speaker components as well as smooth tone. SonicGuard circuitry protects against damage incurred through overloading without compromising sound quality. The screw-down terminal strip enables simple wiring, and utilizes nickel/zinc terminals for enhanced resistance to rust. The supplied InvisiBall mounting systems and input panel covers contribute to ease of installation.
  • High-impact polystyrene enclosures with magnetic shielding for use near video monitors
  • Included InvisiBall mounting systems are simple to install, aim easily, and provide a high degree of theft deterrence
  • 100° x 100° high-frequency horn
  • Low-saturation 60W transformer enables use with 70V/100V constant-voltage systems, and offers a bypass position for use in an 8-Ohm setup
  • 200W continuous program power handling
  • Durable 5.25" polypropylene-coated woofer with WeatherEdge surround
  • 0.75" titanium-coated, horn-loaded tweeter
  • 70 Hz to 23 kHz frequency range (-10 dB)
  • 12 dB/octave crossover network with high- and low-pass filtering
  • Screw-down terminal strip—with zinc-plated copper base and nickel-plated metal screws/washers—accepts up to 9mm outside and 4mm inside open lug (#6, #8 or #10), plus bare wire (up to 12 AWG)
  • Aurally transparent SonicGuard circuitry features full-range power limiting to protect network and transducers, plus an internal fuse to protect during exceptional overload conditions
  • Passive Design, Magnetic Shielding
  • 5.25" Woofer, 0.75" Tweeter
  • 200W Long-Term Power Capacity
  • For 70V/100V or 8-Ohm Power Amplifiers
  • Low-Saturation Transformer
  • 70 Hz to 23 kHz Frequency Range
  • SonicGuard Overload Protection
  • Screw-Down Terminal Strip
  • Includes InvisiBall Mounting Systems
  • Includes Input Panel Covers

JBL Control 25AV Specs
Active or Passive Passive
Number of Included Speakers 2
Speaker Configuration 2-Way
Power Handling For 100 Hours:
200 W Program
100 W RMS
Constant Voltage / Transformer Taps 100 V:
15 / 30 / 60 W or 8 Ohms Bypass
70 V:
7.5 / 15 / 30 / 60 W or 8 Ohms Bypass
Impedance 6.7 Ohms (Minimum)
8 Ohms (Thru Setting)
Shielded Yes
Drivers
HF Driver 0.75" / 2 cm Titanium-Coated PEI Tweeter
LF Driver 5.25" / 13.5 cm Polypropylene-Coated Paper Woofer
LF Voice Coil 1" / 2.5 cm
Performance
Frequency Range 70 Hz to 23 kHz -10 dB
Maximum SPL 113 dB (Peak)
107 dB (Continuous)
Sensitivity 87 dB SPL
Coverage Angle 100° H x 100° V
Directivity 4.9 (Directivity/Q Factor)
6.9 dB (Directivity Index)
Crossover Low-Pass:
12 dB/Octave
High-Pass:
12 dB/Octave
Protections AC Fuse, Overvoltage
Connectivity
I/O Screw Terminal
Maximum Wire Gauge 12 AWG
Environmental
Certifications UL
*as per Manufacturer
Environmental Protection Advertised as Water Resistant
*Manufacturer Testing: IPX4
IP Rating IPX4
Physical
Color White
Rotation Range 44° H x 37° V (Ball Mount)
44° H x 44° V (Bracket Mount)
Construction Material High-Impact Polystyrene, Stainless Steel Grille
Dimensions 9.3 x 7.4 x 6.3" / 23.6 x 18.6 x 15.9 cm
Weight 9 lb / 4 kg
Packaging Info
Package Weight 20.75 lb
Box Dimensions (LxWxH) 15.4 x 10.5 x 9.6"
