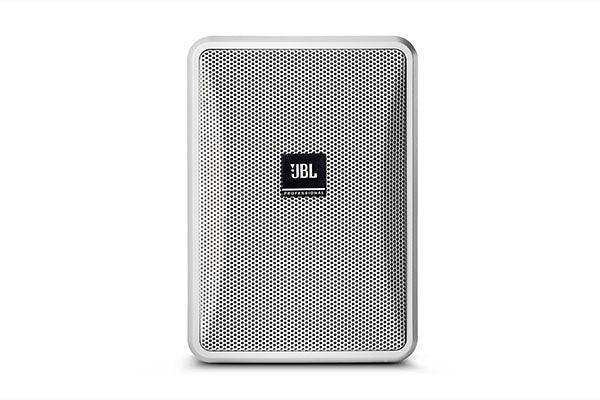

JBL Ultra-Compact Indoor/Outdoor Background/Foreground Speaker (Pair, White) - CONTROL 23-1-WH

Name: JBL Ultra-Compact Indoor/Outdoor Background/Foreground Speaker (Pair, White) - CONTROL 23-1-WH
Brand: JBL Professional
SKU: CONTROL 23-1-WH
Price: 300.00 USD
Availability: InStock

Authorized Dealer

$300.00 $370.68

Shipping calculated at checkout.

JBL Professional | SKU: CONTROL 23-1-WH

Shipping Now*

Free Ground Shipping over $250.00

Ultra-Compact Indoor/Outdoor Background/Foreground Speaker

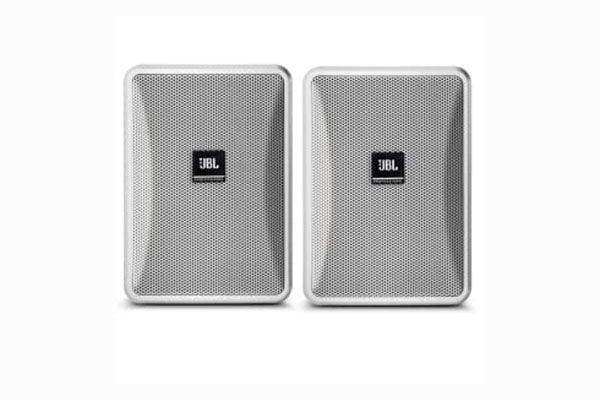

Sold as a pair, these Control 23-1-WH loudspeakers are a white two-way 3" indoor/outdoor monitors featuring weather-protected circuitry, natural and powerful representations of the frequency spectrum, white enclosures, and JBL's proprietary InvisiBall mounting hardware. This hardware allows you to install the speakers through a hidden access point behind its logo badge. As such, the Control 23-1 suitable for venues, health clubs, theme parks, cafes, or anywhere where foreground/background music—and paging—is a necessity.

Features

Components:
• 3” woofer with woven fiberglass cone
• 1/2” PEI diaphragm tweeter with fluid cooling
Contemporary, high-design appearance
Built-in InvisiBall® mounting hardware*, plus available U-bracket
Weather resistant enclosure and transducers
Wide 100° x 100° coverage
50 Watt power handling (100 Watt program) in direct 8Ω setting, plus built-in 15 Watt 70V/100V multi-tap transformer.
High fidelity sound character with broad frequency response of 70 Hz – 20 kHz.

Specification

Active or Passive	Passive
Speaker Configuration	2-Way
Power Handling	For 100 Hours: 40 W RMS 160 W Peak For 2 Hours: 100 W Program 50 W RMS 200 W Peak
Constant Voltage / Transformer Taps	100 V: 15 / 7.5 / 3.7 W or 8 Ohms Bypass 70 V: 15 / 7.5 / 3.7 / 1.8 W or 8 Ohms Bypass
Impedance	8 Ohms (Thru Setting)

Drivers

HF Driver	0.5" / 13 mm PEI Tweeter
LF Driver	3" / 76 mm Fiberglass Woofer

Performance

Frequency Response	70 Hz to 20 kHz ±10 dB 95 Hz to 19 kHz ±3 dB
Sensitivity	86 dB
Coverage Angle	100° H x 100° V
Directivity	5.8 (Directivity/Q Factor) 7.2 dB (Directivity Index)
Crossover	Low-Pass: 12 dB/Octave High-Pass: 12 dB/Octave
Recommended High-Pass Filter	70 Hz, 24 dB/Octave
Maximum Input Voltage	17.2 V RMS 34.4 V Peak
Transformer Insertion Loss	<0.43 dB

Connectivity

I/O	Screw Terminal
Maximum Wire Gauge	12 AWG / 2.5 mm

Environmental

Certifications	RoHS, UL *as per Manufacturer
IP Rating	IP44

Physical

Color	White
Construction Material	High-Impact Polystyrene, Metal Grille
Dimensions	7.9 x 5.6 x 4.4" / 200 x 141 x 111 mm
Weight	4 lb / 1.8 kg

Packaging Info

Package Weight	9.135 lb
Box Dimensions (LxWxH)	12.4 x 9.65 x 7.15"
