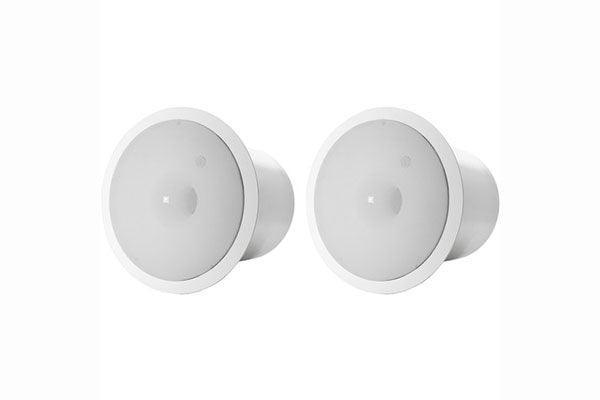

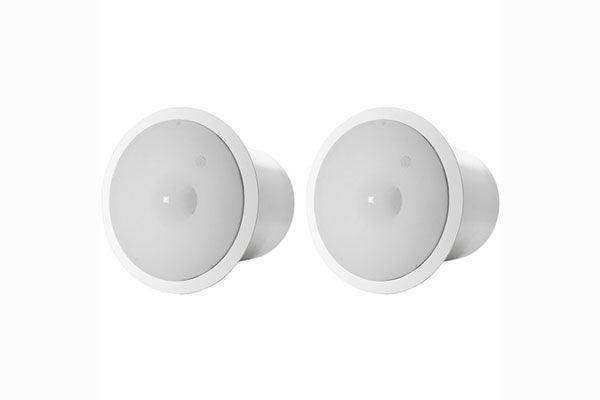

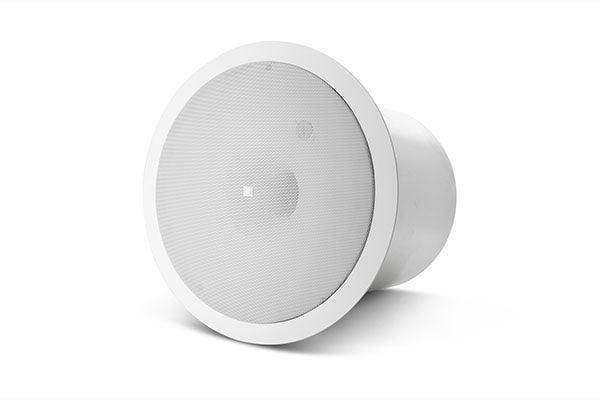

JBL Control 19CS 8" 200W In-Ceiling 8-Ohm Installation Subwoofers (Pair, White)

Availability: Call for Availability
Availability: Direct Ship
JBL SKU: CONTROL 19CS
No reviews
Price:
$532.00 $674.08

Description

Sold as a pair, the white JBL Control 19CS is a passive 8" in-ceiling installation subwoofer with SonicGuard overload protection circuitry designed to deliver reliable low-frequency reinforcement for foreground music systems in a variety of venues ranging from boardrooms to bistros. When driven by 8-Ohm power amplifiers (available separately), these subwoofers provide a program power capacity of 200W. Each Control 19CS is equipped with a durable 8" polypropylene woofer capable of covering the low-frequency range from 42 to 200 Hz.

The Nested Chamber design and Linear Dynamics port yield extended bass response, high output, and sonically transparent acoustic low-pass properties. The removable locking connector, C-shaped support backing plate, tile support rails, cutout template, and paint shield contribute to easy installation.

  • Low-profile, in-ceiling installation subwoofers with paintable baffles and grilles
  • Includes cutout templates and paint shields for ease of installation
  • For use with 8-Ohm power amplifiers
  • Ideal for reinforcing full-range speakers for foreground music systems
  • Discreet, minimized visual impact for boardroom, reception areas, restaurants, airports, and retail applications
  • 200W continuous program power handling performance
  • Durable 8" polypropylene woofer with vented pole piece for low distortion
  • 42 to 200 Hz frequency range
  • Nested Chamber design delivers high output from a compact enclosure, while its acoustic low-pass character enables it to augment a full-range sound system without an external crossover or separate amp channel
  • Linear Dynamics port design, originally developed for JBL's concert speaker systems, produces extended and deep bass output
  • SonicGuard circuitry protects against overload damage while remaining transparent to the listener
  • Removable locking connector with screw-down terminals for input and loop-through output connections
  • Enclosed terminal box provides strain relief for use with plenum-rated wire, 1/2" conduit, or flexible conduit up to 7/8" outside diameter
  • Back-panel attachment loop acts as a secondary support point

JBL Control 19CS Specs
Active or Passive Passive
Number of Included Speakers 2
Speaker Configuration Subwoofer
Power Handling 100 W RMS
200 W Program
Impedance 8 Ohms
Enclosure Type Bass-Reflex
Shielded No
Drivers
LF Driver 1 x 8" / 20 cm Polypropylene-Coated Woofer
LF Voice Coil 1.5" / 3.8 cm
Performance
Frequency Range 42 Hz to 200 Hz -10 dB
Maximum SPL 115 dB (Corner Mount)
Sensitivity 95 dB SPL (Corner Mount)
89 dB SPL (Ceiling-Center Mount)
Coverage Angle 180° (Conical)
Protections Overvoltage
Connectivity
I/O 1 x Screw Terminal 4-Pole Input/Thru (Locking, Removable)
Maximum Wire Gauge 12 AWG
Environmental
Certifications UL
*as per Manufacturer
Environmental Protection None
Physical
Color White
Cutout Depth 12.5" / 31.8 cm
Cutout Size 12" / 30.5 cm
Construction Material Medium-Impact Polystyrene, Steel
Dimensions 13.6 x 13.6" / 34.5 x 34.5 cm
Weight 12 lb / 5.5 kg (Each Speaker)
Packaging Info
Package Weight 48.8 lb
Box Dimensions (LxWxH) 32 x 15 x 15"
