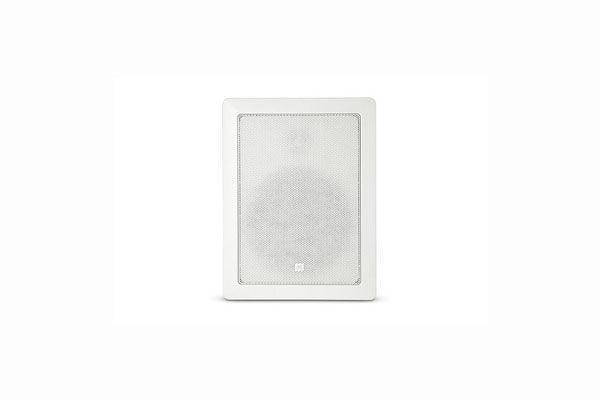

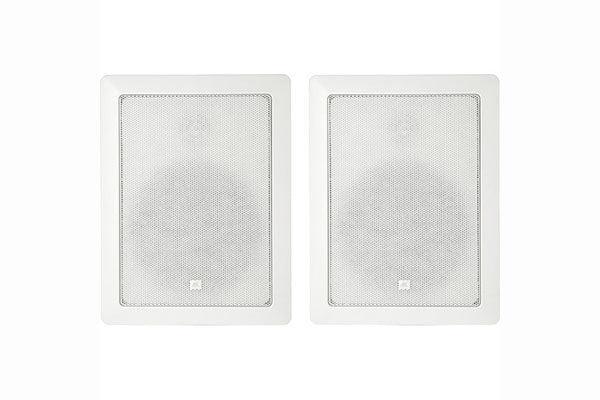

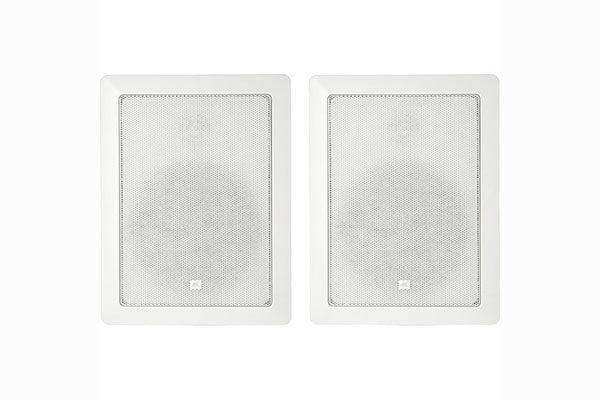

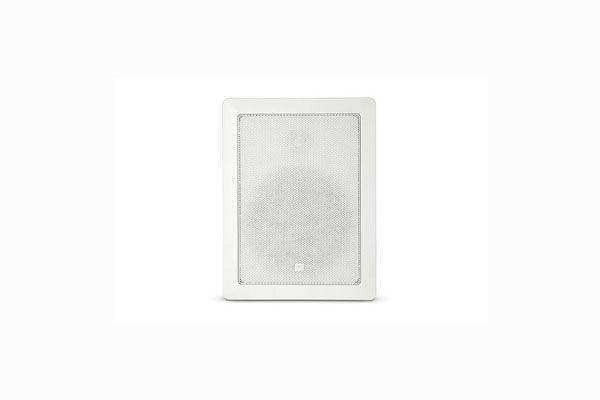

JBL Control 126WT 6.5" 2-Way 100W In-Wall 70V/100V Installation Speakers (Pair, White)

Save 18%
No reviews

Sale price$448.00 Regular price$547.62


(Sold as pair)

Premium In-Wall Loudspeaker

The Control 126WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

  • Passive Design
  • 6.5" Woofer, 1" Titanium-Dome Tweeter
  • Aimable Tweeter with EOS Waveguide
  • 100W Program (200W Peak) Power Capacity
  • For 70V/100V Power Amplifiers
  • Multi-Tap Transformer
  • 38 Hz to 20 kHz Frequency Range
  • High-Slope Crossover Network
  • Screw-Down Euroblock Input
  • Includes Cutout Template & Paint Shield

JBL Control 126W Specs

Active or Passive Passive
LF Driver 6.5" / 16.5 cm Polymer-Coated Aluminum Cone with Pure Butyl Rubber Surround
HF Driver 1" / 2.5 cm Pure Titanium Dome with Cloth Suspension on Low-Diffraction Swivel Mount with -10° Aimability
Frequency Range 38 Hz to 20 kHz (-10 dB)
Power Capacity Peak: 200 W
Continuous Program: 100 W
Continuous Pink Noise: 50 W
Sensitivity 88 dB SPL (1 W, 1 m)
Impedance Not applicable
Transformer Taps Watts at 70 V: 3.7, 7.5, 15, 30
Watts at 100 V: 7.5, 15, 30
Crossover Low-Pass Filter to Woofer: 3rd Order (18 dB/Octave)
High-Pass Filter to Tweeter: 3rd Order (18 dB/Octave)
Input Screw-Down Euroblock Connector (14 AWG Maximum Wire Size)
Shielded No
Air Gap Optimum Air Cavity Behind Speaker: 0.7 to 1.4 ft³ / 20 to 40 L
Cutout Dimensions (H x W) 9.7 x 7.1" / 24.6 x 18.1 cm
Maximum Wall Thickness 1.3" / 3.2 cm
Dimensions 11.0 x 8.5 x 4.1" / 28.0 x 21.5 x 10.5 cm
3.9" / 9.9 cm Front of Wall to Back of Speaker
Weight 5.9 lb / 2.7 kg
Packaging Info
Package Weight 13.6 lb
Box Dimensions (LxWxH) 12.5 x 10.5 x 9.5"
