JBL CBT 50LA-LS 50CM TALL COLUMN SPEAKER EN54

Product Overview

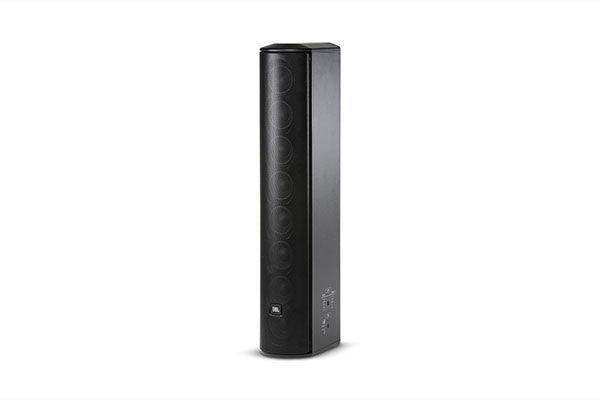

The JBL CBT 50LA-LS is an EN 54-24 certified passive line array column loudspeaker for voice-alarm and life-safety installations that also require quality program audio. Eight 50 mm drivers with JBL Constant Beamwidth Technology provide consistent vertical coverage and reduced out-of-coverage lobing in reverberant spaces. Switchable music/speech voicing and built-in 70V/100V transformers support both emergency communication and everyday distributed audio. Finished in black, it suits houses of worship, auditoriums, government spaces, and transport facilities.

Product Description

The CBT 50LA-LS shares the Constant Beamwidth Technology platform of the standard 50LA-1 and adds EN 54-24 compliance for life-safety applications when installed with the included MTC-PC2 panel cover. Analog delay beam-forming and amplitude tapering deliver even vertical coverage from a slim column, while switchable voicing tailors response for music or speech. Built-in 70V/100V transformers plus 8-ohm direct operation allow integration into constant-voltage paging and voice-alarm systems or low-impedance amplifier channels. Dynamic SonicGuard overload protection helps preserve the loudspeaker under sustained output. A swivel (pan)/tilt wall bracket is included for accurate aiming. See related models in our JBL Professional installed audio collection.

Key Features

• EN 54-24 compliance — The loudspeaker is certified for life-safety applications when installed with the included MTC-PC2 panel cover.
• Constant Beamwidth Technology — CBT processing provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
• Switchable voicing — A voicing control selects flat response for music or a midrange presence peak for speech.
• Dynamic SonicGuard protection — Low-audibility overload protection safeguards the loudspeaker during high-output operation.

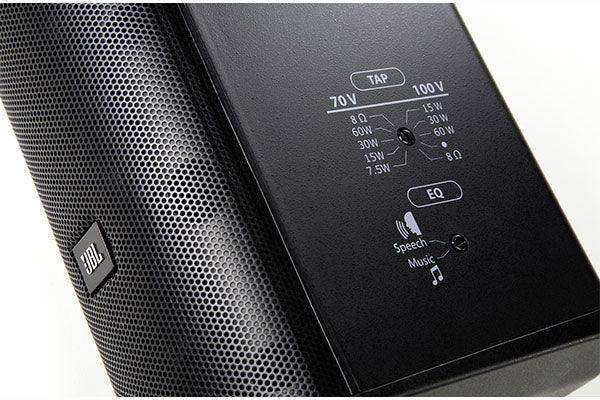

• Flexible electrical connection — A built-in 70V/100V transformer plus 8-ohm direct capability supports distributed and low-impedance systems.
• Included mounting hardware — A swivel (pan)/tilt wall bracket ships with the speaker for accurate aiming.

Typical Applications

• House of worship
• Auditorium
• Government space
• Multi-purpose room

Technical Specifications

Full electrical specifications should be confirmed against the JBL CBT 50LA-LS specification sheet.

Frequently Asked Questions

Is the CBT 50LA-LS certified for voice-alarm systems? Yes. It is EN 54-24 compliant for life-safety applications when installed with the included MTC-PC2 panel cover.

Can it be used for everyday program audio as well as emergency paging? Yes. Switchable voicing and 70V/100V operation let it serve both routine distributed audio and voice-alarm duty.

How is it connected electrically? A built-in 70V/100V transformer supports constant-voltage lines, and 8-ohm direct operation is available for low-impedance amplifier channels.

Is mounting hardware included? Yes. A swivel (pan)/tilt wall bracket is supplied for accurate aiming.

What warranty and support apply? The speaker carries the standard JBL Professional warranty, and Creation Networks can assist with life-safety system specification.
