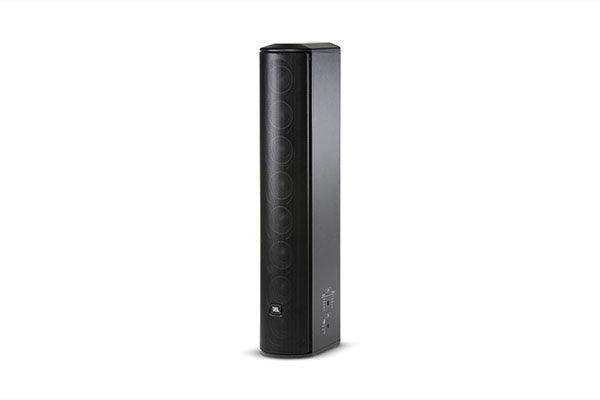

JBL CBT 50LA-1 Line Array Column Loudspeaker

Product Overview

The JBL CBT 50LA-1 is a compact passive line array column loudspeaker for small to mid-size installed-sound rooms that need clear speech reinforcement and even music coverage. Eight 50 mm drivers combined with JBL Constant Beamwidth Technology deliver consistent vertical coverage and reduce the out-of-coverage lobing typical of straight passive column speakers. Switchable music/speech voicing and built-in 70V/100V transformers make this column speaker adaptable for distributed audio in commercial spaces. Finished in black, it works well in conference rooms, multi-purpose rooms, and houses of worship.

Product Description

The CBT 50LA-1 applies analog delay beam-forming and amplitude tapering to produce smooth vertical coverage from a slim column form factor. A switchable voicing control offers flat response for music or a midrange presence peak for speech-focused applications. Built-in 70V/100V transformers plus 8-ohm direct operation allow integration on constant-voltage lines or low-impedance amplifier channels. Dynamic SonicGuard overload protection helps preserve the high-frequency section under sustained output. An improved swivel (pan)/tilt wall bracket is included for flexible aiming during installation. See related models in our JBL Professional installed audio collection.

Key Features

• Constant Beamwidth Technology — CBT processing provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
• Switchable voicing — A voicing control selects flat response for music or a midrange presence peak for speech.

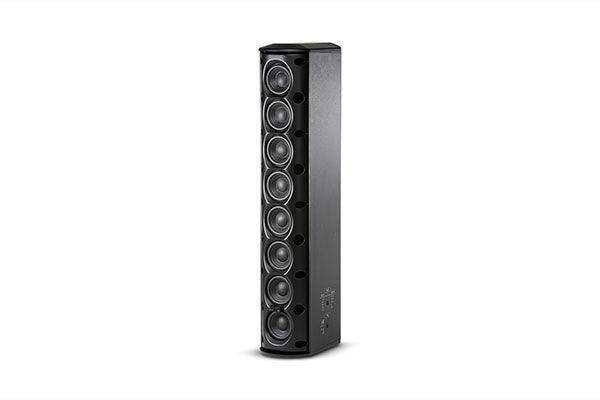

• Eight 50 mm drivers — A vertical array of eight 50 mm (2 in) drivers produces controlled coverage from a compact column.
• Dynamic SonicGuard protection — Low-audibility overload protection safeguards the loudspeaker during high-output operation.
• Flexible electrical connection — A built-in 70V/100V transformer plus 8-ohm direct capability supports distributed and low-impedance systems.
• Included mounting hardware — An improved swivel (pan)/tilt wall bracket ships with the speaker for accurate aiming.

Typical Applications

• Conference room
• Multi-purpose room
• House of worship
• Training room

Technical Specifications

Full electrical specifications should be confirmed against the JBL CBT 50LA-1 specification sheet.

Frequently Asked Questions

Can the CBT 50LA-1 run on a 70V or 100V system? Yes. A built-in transformer supports 70V/100V distributed lines, and the speaker can also run at 8 ohms directly from an amplifier channel.

What does the voicing switch do? It selects a flat response for music playback or a midrange presence peak that improves speech clarity in paging and presentation use.

Is mounting hardware included? Yes. An improved swivel (pan)/tilt wall bracket is supplied for flexible aiming.

Where is this column a good fit? It is well suited to conference rooms, training rooms, multi-purpose rooms, and smaller worship spaces that need clear, even coverage.

What warranty and support apply? The speaker carries the standard JBL Professional warranty, and Creation Networks can help with system design and quantities.
