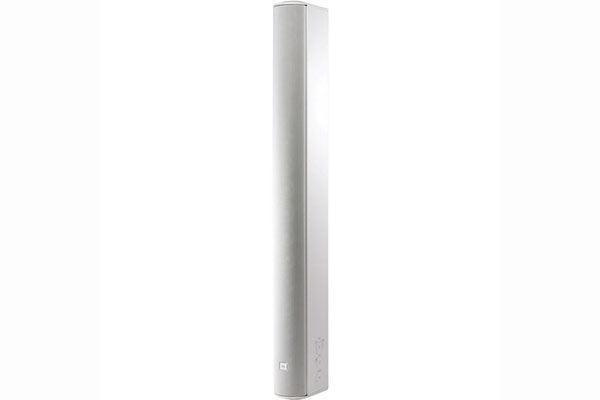

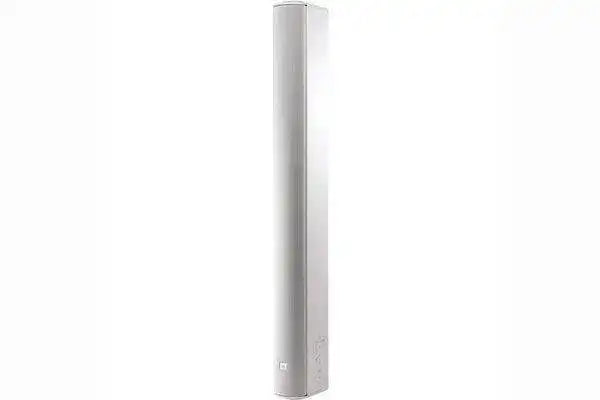

JBL CBT 100LA-1-WH Constant Beamwidth Technology Line Array Column Loudspeaker (White)

Product Overview

The JBL CBT 100LA-1-WH is a Constant Beamwidth Technology line array column loudspeaker built for high-intelligibility speech and program audio in reverberant commercial spaces. With switchable vertical coverage and a built-in 70V/100V transformer, this column array speaker drops cleanly into distributed-line and direct-drive installed audio systems alike. It suits houses of worship, auditoriums, government spaces, and multi-purpose rooms where even coverage and clear speech are essential. The white column profile blends into light-colored walls and pillars for an unobtrusive installation.

Product Description

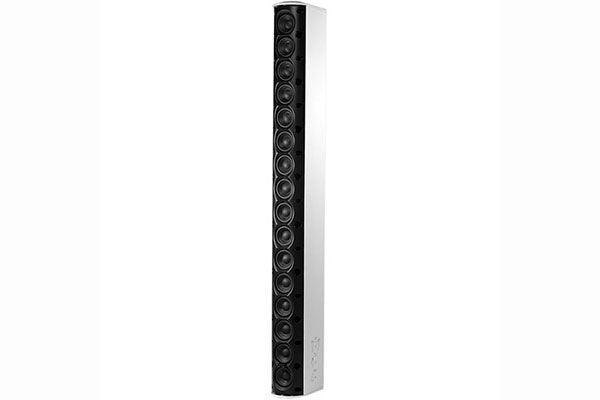

The CBT 100LA-1-WH uses sixteen 50 mm (2 in) drivers in a slim column and JBL's Constant Beamwidth Technology, which applies analog delay beam-forming and amplitude tapering to deliver consistent vertical coverage without the narrow beaming and out-of-coverage lobing typical of conventional column speakers. Vertical pattern coverage is switchable between 40 degrees for medium-throw rooms and 15 degrees for long-throw applications, letting integrators match dispersion to the space. A switchable voicing control selects flat response for music or a mid-range presence peak for speech, so a single column adapts to different program needs. The built-in 70V/100V transformer supports distributed-line installations, while 8-ohm direct drive is also available for low-impedance amplification. Dynamic SonicGuard overload protection helps guard the drivers during demanding use, and the included swivel (pan)/tilt wall bracket allows precise aiming at the audience. Specifiers building installed column systems can browse related models in our JBL Professional passive PA speakers collection.

Key Features

• Constant Beamwidth Technology — Analog beam-forming maintains consistent vertical directivity and reduces out-of-coverage lobing for clearer sound.
• Sixteen 2-Inch Drivers — A column of sixteen 50 mm (2 in) drivers provides smooth full-range column coverage.
• Switchable Vertical Coverage — The vertical pattern toggles between 40 degrees for medium throw and 15 degrees for long-throw applications.
• Speech/Music Voicing — A voicing switch selects flat music response or a mid-range presence peak optimized for speech intelligibility.
• Built-In 70V/100V Transformer — Integrated transformer taps support distributed-line systems, with 8-ohm direct drive also available.
• Dynamic SonicGuard Protection — Onboard overload protection helps safeguard the drivers during high-output operation.
• Included Swivel Wall Bracket — A pan/tilt wall bracket ships with the speaker for precise audience aiming.

Typical Applications

• House of worship
• Auditorium
• Government space
• Multi-purpose room
• Commercial meeting space
• Training room

Technical Specifications

Full electrical specifications should be confirmed against the JBL CBT 100LA-1 specification sheet.

Frequently Asked Questions

Can the CBT 100LA-1-WH run on a 70V/100V distributed system?
Yes. It has a built-in 70V/100V transformer for distributed-line installations and also supports 8-ohm direct drive for low-impedance amplifier connections.

How do I choose between the 40-degree and 15-degree settings?
Use the 40-degree pattern for medium-throw rooms where the audience is relatively close, and the 15-degree pattern for long-throw applications to project intelligible sound to the back of deeper spaces.

Is it appropriate for speech-heavy applications?
Yes. The switchable speech voicing adds a mid-range presence peak that improves intelligibility, making it well suited to houses of worship, courtrooms, and meeting spaces.

What mounting hardware is included?
A swivel (pan)/tilt wall bracket is included for precise vertical and horizontal aiming during installation.

What amplification or support is available?
Pair it with a 70V/100V or 8-ohm amplifier sized to the system load; Creation Networks can assist with amplifier selection and AV integration.
