Product Overview
The JBL AW566 is a high-power two-way all-weather loudspeaker that combines a 15-inch low-frequency transducer with a rotatable high-frequency horn for permanent outdoor sound reinforcement. It is specified where high output, extended low-frequency response, and field-adjustable coverage are needed across large exterior venues, worship campuses, and public spaces. As a JBL Professional all-weather loudspeaker, it is engineered for fixed installation.
Product Description

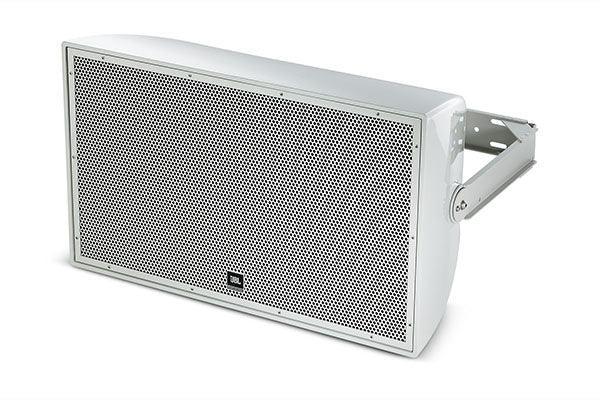

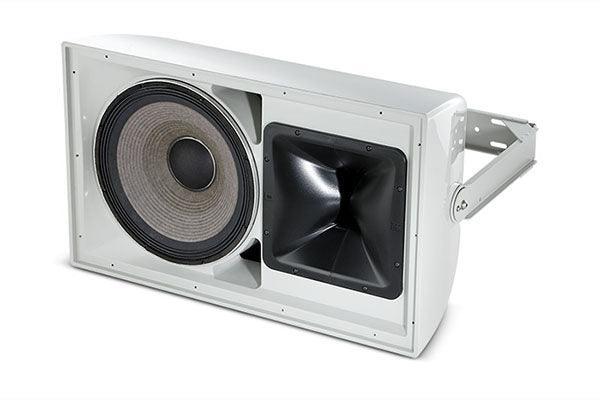

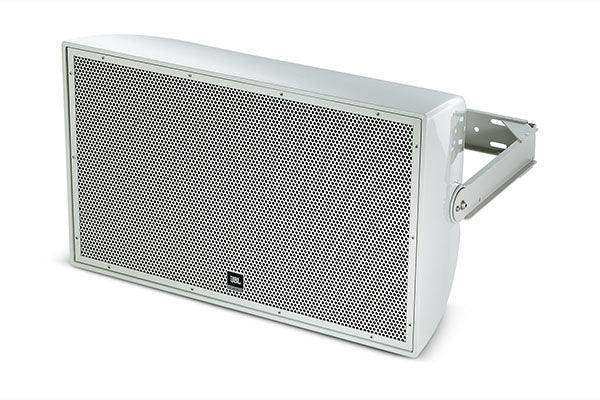

The AW566 mounts its 15-inch woofer and rotatable horn in a weather-resistant enclosure designed for long-term outdoor exposure. The rotatable horn lets integrators orient coverage to the audience plane after the cabinet is mounted, which is valuable on fixed brackets and challenging architectural sightlines. It is a passive loudspeaker driven by an external commercial amplifier with optional system processing. Integral suspension points support overhead and wall-bracket deployment in fixed-install AV systems. Explore related models in the JBL Professional installed audio collection.
Key Features
- All-weather construction — The enclosure and hardware are designed for permanent outdoor and high-humidity installation.
- 15-inch low-frequency transducer — A 15-inch woofer delivers high output and extended low-frequency response for large coverage areas.
- Rotatable high-frequency horn — The horn rotates to align the coverage pattern with the listening area after mounting.

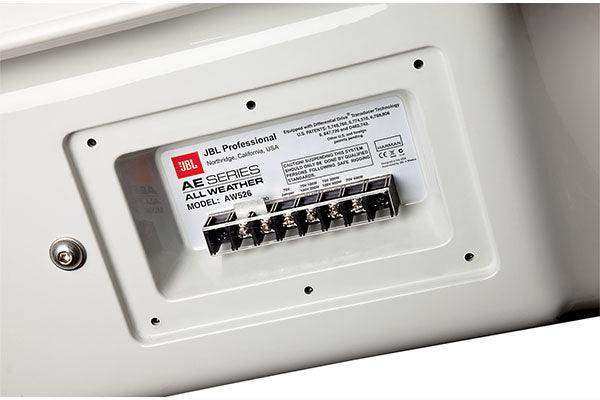

- Passive operation — An external amplifier drives the loudspeaker, giving integrators control over system gain structure.
- Gray finish — The gray enclosure blends with most exterior architectural surfaces.
Typical Applications
- House of worship
- Government space
- Multi-purpose room
- Auditorium
Technical Specifications
| Model | JBL AW566 |
| Type | Two-way passive all-weather loudspeaker |
| Low-Frequency Driver | 15-inch |
| High-Frequency Horn | Rotatable |
| Finish | Gray |
Full electrical specifications should be confirmed against the JBL AW566 specification sheet.
Frequently Asked Questions
Is the AW566 suitable for permanent outdoor installation? Yes. It is an all-weather loudspeaker engineered for fixed exterior mounting and prolonged exposure to the elements.
Does it require an external amplifier? Yes. The AW566 is passive and must be driven by a commercial-grade amplifier sized to the application.
Can coverage be adjusted after mounting? Yes. The rotatable high-frequency horn allows the coverage pattern to be oriented to the audience area once the cabinet is installed.
