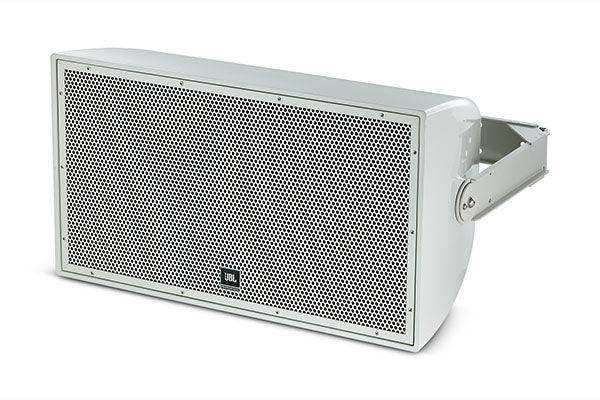

JBL AW266-LS High-Power, 2-Way Passive Outdoor Loudspeaker (Gray)
JBL AW266-LS – 12" All-Weather 2-Way Loudspeaker, Life Safety (Gray)
Product Overview
The JBL AW266-LS is a high-power, lightweight two-way all-weather loudspeaker with a 12-inch low-frequency driver, designed for outdoor and harsh-environment installation in sports facilities, themed entertainment venues, outdoor entertainment centers, cruise ships, and water parks. It pairs a 2262H Differential Drive® 12-inch woofer with a 2432H compression-driver high-frequency section behind a 60° x 60° Progressive Transition waveguide, in a weather-resistant fiberglass enclosure. It is EN 54-24 compliant for voice-alarm and life-safety sound systems in addition to general reinforcement. This listing is the gray finish.
Product Description

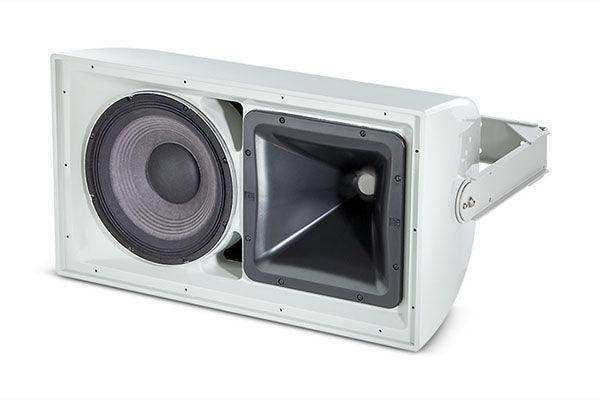

The AW266-LS uses a JBL 2262H Differential Drive® 300 mm (12 in) low-frequency driver with dual voice coil and dual magnetic gap, paired with a 2432H high-frequency compression driver (38 mm/1.5 in exit, 75 mm/3 in voice coil). The large-format PT™ Progressive Transition™ waveguide provides controlled 60° x 60° coverage with low distortion. The system can be used in vertical or horizontal orientation. A 400 W 70/100V transformer supports distributed constant-voltage line operation common in large outdoor and multi-zone systems.
The enclosure is built from multilayer glass composite and heavily braced to maximize low-frequency performance, with a 14-gauge stainless steel grille backed by open-cell foam and stainless steel mesh for protection in demanding environments. EN 54-24 compliance qualifies the AW266-LS for use in certified life-safety voice-alarm systems. As part of JBL's AE Series, the AW266-LS is engineered for long-term reliability in continuous outdoor service. The 12-inch format keeps weight and size lower than the 15-inch AW models while providing tighter, more focused coverage.
Key Features
- Weather-resistant all-fiberglass enclosure — multilayer glass composite, heavily braced.
- 2262H Differential Drive® 12-inch LF driver — dual voice coil, dual magnetic gap.
- 2432H HF compression driver — clear high-frequency reproduction.
- Large PT™ Progressive Transition™ waveguide — 60° x 60° coverage with low distortion.
- Vertical or horizontal orientation — flexible cabinet mounting.
- 400 W 70/100V transformer included — supports distributed constant-voltage systems.
- 14-gauge stainless steel grille — foam and mesh backing for harsh-environment protection.
- EN 54-24 compliant — certified for life-safety voice-alarm applications.
- Gray finish — blends with lighter surfaces.
Typical Applications
- Sports facilities and outdoor entertainment centers.
- Themed entertainment venues and water parks.
- Cruise ships and marine environments.
- Life-safety voice-alarm systems requiring EN 54-24 certified loudspeakers.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | JBL AW266-LS |
| Type | 2-way all-weather full-range loudspeaker (AE Series) |
| Coverage Pattern | 60° x 60° |
| LF Driver | 2262H Differential Drive® 300 mm (12 in), dual voice coil/dual gap |
| HF Driver | 2432H, 38 mm (1.5 in) exit / 75 mm (3 in) voice coil |
| Waveguide | Large-format PT™ Progressive Transition™ |
| Transformer | 400 W, 70/100V |
| Enclosure | Multilayer glass composite, heavily braced |
| Grille | 14-gauge stainless steel, foam + stainless mesh backing |
| Certification | EN 54-24 compliant (life safety) |
| Finish | Gray |
Competitor Comparison
| Criteria | JBL AW266-LS | Electro-Voice EVF-1122S weatherized | Community R-Series |
|---|---|---|---|
| Configuration | 2-way, 12" + HF | 2-way, 12" + HF | 2-way, 12" + HF |
| Coverage | 60° x 60° | Selectable | Multiple models |
| Weather protection | Fiberglass + stainless grille | Fiberglass weatherized | Weatherized composite |
| 70/100V transformer | Included (400 W) | Optional | Optional |
| Life-safety certification | EN 54-24 compliant | Model-dependent | Model-dependent |
| Finish options | Black or gray | Black or gray | Multiple |
The AW266-LS offers the AE all-weather build — included 400 W 70/100V transformer and stainless steel grille — in a lighter 12-inch format than the 15-inch AW595/566/526. EN 54-24 compliance makes it suitable for certified life-safety voice-alarm systems.
What's in the Box
- JBL AW266-LS all-weather loudspeaker (gray)
- 400 W 70/100V transformer (integrated)
- Product documentation
Frequently Asked Questions
How does the 12-inch AW model differ from the 15-inch versions? The 12-inch AW266 is lighter and more compact with slightly less low-frequency extension than the 15-inch AW595/566/526, suiting installations where size and weight are priorities.
What makes this the "LS" version? It is EN 54-24 compliant for life-safety voice-alarm applications where certified emergency loudspeakers are required.
Can it run on a 70V/100V distributed system? Yes. A 400 W 70/100V transformer is included for constant-voltage line operation.
How does the gray model differ from the other finish? The black and gray versions are functionally identical; only the enclosure finish differs.
For mounting, transformer tap selection, and system design, contact the Creation Networks team at creationnetworks.net.
