JBL AW266 High Power 2-Way All-Weather Loudspeaker with 12" LF (Gray)

JBL AW266 – 12" All-Weather 2-Way Loudspeaker (Gray)

Product Overview

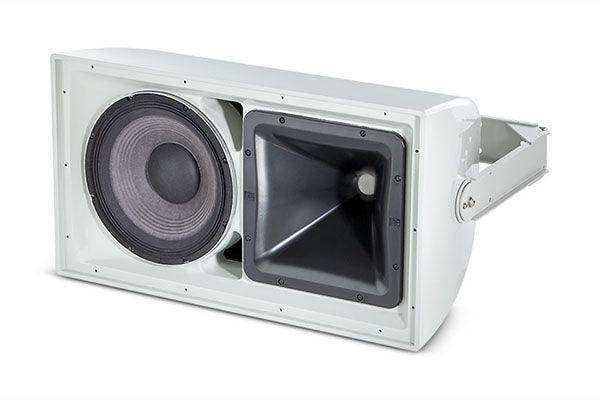

The JBL AW266 is a high-power, lightweight two-way all-weather loudspeaker with a 12-inch low-frequency driver, designed for outdoor and harsh-environment installation in sports facilities, themed entertainment venues, outdoor entertainment centers, cruise ships, and water parks. It pairs a 2262H Differential Drive® 12-inch woofer with a 2432H compression-driver high-frequency section behind a 60° x 60° Progressive Transition waveguide, in a weather-resistant fiberglass enclosure. This listing is the gray finish.

Product Description

The AW266 uses a JBL 2262H Differential Drive® 300 mm (12 in) low-frequency driver with dual voice coil and dual magnetic gap, paired with a 2432H high-frequency compression driver (38 mm/1.5 in exit, 75 mm/3 in voice coil). The large-format PT™ Progressive Transition™ waveguide provides controlled 60° x 60° coverage with low distortion. The system can be used in vertical or horizontal orientation. A 400 W 70/100V transformer supports distributed constant-voltage line operation common in large outdoor and multi-zone systems.

The enclosure is built from multilayer glass composite and heavily braced to maximize low-frequency performance, with a 14-gauge stainless steel grille backed by open-cell foam and stainless steel mesh for protection in demanding environments. A heavy-duty, weather-treated U-type mounting bracket is included for installation on flat surfaces or in 90° corners. As part of JBL's AE Series, the AW266 is engineered for long-term reliability in continuous outdoor service. The 12-inch format keeps weight and size lower than the 15-inch AW models while providing tighter, more focused coverage.

Key Features

• Weather-resistant all-fiberglass enclosure — multilayer glass composite, heavily braced.
• 2262H Differential Drive® 12-inch LF driver — dual voice coil, dual magnetic gap.
• 2432H HF compression driver — clear high-frequency reproduction.
• Large PT™ Progressive Transition™ waveguide — 60° x 60° coverage with low distortion.
• Vertical or horizontal orientation — flexible cabinet mounting.
• 400 W 70/100V transformer included — supports distributed constant-voltage systems.

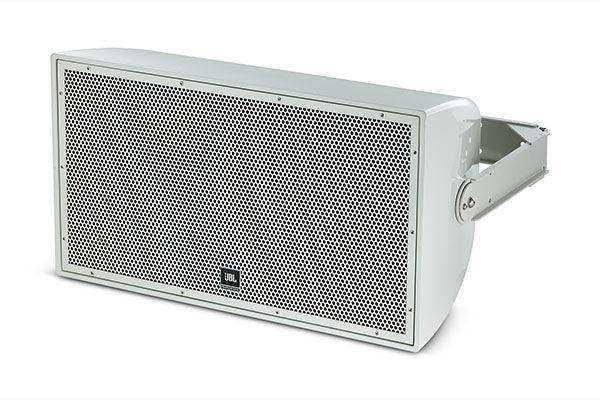

• 14-gauge stainless steel grille — foam and mesh backing for harsh-environment protection.
• U-type mounting bracket included — flat-surface or 90° corner installation.
• Gray finish — blends with lighter surfaces.

Typical Applications

• Sports facilities and outdoor entertainment centers.
• Themed entertainment venues and water parks.
• Cruise ships and marine environments.
• Outdoor multi-zone distributed (70/100V) installations.

Technical Specifications

Competitor Comparison

The AW266 offers the AE all-weather build — included 400 W 70/100V transformer and stainless steel grille — in a lighter 12-inch format than the 15-inch AW595/566/526. The included weather-treated U-type bracket simplifies flat-surface and corner mounting.

What's in the Box

• JBL AW266 all-weather loudspeaker (gray)
• U-type weather-treated mounting bracket
• 400 W 70/100V transformer (integrated)
• Product documentation

Frequently Asked Questions

How does the 12-inch AW model differ from the 15-inch versions? The 12-inch AW266 is lighter and more compact with slightly less low-frequency extension than the 15-inch AW595/566/526, suiting installations where size and weight are priorities.

Does it include a mounting bracket? Yes. A heavy-duty, weather-treated U-type bracket is included for flat-surface or 90° corner installation.

Can it run on a 70V/100V distributed system? Yes. A 400 W 70/100V transformer is included for constant-voltage line operation.

How does the gray model differ from the other finish? The black and gray versions are functionally identical; only the enclosure finish differs.

For mounting, transformer tap selection, and system design, contact the Creation Networks team at creationnetworks.net.
