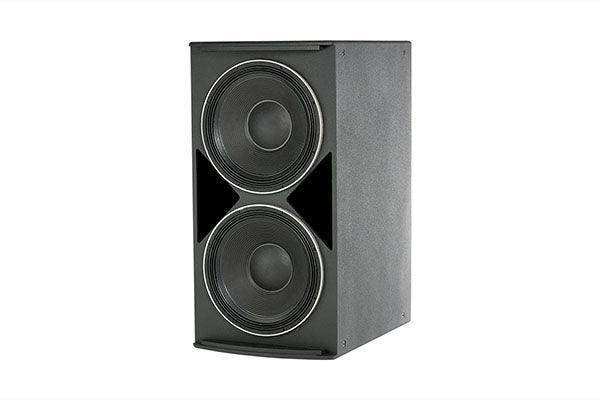

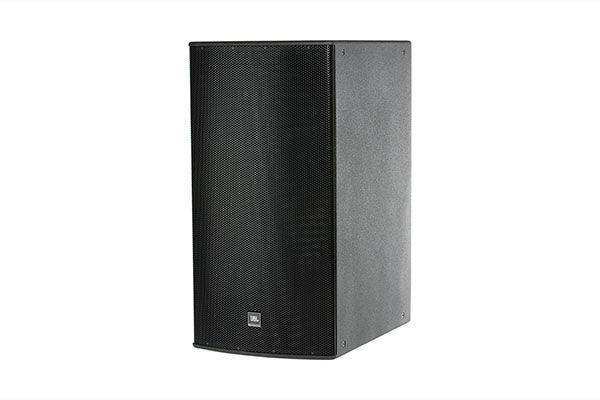

JBL ASB7128 Dual 18" Front-Firing Subwoofer (Black)

JBL ASB7128 – Dual 18" Front-Firing Subwoofer

Product Overview

The JBL ASB7128 is a high-power, front-loaded vented subwoofer built around two 2269H Ultra Long Excursion 18" Differential Drive® woofers, intended for permanent and touring low-frequency reinforcement in arenas, houses of worship, performing arts centers, and large outdoor venues. It is designed to ground-stack or fly in standalone subwoofer arrays or alongside JBL AE Series full-range models. With 4,000 watts of continuous power handling and an FIR tuning set that matches the phase profile of companion full-range boxes, the ASB7128 delivers high-output, low-distortion bass for demanding system designs.

Product Description

The ASB7128 houses two 2269H 18" transducers featuring neodymium magnet structures, dual voice coils, and dual gaps, paired with JBL's Vented Gap Cooling™ and a high-strength composite cone. This combination supports a peak-to-peak maximum excursion of 89 mm (3.5"), enabling high sustained output with extended driver life. The vented enclosure uses a large vent area to maintain low distortion at high drive levels, an important consideration where subwoofer arrays must produce sustained SPL without compression artifacts.

A switchable Parallel/Discrete input mode lets integrators wire the two drivers together or address them independently, supporting both simple stacks and more complex cardioid or end-fire array topologies. The included FIR tuning set aligns the subwoofer's phase response with full-range AE Series enclosures, simplifying time and phase integration across the system. The lightweight cabinet reduces rigging load and transport weight without sacrificing structural integrity, making the ASB7128 suitable for both fixed installation and rental inventory.

Key Features

• Dual 2269H 18" Differential Drive® transducers — dual voice coil, dual gap, neodymium-magnet woofers for high output at reduced weight.
• 4,000 W continuous / 16,000 W peak power handling — substantial headroom for sustained high-SPL low-frequency reproduction.
• Ultra Long Excursion design — 89 mm peak-to-peak excursion supports deep, high-level output with extended driver life.
• Large vent area — maintains low distortion at high drive levels in a front-loaded vented enclosure.
• Parallel/Discrete switchable input mode — supports standard stacks as well as cardioid and end-fire array configurations.
• FIR tuning set — matches the phase profile to JBL full-range models for coherent system integration.
• Lightweight cabinet — lowers rigging load and transport weight for both install and touring use.
• Ground-stack or fly — rated for stand-alone arrays or combined operation with AE Series products.

Typical Applications

• Arenas, stadiums, and large performance venues requiring high-output low-frequency reinforcement.
• Houses of worship and performing arts centers needing controlled, low-distortion bass.
• Flown or ground-stacked subwoofer arrays, including cardioid and end-fire configurations.
• Rental and staging inventories supporting AE Series full-range systems.

Technical Specifications

Competitor Comparison

The ASB7128 differs from integrated-amplifier subwoofers like the RCF SUB 9007-AS by keeping amplification external, which suits installations standardizing on rack amplification and centralized DSP. Compared with the d&b J-SUB's native cardioid design, the ASB7128's switchable Parallel/Discrete input gives integrators flexibility to build cardioid or end-fire arrays as the room requires, while the FIR tuning set keeps phase aligned with JBL AE Series full-range enclosures.

What's in the Box

• JBL ASB7128 dual 18" subwoofer enclosure (black)
• Integrated rigging/handle hardware
• Product documentation

Frequently Asked Questions

Is the ASB7128 a powered subwoofer? No. It is a passive enclosure requiring external amplification; pair it with appropriately rated amplifiers and apply the JBL FIR tuning set for correct phase alignment.

Can it be used in cardioid or end-fire arrays? Yes. The switchable Parallel/Discrete input mode lets you address the two drivers independently to build cardioid or end-fire subwoofer arrays.

Does it integrate with JBL full-range systems? Yes. The included FIR tuning set matches the phase profile to JBL full-range models, including AE Series enclosures, for coherent system response.

Can it be flown? Yes. It is rated for both ground-stacked and suspended applications using its integrated rigging hardware.

For amplifier matching and array design guidance, contact the Creation Networks team at creationnetworks.net.
