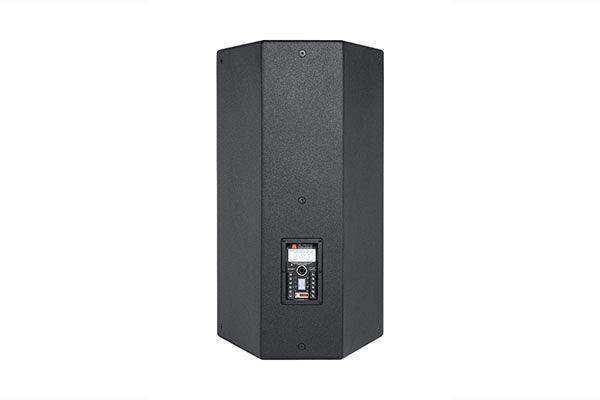

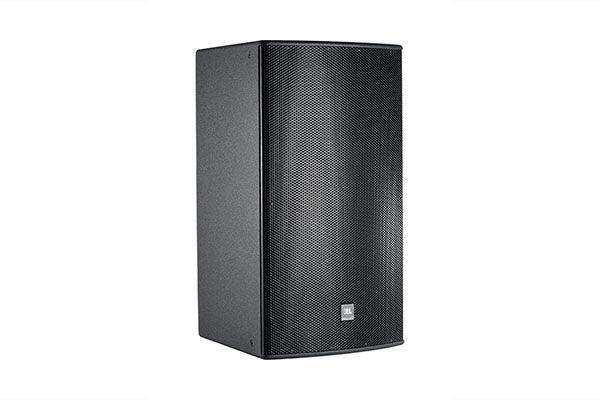

JBL AM7315/64 2-Way Loudspeaker System with 1 x 15" LF Speaker (Black)

JBL AM7315/64 – High-Power 3-Way Install Loudspeaker

Product Overview

The JBL AM7315/64 is a high-power, full-range loudspeaker from JBL's AE (Application Engineered) Series, built for fixed-installation sound reinforcement in performing arts facilities, auditoriums, houses of worship, sports facilities, and themed entertainment venues. It combines a 15-inch low-frequency driver, an 8-inch cone midrange compression driver, and a high-frequency compression driver in a single full-range cabinet, with a 60° x 40° coverage pattern (the /64 designation) and a rotatable waveguide for horizontal or vertical mounting.

Product Description

The AM7315/64 uses a 380 mm (15 in) 2265H Differential Drive® low-frequency driver, a 200 mm (8 in) CMCD™ Cone Midrange Compression Driver, and a 38 mm (1.5 in) exit / 75 mm (3 in) voice-coil 2432H high-frequency compression driver. The CMCD midrange reduces low-midrange distortion while increasing sensitivity, extending bandwidth, and improving phase coherency. The multi-band PT™ Progressive Transition™ mid-high waveguide delivers well-controlled coverage and is rotatable so the cabinet can be oriented horizontally or vertically without changing the aimed pattern.

High-slope crossovers minimize band overlap, and the well-controlled off-axis response improves arrayability when multiple units are combined. The system is switchable between bi-amp and tri-amp operation, giving system designers flexibility in amplifier topology, and the cabinet is fitted with M10 threaded suspension points with pre-engineered array bracketry available for suspended installations.

Key Features

• 2265H Differential Drive® 15-inch LF driver — high output with low distortion.
• CMCD™ cone midrange compression driver — reduced distortion, higher sensitivity, improved phase coherency.
• 2432H HF compression driver — clear high-frequency reproduction.
• PT™ Progressive Transition™ waveguide — controlled 60° x 40° coverage, rotatable for cabinet orientation.
• Bi-amp / tri-amp switchable — flexible amplifier topology.
• High-slope crossovers — minimized band overlap and improved off-axis response.
• M10 threaded suspension points — with optional pre-engineered array bracketry.
• AE Series design — versatile for a wide range of fixed installations.

Typical Applications

• Performing arts facilities, auditoriums, and theatrical sound design.
• Houses of worship and live/dance clubs.
• Sports facilities and themed entertainment venues.
• Arrayed installations requiring controlled directivity.

Technical Specifications

Competitor Comparison

The AM7315/64's dedicated CMCD cone midrange sets it apart from two-way install boxes like the EV EVF-1152D, giving lower midrange distortion and better phase coherency for music-intensive venues. Its rotatable PT waveguide and bi-amp/tri-amp switching provide more deployment and amplification flexibility than fixed-pattern, passive-only alternatives.

What's in the Box

• JBL AM7315/64 loudspeaker (black)
• M10 suspension hardware
• Product documentation

Note: Pre-engineered array bracketry available separately.

Frequently Asked Questions

What does the "/64" mean? It denotes the coverage pattern: 60° horizontal by 40° vertical. The rotatable waveguide lets you mount the cabinet horizontally or vertically while keeping that pattern aimed correctly.

Is this a 2-way or 3-way system? It is a 3-way full-range system with a 15-inch LF driver, an 8-inch CMCD cone midrange compression driver, and an HF compression driver.

Can it be bi-amped or tri-amped? Yes. The crossover is switchable between bi-amp and tri-amp operation to suit your amplifier setup.

How is it rigged? Via M10 threaded suspension points, with optional pre-engineered array bracketry for suspended arrays.

For amplifier matching and array bracketry, contact the Creation Networks team at creationnetworks.net.
