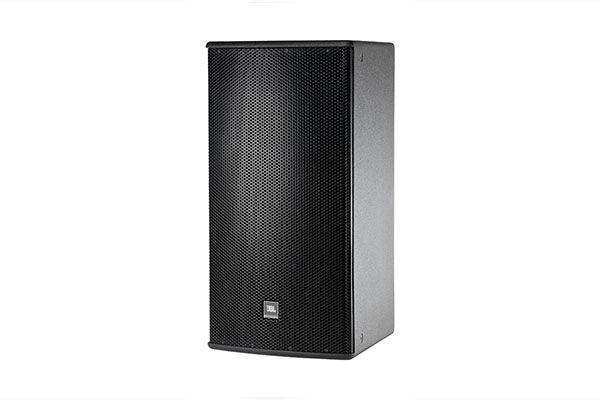

JBL AM5215/95 Passive 2-Way 15" Loudspeaker System (Black)
JBL AM5215/95 Passive 2-Way 15" Loudspeaker System (Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
JBL AM5215/95 Passive 2-Way 15" Loudspeaker System (Black)
Product Overview

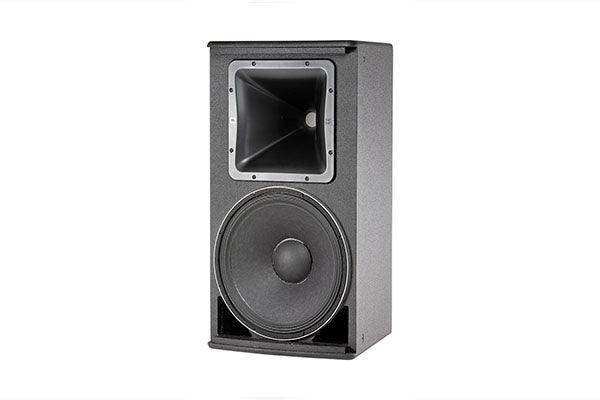

The JBL AM5215/95 is a 15-inch two-way full-range passive loudspeaker from JBL's AE (Application Engineered) Series, built for medium-power fixed-installation commercial AV that needs wide coverage with extended low end. It pairs a 15-inch low-frequency transducer with a compression driver on a rotatable Progressive Transition waveguide set to a 90° x 50° coverage pattern. The wide horizontal pattern fills broad seating areas in auditoriums, houses of worship, and large multi-purpose rooms.
Product Description
The AM5215/95 is engineered for permanent mounting where full-range program audio must cover a wide audience evenly. Its 90° x 50° pattern spreads output broadly while controlling vertical dispersion, and the 15-inch driver extends usable low frequency. The rotatable waveguide can be oriented for landscape or portrait installation, and the rugged enclosure supports flown or surface mounting via multiple threaded suspension points with JBL bracket accessories. As a low-impedance passive loudspeaker, it is driven from a commercial amplifier and integrates into reinforcement and program-audio systems. For comparable models, browse the JBL Professional Installed Audio collection.
Key Features
- 15" Two-Way Full-Range Design — A 15-inch LF transducer and compression driver deliver medium-power output with extended low end.
- 90° x 50° Coverage — Wide horizontal, controlled vertical dispersion fills broad rooms evenly.
- Rotatable PT Waveguide — Rotates for landscape or portrait orientation with smooth power response.
- Flexible Suspension — Multiple threaded suspension points accept JBL bracket accessories.
- AE Series Engineering — Part of JBL's Application Engineered family for commercial install.
Typical Applications
- Auditorium
- House of worship
- Multi-purpose room
- Commercial meeting space
- Government space
Technical Specifications
| System Type | 2-way full-range passive loudspeaker |
| Low-Frequency Driver | 15 in |
| High-Frequency Driver | Compression driver, horn-loaded |
| Coverage Pattern | 90° x 50° |
| Waveguide | Rotatable Progressive Transition (PT) |
| Mounting | Multiple threaded suspension points; JBL bracket accessories |
| Operation | Low-impedance passive (external amplifier required) |
| Series | JBL AE / AM5200 Series |
| Color | Black |
Full electrical specifications (power handling, sensitivity, maximum SPL, frequency response, impedance) should be confirmed against the JBL AM5215/95 specification sheet.
Frequently Asked Questions
Does the AM5215/95 require an external amplifier?
Yes. It is a low-impedance passive loudspeaker driven from a commercial amplifier channel rated for its load and power.
What does the 90° x 50° pattern provide?
Wide horizontal coverage with controlled vertical dispersion for broad, even fill in wide rooms.
What warranty and support apply?
Covered under JBL Professional's installed-sound warranty. Contact Creation Networks at sales@creationnetworks.net for spec sheets and amplifier matching.
