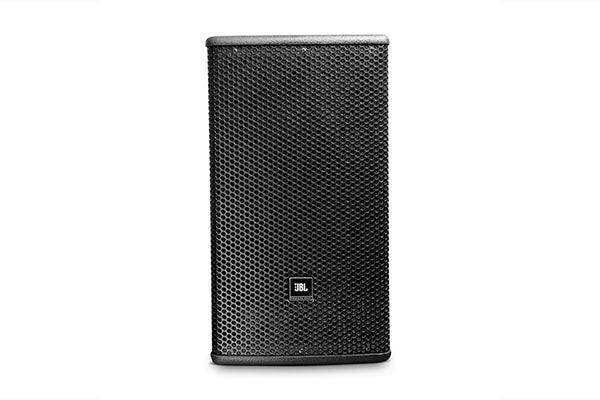

JBL AC895 8" 2-Way Full-Range Passive Loudspeaker System (Black)

Product Overview

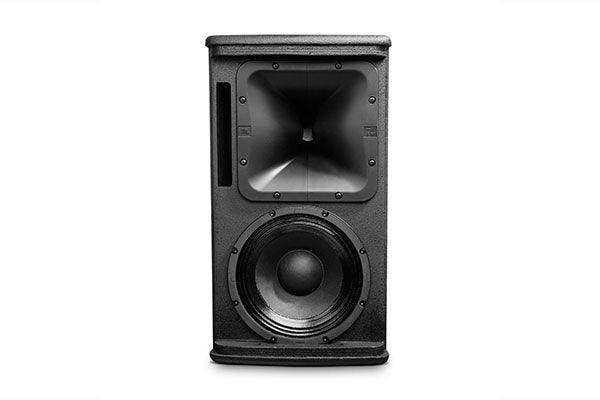

The JBL AC895 is an 8-inch two-way full-range passive loudspeaker built for compact, fixed-installation commercial AV where speech intelligibility and even coverage matter in a small footprint. Part of JBL's AE (Application Engineered) Series, this commercial AV loudspeaker pairs a 209 mm (8 in) low-frequency driver with a 25 mm (1 in) exit compression driver on a rotatable 90° x 50° waveguide. The compact cabinet and rotatable horn make the AC895 a flexible installed-sound loudspeaker for conference rooms, training rooms, houses of worship, and multi-purpose rooms.

Product Description

The AC895 is a compact install loudspeaker engineered for permanent mounting where space and sightlines are limited. Its rotatable 90° x 50° waveguide delivers controlled asymmetric coverage that integrators can orient for landscape or portrait mounting to match room geometry. The 15 mm multi-ply enclosure carries a durable textured finish and is fitted with M10 threaded suspension points plus four rear threaded inserts compatible with JBL MultiMount and U-bracket hardware for flown or surface installation. Dual Neutrik NL4 connectors with parallel screw terminals simplify loop-through wiring and zone daisy-chaining. As a low-impedance passive loudspeaker, the AC895 is powered from a commercial amplifier and integrates into reinforcement, paging, and program-audio designs. For comparable installed-audio models, browse the JBL Professional Installed Audio collection.

Key Features

• 8" Two-Way Full-Range Design — A 209 mm (8 in) LF driver and 1" exit compression driver cover speech and program material from a small enclosure.
• Rotatable 90° x 50° Waveguide — The horn rotates so integrators can match coverage to landscape or portrait mounting and room shape.
• Compact Footprint — A small 15 mm multi-ply cabinet fits tight installations while maintaining controlled coverage.
• Flexible Suspension — M10 suspension points and four rear threaded inserts accept JBL MultiMount and U-bracket hardware for flown or surface mounting.
• Dual NL4 Plus Screw Terminals — Loop-through wiring speeds multi-speaker zone installs and rack integration.
• AE Series Engineering — Part of JBL's Application Engineered family, designed specifically for fixed-installation commercial AV.

Typical Applications

• Conference room
• Training room
• House of worship
• Multi-purpose room
• Commercial meeting space
• Government space

Technical Specifications

Frequently Asked Questions

What amplifier does the AC895 require?
The AC895 is a low-impedance passive loudspeaker with no onboard transformer, so it is powered from a commercial amplifier channel rated for its load. Match amplifier output to the speaker's power rating and the number of units per channel.

Is the AC895 a good fit for smaller rooms?
Yes. The compact 8-inch format and rotatable 90° x 50° waveguide make it well suited to conference rooms, training rooms, and other smaller commercial spaces that still need controlled coverage.

Can the AC895 be flown or suspended?
Yes. It provides M10 threaded suspension points and four rear threaded inserts that accept JBL MultiMount and U-bracket accessories. Use load-rated rigging hardware for the installation.

What warranty and support are included?
The AC895 is covered under JBL Professional's installed-sound warranty. Creation Networks provides system design and integration support — contact our team for amplifier matching and deployment guidance.
