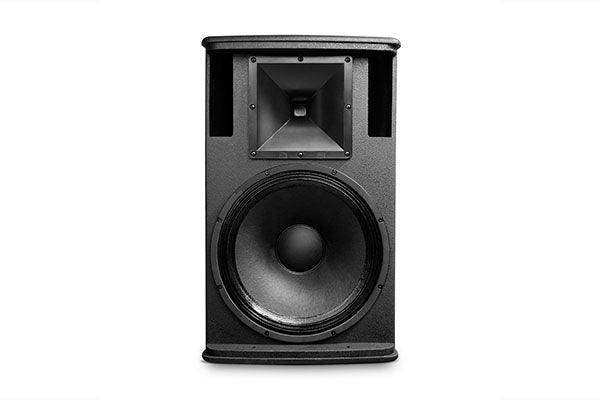

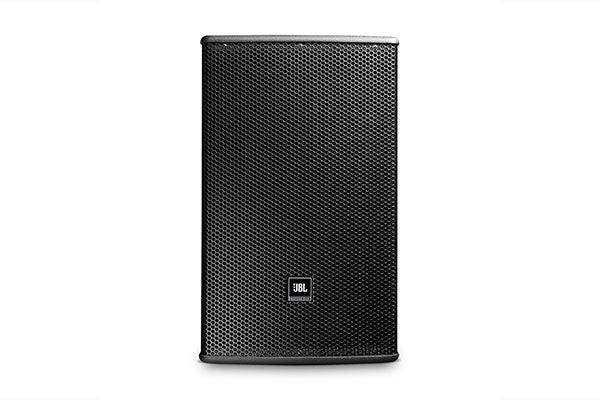

JBL AC599 2-Way Full-Range 15" Passive Loudspeaker System (Black)

Product Overview

The JBL AC599 is a 15-inch two-way full-range passive loudspeaker for fixed-installation commercial AV that needs high output with wide, even room coverage. Part of JBL's AE (Application Engineered) Series, this installed-sound loudspeaker combines a 384 mm (15 in) low-frequency driver with a 25 mm (1 in) exit compression driver on a 90° x 90° waveguide. The 15-inch woofer adds low-frequency authority while the wide pattern fills broad seating areas, making the AC599 a strong main loudspeaker for auditoriums, houses of worship, and large multi-purpose rooms.

Product Description

The AC599 is a high-output install loudspeaker engineered for permanent mounting where a single box must cover a wide audience with full-range program audio. Its 90° x 90° waveguide spreads output broadly and consistently, and the 15-inch driver extends usable low end for music. The 15 mm multi-ply enclosure carries a durable textured finish and is fitted with M10 threaded suspension points plus four rear threaded inserts compatible with JBL MultiMount and U-bracket hardware. Dual Neutrik NL4 connectors with parallel screw terminals support loop-through wiring across an amplified zone. As a low-impedance passive loudspeaker, the AC599 is powered from a commercial amplifier and integrates into reinforcement and program-audio systems. For comparable installed-audio models, browse the JBL Professional Installed Audio collection.

Key Features

• 15" Two-Way Full-Range Design — A 384 mm (15 in) LF driver and 1" exit compression driver deliver high output and extended low end.
• 90° x 90° Wide Coverage — A broad symmetrical pattern fills wide seating areas evenly from a single enclosure.
• 15 mm Multi-Ply Enclosure — A rigid, textured-finish cabinet is built for permanent, high-duty commercial installation.
• Flexible Suspension — M10 suspension points and four rear threaded inserts accept JBL MultiMount and U-bracket hardware for flown or surface mounting.
• Dual NL4 Plus Screw Terminals — Loop-through wiring speeds multi-speaker zone installs and rack integration.
• AE Series Engineering — Part of JBL's Application Engineered family, designed specifically for fixed-installation commercial AV.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• Commercial meeting space
• All-hands room
• Government space

Technical Specifications

Frequently Asked Questions

What amplifier does the AC599 require?
The AC599 is a low-impedance passive loudspeaker with no onboard transformer, so it is powered from a commercial amplifier channel rated for its load. Match amplifier output to the speaker's power rating and the number of units per channel.

How is the 90° x 90° pattern best used?
The wide symmetrical pattern suits broad, even fill of a seating area from a single enclosure, making the AC599 a capable main loudspeaker in wide rooms.

Can the AC599 be flown or suspended?
Yes. It provides M10 threaded suspension points and four rear threaded inserts that accept JBL MultiMount and U-bracket accessories. Use load-rated rigging hardware for the installation.

What warranty and support are included?
The AC599 is covered under JBL Professional's installed-sound warranty. Creation Networks provides system design and integration support — contact our team for amplifier matching and coverage planning.
