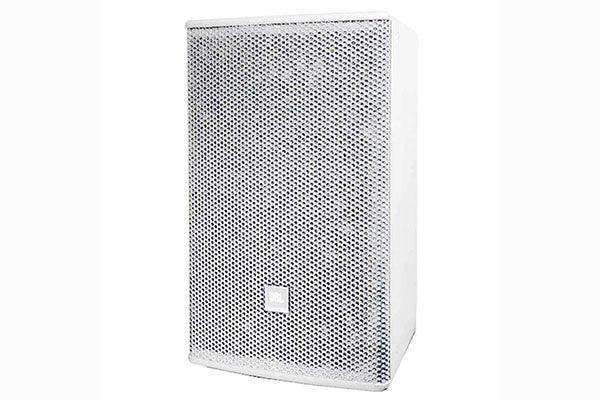

JBL AC299-WH 12" 2-Way Full-Range Passive Loudspeaker System (White)

Product Overview

The JBL AC299-WH is a 12-inch two-way full-range passive loudspeaker for fixed-installation commercial AV that needs higher output with wide, even room coverage. Part of JBL's AE (Application Engineered) Series, this installed-sound loudspeaker combines a 310 mm (12 in) low-frequency driver with a 25 mm (1 in) exit compression driver on a 90° x 90° waveguide. Its white finish blends into light architecture, and the wide symmetrical pattern fills broad seating areas evenly in auditoriums, houses of worship, and large multi-purpose rooms.

Product Description

The AC299-WH is a higher-output install loudspeaker engineered for permanent mounting where a single box must cover a wide audience. Its 90° x 90° waveguide spreads output broadly and consistently, supporting even speech intelligibility across the room. The 15 mm multi-ply enclosure carries a durable white textured finish and measures 17 in (W) x 25 in (H) x 17 in (D); it is fitted with M10 threaded suspension points plus four rear threaded inserts compatible with JBL MultiMount and U-bracket hardware. Dual Neutrik NL4 connectors with parallel screw terminals support loop-through wiring across an amplified zone. As a low-impedance passive loudspeaker, the AC299-WH is powered from a commercial amplifier and integrates into reinforcement and program-audio systems. For comparable installed-audio models, browse the JBL Professional Installed Audio collection.

Key Features

• 12" Two-Way Full-Range Design — A 310 mm (12 in) LF driver and 1" exit compression driver deliver higher output for larger rooms.
• 90° x 90° Wide Coverage — A broad symmetrical pattern fills wide seating areas evenly from a single enclosure.
• White Architectural Finish — The white textured cabinet (17 x 25 x 17 in) blends into light-colored ceilings and walls.
• Flexible Suspension — M10 suspension points and four rear threaded inserts accept JBL MultiMount and U-bracket hardware for flown or surface mounting.
• Dual NL4 Plus Screw Terminals — Loop-through wiring speeds multi-speaker zone installs and rack integration.
• AE Series Engineering — Part of JBL's Application Engineered family, designed specifically for fixed-installation commercial AV.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• Commercial meeting space
• All-hands room
• Government space

Technical Specifications

Frequently Asked Questions

What amplifier does the AC299-WH require?
It is a low-impedance passive loudspeaker with no onboard transformer, so it is powered from a commercial amplifier channel rated for its load. Match amplifier output to the speaker's power rating and the number of units per channel.

How is the 90° x 90° pattern best used?
The wide symmetrical pattern is intended for broad, even fill of a seating area from a single enclosure, making it a good main or fill speaker in wide rooms.

Can the AC299-WH be flown or suspended?
Yes. It provides M10 threaded suspension points and four rear threaded inserts that accept JBL MultiMount and U-bracket accessories. Use load-rated rigging hardware for the installation.

What warranty and support are included?
The AC299-WH is covered under JBL Professional's installed-sound warranty. Creation Networks provides system design and integration support — contact our team for amplifier matching and coverage planning.
