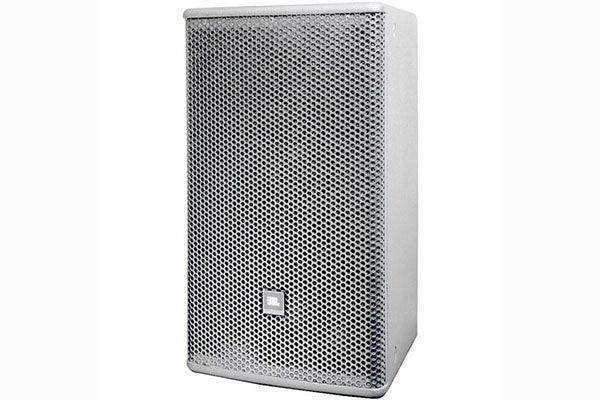

JBL AC195-WH 10" 2-Way Full-Range Passive Loudspeaker System (White)

Product Overview

The JBL AC195-WH is a 10-inch two-way full-range passive loudspeaker built for fixed-installation commercial AV, where consistent speech intelligibility and program audio matter across a wide audience area. Part of JBL's AE (Application Engineered) Series, this commercial AV loudspeaker pairs a 258 mm (10 in) low-frequency driver with a 25 mm (1 in) exit compression driver on a rotatable 90° x 50° waveguide. Its white finish blends into bright ceilings and walls, and integrators can rotate the horn to orient coverage for landscape or portrait mounting in auditoriums, worship spaces, and multi-purpose rooms.

Product Description

The AC195-WH is a compact, mid-size install loudspeaker engineered for permanent mounting in commercial environments. Its rotatable 90° x 50° waveguide delivers controlled asymmetric coverage that can be matched to room geometry, helping maintain even coverage from the front rows to the back wall without excessive spill. The 15 mm multi-ply enclosure carries a durable white textured finish and is fitted with M10 threaded suspension points plus four rear threaded inserts compatible with JBL MultiMount and U-bracket hardware for flown or surface-mount installation. Dual Neutrik NL4 connectors with parallel screw terminals simplify loop-through wiring and zone daisy-chaining in a commercial AV system. As a low-impedance passive loudspeaker, the AC195-WH is driven from a commercial power amplifier and integrates cleanly into reinforcement, paging, and program-audio designs. For comparable installed-audio models, browse the JBL Professional Installed Audio collection.

Key Features

• 10" Two-Way Full-Range Design — A 258 mm (10 in) LF driver and 1" exit compression driver cover speech and program material from a single compact enclosure.
• Rotatable 90° x 50° Waveguide — The horn rotates so integrators can match coverage to landscape or portrait mounting and room shape.
• White Architectural Finish — The white textured cabinet blends into light-colored ceilings and walls in finished commercial spaces.
• Flexible Suspension — M10 suspension points and four rear threaded inserts accept JBL MultiMount and U-bracket hardware for flown or surface mounting.
• Dual NL4 Plus Screw Terminals — Loop-through wiring speeds multi-speaker zone installs and rack integration.
• AE Series Engineering — Part of JBL's Application Engineered family, designed specifically for fixed-installation commercial AV.

Typical Applications

• House of worship
• Auditorium
• Multi-purpose room
• Commercial meeting space
• All-hands room
• Government space

Technical Specifications

Frequently Asked Questions

What amplifier does the AC195-WH require?
It is a low-impedance passive loudspeaker with no onboard transformer, so it is powered from a commercial amplifier channel rated for its load. Match amplifier output to the speaker's power rating and the number of units per channel.

Can the AC195-WH be flown or suspended?
Yes. It provides M10 threaded suspension points and four rear threaded inserts that accept JBL MultiMount and U-bracket accessories. Always use load-rated rigging hardware appropriate to the installation.

How does it integrate into a multi-zone AV system?
Dual Neutrik NL4 connectors with parallel screw terminals allow loop-through wiring, so multiple units can be daisy-chained within an amplified zone for distributed reinforcement.

What warranty and support are included?
The AC195-WH is covered under JBL Professional's installed-sound warranty. Creation Networks provides system design and integration support — contact our team for amplifier matching and deployment guidance.
