JBL AC18/95-WH 2-Way 8" Loudspeaker (White)

Product Overview

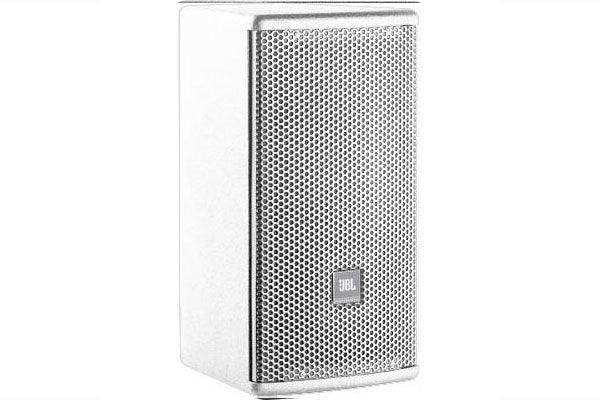

The JBL AC18/95-WH is an 8-inch two-way passive install loudspeaker from JBL's AE Compact Series, built for fixed commercial AV that needs wide, controlled coverage from a discreet enclosure. It pairs an 8-inch low-frequency transducer with a 1-inch exit compression driver on a 90° x 50° waveguide for articulate speech and balanced program audio across a broad seating area. Its white finish blends into light architecture, and the compact cabinet surface-mounts close to walls and ceilings for under-balcony, column, or distributed coverage.

Product Description

The AC18/95-WH is a single-woofer compact install loudspeaker engineered for permanent mounting in commercial environments. Its 90° x 50° waveguide spreads output broadly while controlling vertical dispersion, supporting even intelligibility in wide rooms. The enclosure carries JBL's white textured DuraFlex finish with a foam-backed powder-coated steel grille for install-grade durability, and dual Neutrik NL4 connectors plus screw terminals support series or parallel wiring. Multiple threaded suspension points and an optional U-bracket or OmniMount-type accessory provide vertical or horizontal mounting flexibility. As a low-impedance passive loudspeaker, the AC18/95-WH pairs with external amplification and integrates into reinforcement, paging, and program-audio systems. For comparable installed-audio models, browse the JBL Professional Installed Audio collection.

Key Features

• 8" Two-Way Compact Design — An 8-inch LF driver and 1-inch exit compression driver deliver full-range output from a small footprint.
• 90° x 50° Waveguide — Wide horizontal, controlled vertical coverage fills broad seating areas evenly.
• White Architectural Finish — A white textured DuraFlex cabinet blends into light-colored ceilings and walls.
• Dual NL4 Plus Screw Terminals — Supports series or parallel wiring and loop-through across an amplified zone.
• Flexible Mounting — Threaded suspension points plus optional U-bracket or OmniMount-type hardware allow vertical or horizontal placement.
• AE Compact Series — Part of JBL's compact install loudspeaker family for fixed commercial AV.

Typical Applications

• Conference room
• House of worship
• Multi-purpose room
• Commercial meeting space
• Auditorium
• Training room

Technical Specifications

Full electrical specifications (power handling, sensitivity, maximum SPL, frequency response, and impedance) should be confirmed against the JBL AC18/95 specification sheet.

Frequently Asked Questions

Does the AC18/95-WH require an external amplifier?
Yes. It is a low-impedance passive loudspeaker and requires external amplification matched to its rated load and power.

What does the 90° x 50° pattern provide?
Wide horizontal coverage with controlled vertical dispersion suits broad rooms where even left-to-right fill is needed without excessive ceiling/floor energy.

How does it mount?
Threaded suspension points and an optional U-bracket or OmniMount-type accessory support vertical or horizontal installation.

What warranty and support apply?
The AC18/95-WH carries JBL Professional's manufacturer warranty. Contact Creation Networks at sales@creationnetworks.net for specification sheets and integration support.
