JBL AC18/95 2-Way 8" Loudspeaker (Black)
Product Overview

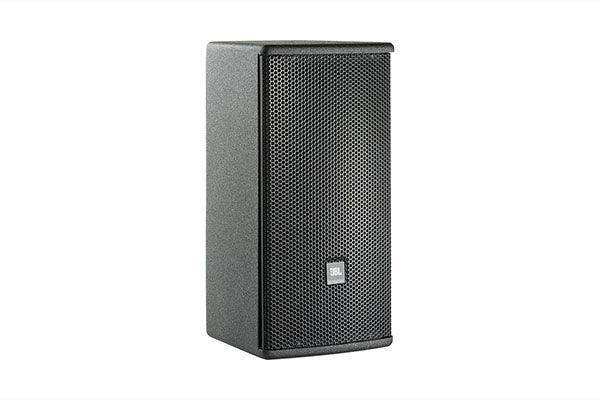

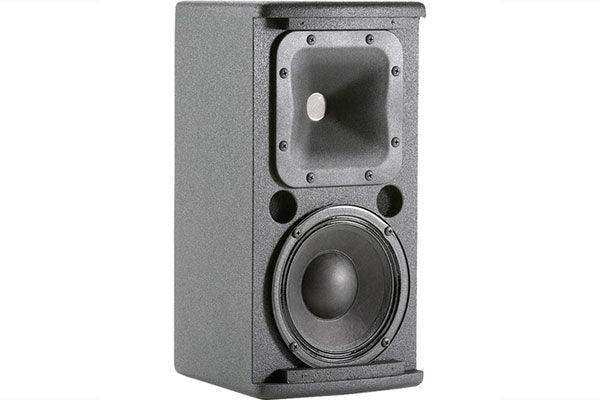

The JBL AC18/95 is an 8-inch two-way passive install loudspeaker from JBL's AE Compact Series, built for fixed commercial AV that needs wide, controlled coverage from a discreet enclosure. It pairs an 8-inch low-frequency transducer with a 1-inch exit compression driver on a 90° x 50° waveguide for articulate speech and balanced program audio across a broad seating area. The compact cabinet surface-mounts close to walls and ceilings for under-balcony, column, or distributed coverage in commercial spaces.
Product Description
The AC18/95 is a single-woofer compact install loudspeaker engineered for permanent mounting in commercial environments. Its 90° x 50° waveguide spreads output broadly while controlling vertical dispersion, supporting even intelligibility in wide rooms. The enclosure carries JBL's textured DuraFlex finish with a foam-backed powder-coated steel grille for install-grade durability, and dual Neutrik NL4 connectors plus screw terminals support series or parallel wiring. Multiple threaded suspension points and an optional U-bracket or OmniMount-type accessory provide vertical or horizontal mounting flexibility. As a low-impedance passive loudspeaker, the AC18/95 pairs with external amplification and integrates into reinforcement, paging, and program-audio systems. For comparable installed-audio models, browse the JBL Professional Installed Audio collection.
Key Features
- 8" Two-Way Compact Design — An 8-inch LF driver and 1-inch exit compression driver deliver full-range output from a small footprint.
- 90° x 50° Waveguide — Wide horizontal, controlled vertical coverage fills broad seating areas evenly.
- DuraFlex Install Build — A textured DuraFlex finish and foam-backed steel grille stand up to permanent commercial installation.
- Dual NL4 Plus Screw Terminals — Supports series or parallel wiring and loop-through across an amplified zone.
- Flexible Mounting — Threaded suspension points plus optional U-bracket or OmniMount-type hardware allow vertical or horizontal placement.
- AE Compact Series — Part of JBL's compact install loudspeaker family for fixed commercial AV.
Typical Applications
- Conference room
- House of worship
- Multi-purpose room
- Commercial meeting space
- Auditorium
- Training room
Technical Specifications
| System Type | 2-way passive install loudspeaker (single 8 in LF) |
| Low-Frequency Driver | 203 mm (8 in) |
| High-Frequency Driver | 25 mm (1 in) exit compression driver |
| Coverage Pattern | 90° x 50° waveguide |
| Enclosure | Textured DuraFlex finish; foam-backed steel grille |
| Input Connectors | Dual Neutrik NL4 + screw terminals |
| Mounting | Threaded suspension points; optional U-bracket / OmniMount-type |
| Operation | Low-impedance passive (external amplifier required) |
| Series | JBL AE Compact Series |
| Color | Black |
Full electrical specifications (power handling, sensitivity, maximum SPL, frequency response, and impedance) should be confirmed against the JBL AC18/95 specification sheet.
Frequently Asked Questions
Does the AC18/95 require an external amplifier?
Yes. It is a low-impedance passive loudspeaker and requires external amplification matched to its rated load and power.
What does the 90° x 50° pattern provide?
Wide horizontal coverage with controlled vertical dispersion suits broad rooms where even left-to-right fill is needed without excessive ceiling/floor energy.
How does it mount?
Threaded suspension points and an optional U-bracket or OmniMount-type accessory support vertical or horizontal installation.
What warranty and support apply?
The AC18/95 carries JBL Professional's manufacturer warranty. Contact Creation Networks at sales@creationnetworks.net for specification sheets and integration support.
