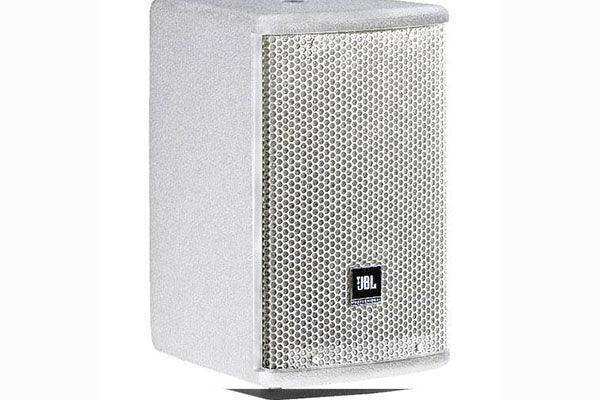

JBL AC15-WH 2-Way 5.25" Loudspeaker (Sold as pair/White)

Product Overview

The JBL AC15-WH is the white-finish version of JBL's ultra-compact 2-way install loudspeaker, sold as a pair, designed to deliver full-range output and even coverage from a visually discreet enclosure. With a 5.25-inch (135 mm) low-frequency transducer and a 1-inch dome tweeter on a 90° x 90° waveguide, it suits fixed commercial installations where space and sight lines are constrained. The compact cabinet mounts close to walls and ceilings, making it a practical under-balcony loudspeaker or surface-mount commercial loudspeaker for distributed coverage, and the white finish blends into light-colored interiors. As part of JBL's AE Compact Series, the AC15-WH pairs with external amplification for a clean, low-profile installed system.

Product Description

This AC15-WH listing is a matched pair of passive loudspeakers, each using a 5.25-inch Symmetrical Field Geometry (SFG) low-frequency transducer with a copper-clad aluminum 1.5-inch voice coil and a 1-inch dome tweeter in a 90° x 90° waveguide for smooth power response. As a 5.25-inch 2-way install loudspeaker, each cabinet handles 150 W continuous (300 W program, 600 W peak, IEC) at a 16-ohm nominal impedance and reproduces a frequency response of 90 Hz to 18 kHz. The rugged multi-ply hardwood enclosure carries JBL's textured white DuraFlex finish and a foam-backed powder-coated steel grille, and works in both vertical and horizontal orientations for flexible placement. Dual Neutrik NL4 connectors plus screw terminals simplify wiring, while M8 suspension points and M6 OmniMount-type points support an optional U-bracket for under-balcony, column, or wall mounting. For higher output or a larger format, the 6.5-inch JBL AC16-WH loudspeaker shares the same AE Compact design language.

Key Features

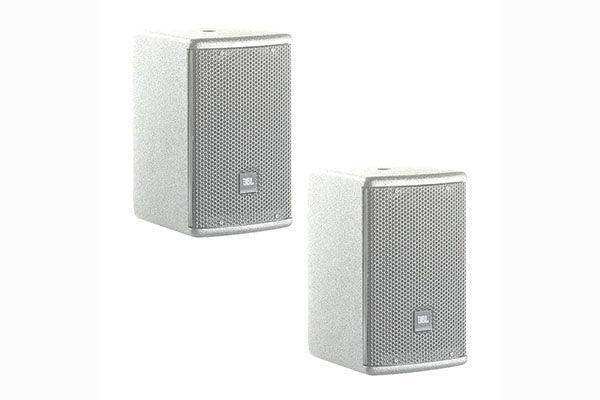

• Sold as a matched pair — Two AC15-WH loudspeakers ship together for stereo or multi-point distributed coverage.
• 5.25-inch SFG low-frequency transducer — Symmetrical Field Geometry design with a 1.5-inch voice coil reduces inductance and distortion for clear output.
• 1-inch dome tweeter on 90° x 90° waveguide — Provides even, predictable coverage across the listening area.
• Ultra-compact enclosure — Mounts close to walls and ceilings for under-balcony, column, or wall placement.
• 300 W program power handling — 150 W continuous / 300 W program / 600 W peak (IEC) at 16 ohms.
• Flexible connectivity — Dual Neutrik NL4 connectors plus screw terminals support series or parallel wiring.
• White architectural finish — Textured white DuraFlex blends into light-colored walls and ceilings.
• Durable install-grade build — Multi-ply hardwood enclosure with a foam-backed steel grille.

Typical Applications

• House of worship — Discreet full-range coverage for speech and music in compact or under-balcony zones.
• Auditorium — Fill and delay coverage where a low-profile enclosure is required.
• Multi-purpose room — Flexible surface-mount audio for varied event configurations.
• Commercial meeting space — Even speech intelligibility for presentation and conferencing audio.

Technical Specifications

What's in the Box

• 2 x JBL AC15-WH Ultra-Compact 2-Way Loudspeaker (white)
• Product documentation

Mounting hardware such as the optional U-bracket is sold separately. This model is not offered in WRC or WRX weather-resistant finishes.

Frequently Asked Questions

Is the AC15-WH sold individually or as a pair?
This listing is for a matched pair — two AC15-WH loudspeakers ship together.

Does the AC15-WH require an external amplifier?
Yes. The AC15-WH is a passive loudspeaker and requires external amplification matched to its 16-ohm load and power rating.

Can it be mounted under a balcony or on a wall?
Yes. The compact enclosure includes M8 suspension and M6 OmniMount-type points and accepts an optional U-bracket for vertical or horizontal wall, column, or under-balcony mounting.

Is the white finish the same product as the black AC15?
Yes. The AC15-WH is acoustically and mechanically identical to the black AC15; only the textured finish differs. The model is not available with WRC or WRX coatings.

What warranty and support apply?
The AC15-WH carries JBL Professional's manufacturer warranty. For specification sheets, mounting accessories, and technical support, contact our team at sales@creationnetworks.net or browse the full JBL Professional collection.
