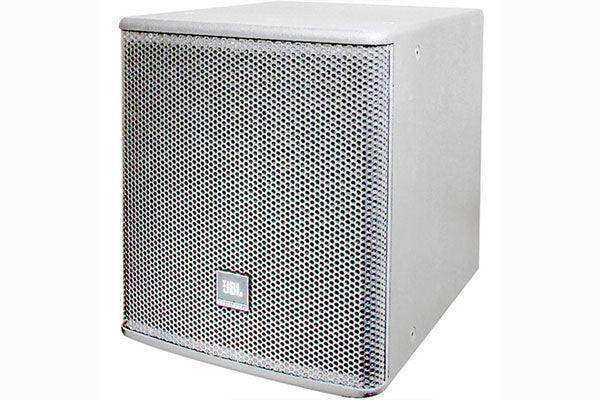

JBL AC115S-WH 15" High-Power Subwoofer System (White)

Product Overview

The JBL AC115S-WH 15-inch subwoofer is the white-finish version of JBL's passive, high-power install subwoofer, engineered to add deep, controlled low-frequency reinforcement to fixed commercial sound systems. Built around a single 385 mm (15 in) long-excursion driver in a vented, front-loaded enclosure, it extends system bandwidth down to 32 Hz for full-range music and speech reproduction. As part of JBL's AE Application Engineered Series, this commercial subwoofer for fixed installation is designed to pair with AE Series full-range loudspeakers and external amplification. Twelve M10 suspension points make it a practical suspendable subwoofer for flown or ground-stacked deployment, and the white finish blends into light-colored architectural interiors.

Product Description

The JBL AC115S-WH 15-inch subwoofer uses one 385 mm (15 in) driver with a 75 mm (3 in) voice coil in a vented, front-loaded configuration that delivers high output with low power compression. Rated at 400 W continuous (1600 W peak, IEC) into an 8-ohm nominal load, this passive front-loaded subwoofer reaches a maximum SPL of 120 dB (126 dB peak) and reproduces a frequency range of 32 Hz to 250 Hz, making it well suited to bass extension for speech and music in commercial venues. The 18 mm multi-ply hardwood enclosure carries dual Neutrik NL4MP connectors plus covered barrier-strip terminals for flexible wiring, and a powder-coated perforated-steel grille with acoustically transparent foam backing protects the driver. As an AE Series subwoofer, it integrates cleanly with JBL AE full-range models and Crown or comparable amplifiers for a complete installed system. Twelve M10 threaded suspension points support rigging, and the larger 18-inch JBL AC118S-WH subwoofer is available where greater output and lower extension are required.

Key Features

• 15-inch long-excursion driver — A 385 mm woofer with a 75 mm (3 in) voice coil reproduces deep low frequencies with minimal power compression.
• Vented, front-loaded enclosure — A large port supports high output and efficient low-frequency reinforcement down to 32 Hz.
• High power handling — 400 W continuous, 800 W program, and 1600 W peak (IEC) provide headroom for demanding program material.
• 120 dB maximum SPL — 120 dB (126 dB peak) at 1 m fills large commercial spaces with controlled low end.
• Flexible connectivity — Dual Neutrik NL4MP connectors plus covered barrier-strip terminals simplify daisy-chaining and fixed wiring.
• 12 x M10 suspension points — Multiple threaded attachment points allow flown or stacked installation with appropriate hardware.
• White architectural finish — Textured white paint blends into light-colored ceilings and walls in finished interiors.
• Protective steel grille — Powder-coated 1.5 mm perforated steel with acoustically transparent foam backing shields the driver.

Typical Applications

• House of worship — Low-frequency reinforcement for music and spoken word in mid-to-large rooms.
• Auditorium — Bass extension for full-range program in performance and assembly spaces.
• Multi-purpose room — Flexible flown or stacked bass support for varied event types.
• Commercial meeting space — Added low-end headroom for AV playback and presentation audio.

Technical Specifications

What's in the Box

• 1 x JBL AC115S-WH 15" High-Power Subwoofer System (white)
• Product documentation

Suspension and bracket hardware (such as the JBL MTU-28 U-bracket) are sold separately.

Frequently Asked Questions

Does the AC115S-WH require an external amplifier?
Yes. The AC115S-WH is a passive subwoofer and requires external amplification. JBL recommends Crown or comparable amplifiers matched to its 8-ohm load and power rating.

What full-range loudspeakers does it pair with?
It is designed to integrate with JBL AE Series full-range models for a tonally matched system. A processor or amplifier with crossover capability should be used to set an appropriate low-pass point.

Can the AC115S-WH be flown or suspended?
Yes. The enclosure includes 12 x M10 threaded suspension points for flown or stacked installation. Use JBL-approved rigging hardware and follow a qualified rigging plan.

Is the white finish the same product as the black AC115S?
Yes. The AC115S-WH is acoustically and mechanically identical to the black AC115S; only the textured paint finish differs. WRC and WRX weather-resistant finishes are not offered.

What warranty and support apply?
The AC115S-WH carries JBL Professional's manufacturer warranty. For specification sheets, rigging documentation, and technical support, contact our team at sales@creationnetworks.net or browse the full JBL Professional collection.
